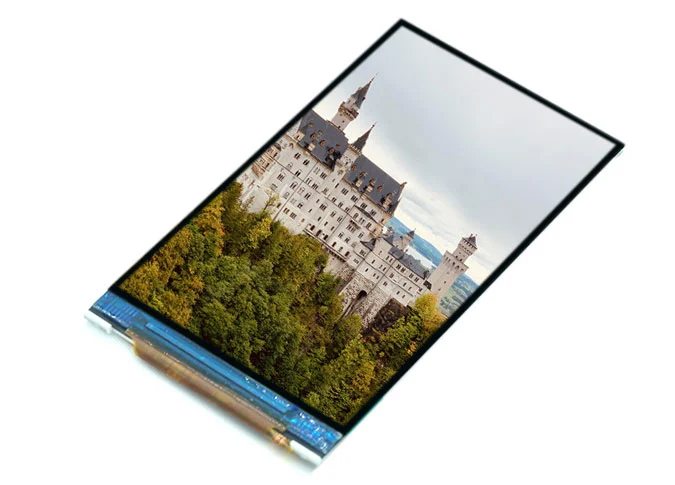

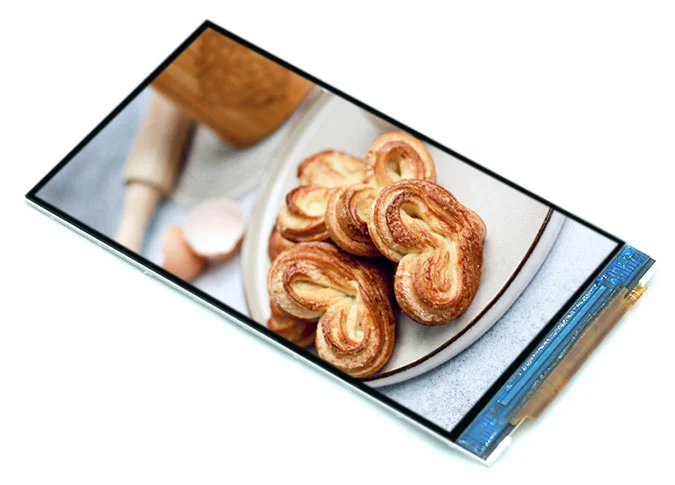

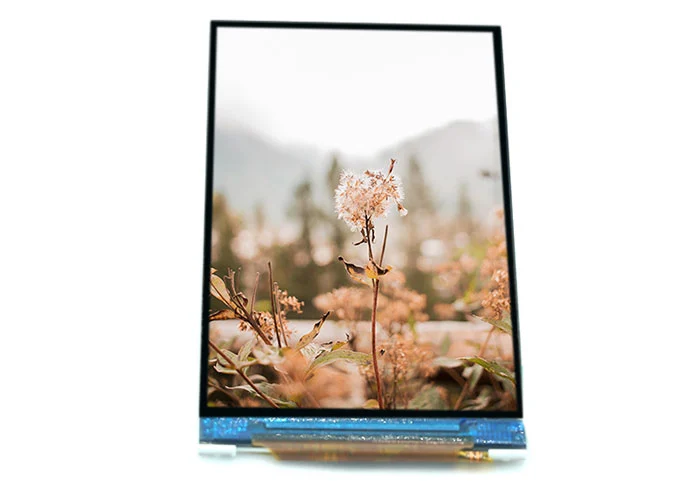

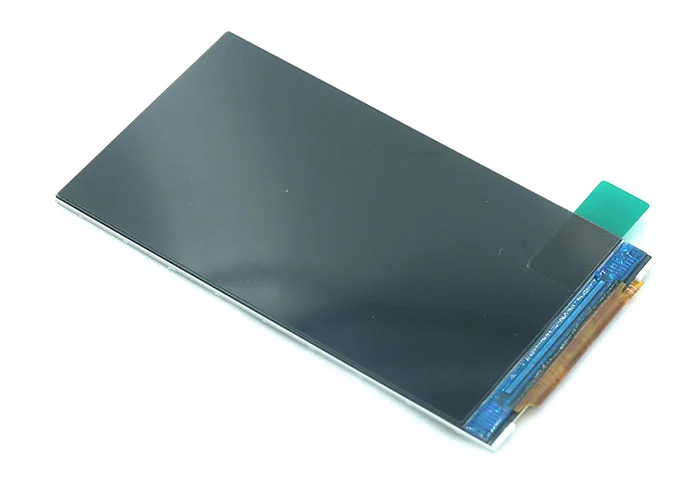

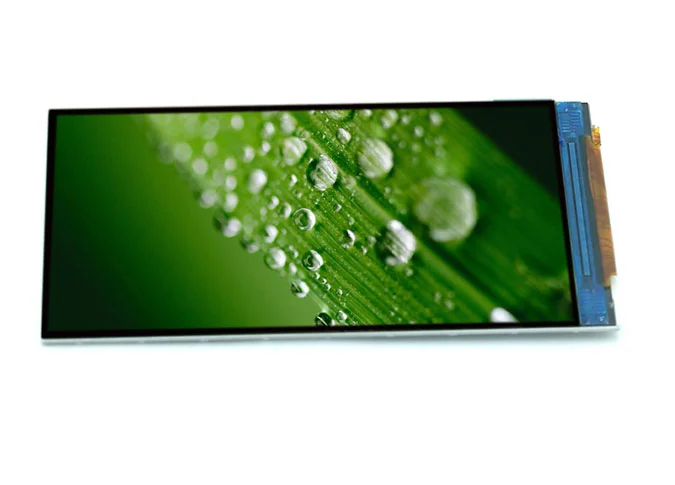

Z30043 3 Zoll LCD-Display MIPI-Schnitts telle ST7701S Treiber IC 350 Nits 480*854 QVGA

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V）

pixels

3

Pixel Pitch

26 (H) × 78 (V）

um

4

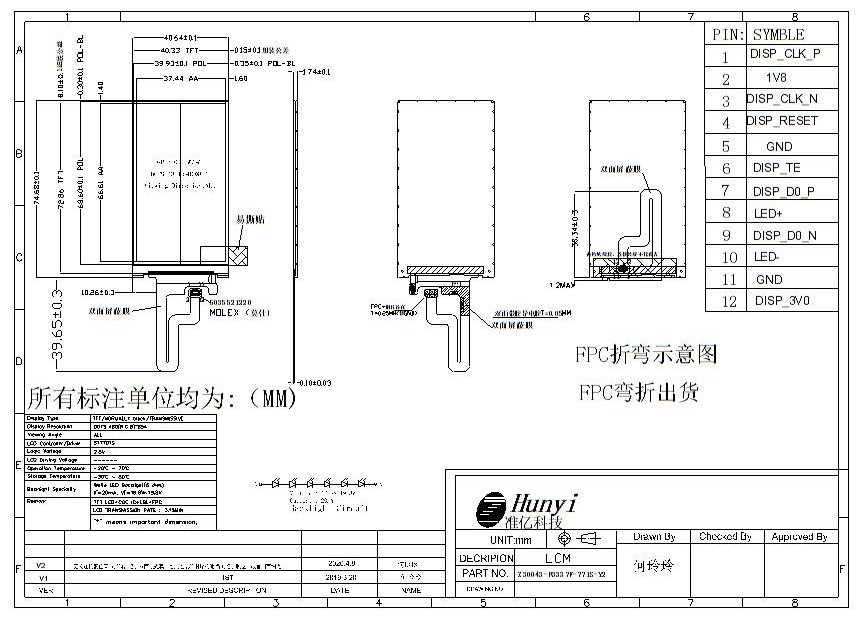

LCM Outline Dimension

(Without FPC）

40.64 (W) × 74.68 (H) ×1.74 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 0.4 (T)

mm

6

LCD Active Area

37.44 (W) × 66.61 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

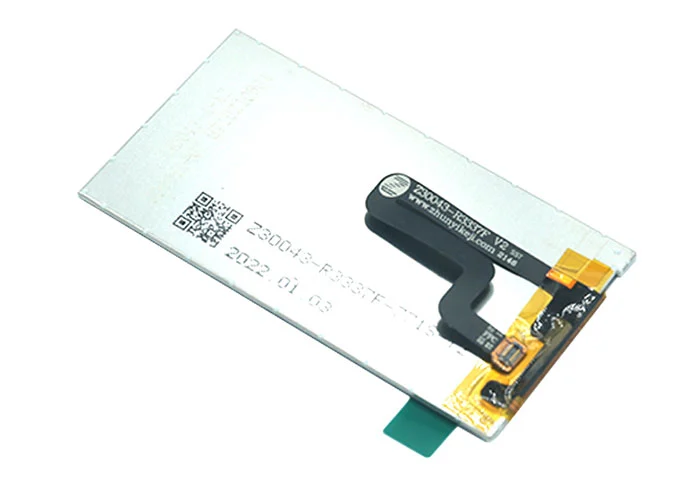

FPC Version

Z30043-R3337F V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

340

nit

20

Weight

0.011

kg

1

DISP_CLK_P

Positive MIPI differential CLOCK input

2

1V8

POWER SUPPLY (1.8V）

3

DISP_CLK_N

Negative MIPI differential CLOCK input

4

DISP_RESET

LCM RESET PIN

5

GND

Ground

6

DISP_TE

Tearing Effect PIN

7

DISP_D0_P

Positive MIPI differential data input

8

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

9

DISP_D0_N

Negative MIPI differential data input

10

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

11

GND

Ground

12

DISP_3V0

POWER SUPPLY (3V）

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
