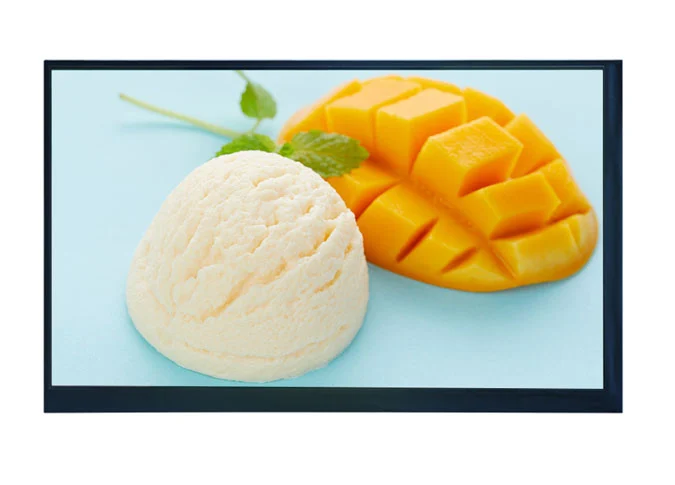

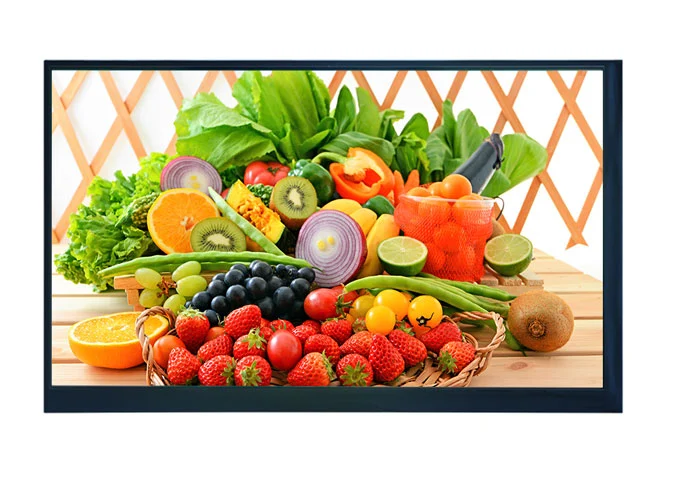

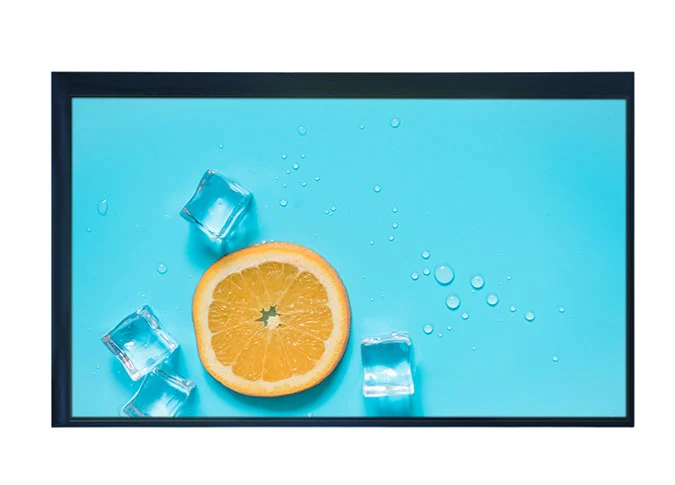

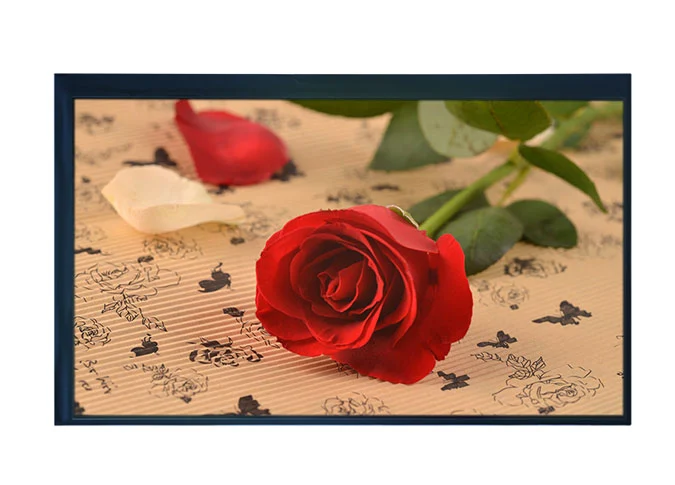

Z10100-P45 10,1 Zoll 1920*1200 LCD-Display 1000Nits LVDS-Schnitts telle Unterstützung HDMI

1

Display Size (Diagonal)

10.1

inch

2

Display Resolution

1920 (H) × RGB × 1200 (V）

pixels

3

Pixel Pitch

37.64 (H)× 112.92 (V）

um

4

LCM Outline Dimension

(Without FPC）

228.5 (W) ×149 (H) ×4.55 (T)

mm

5

LCD Outline Dimension

218.81 (W) × 138.5 (H) × 0.4 (T)

mm

6

CG Outline Dimension

(Without FPC）

240.35 (W) ×157.87 (H) ×6.4 (T)

mm

7

LCD Active Area

216.81 (W) ×135.5 (H）

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.85%; Min: 3.61%; Max: 4.08%

-

13

LCD Contrast Ratio

Typ.: 900; Min: 700%

-

14

Interface

LVDS

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/8 Series 5 Parallel (40 lights in total)

-

18

Luminance

1000

nit

1-2

VLEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3-4

VLEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

5

NC

No Connection

6

GND

Ground

7

ELV3P

EVEN LVDS Positive data signal (+)

8

ELV3N

EVEN LVDS Negative data signal (-)

9

GND

Ground

10

ELV2P

EVEN LVDS Positive data signal (+)

11

ELV2N

EVEN LVDS Negative data signal (-)

12

GND

Ground

13

ELVCLKP

EVEN LVDS Positive CLK signal (+)

14

ELVCLKN

EVEN LVDS Negative CLK signal (-)

15

GND

Ground

16

ELV1P

EVEN LVDS Positive data signal (+)

17

ELV1N

EVEN LVDS Negative data signal (-)

18

GND

Ground

19

ELV0P

EVEN LVDS Positive data signal (+)

20

ELV0N

EVEN LVDS Negative data signal (-)

21

GND

Ground

22

OLV3P

Odd LVDS Positive data signal (+)

23

OLV3N

Odd LVDS Negative data signal (-)

24

GND

Ground

25

OLV2P

Odd LVDS Positive data signal (+)

26

OLV2N

Odd LVDS Negative data signal (-)

27

GND

Ground

28

OLVCLKP

Odd LVDS Positive CLK signal (+)

29

OLVCLKN

Odd LVDS Negative CLK signal (-)

30

GND

Ground

31

OLV1P

Odd LVDS Positive data signal (+)

32

OLV1N

Odd LVDS Negative data signal (-)

33

GND

Ground

34

OLV0P

Odd LVDS Positive data signal (+)

35

OLV0N

Odd LVDS Negative data signal (-)

36

GND

Ground

37

I2C_SDA

Reserved for LCD manufacturer's use, not connection

38

I2C_SCL

Reserved for LCD manufacturer's use, not connection

39

VDD_OTP

Reserved for LCD manufacturer's use, not connection

40

EEPEN

No Connection

41-45

VDDIN

Power supply VDDIN=3.3V (Typ.)

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
