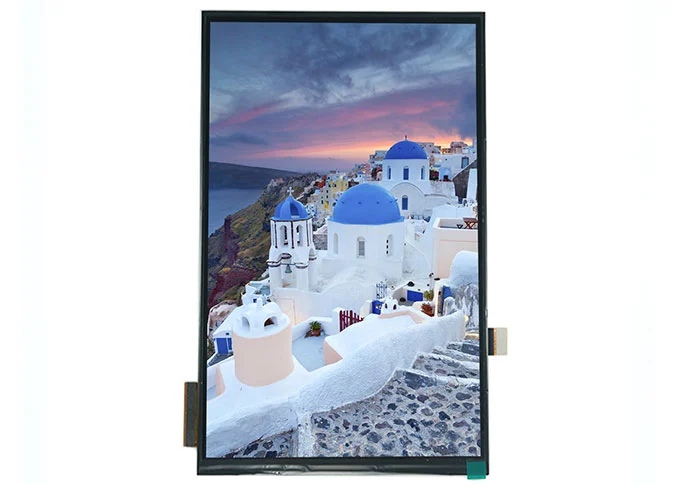

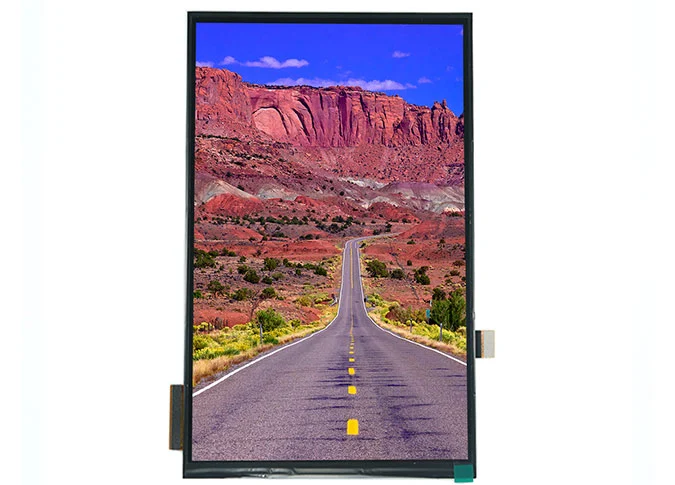

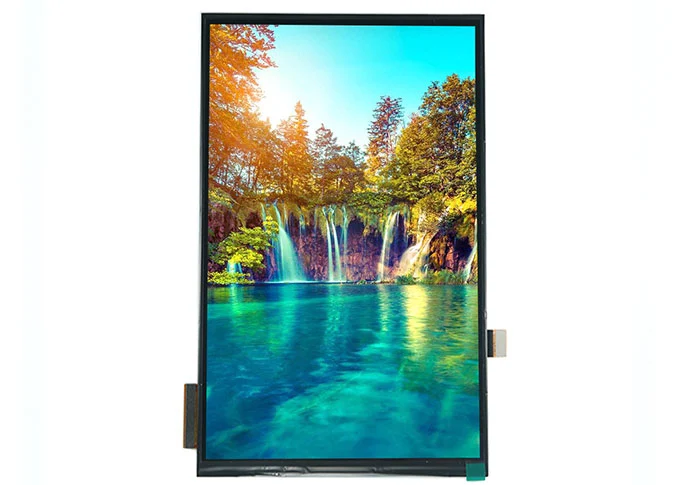

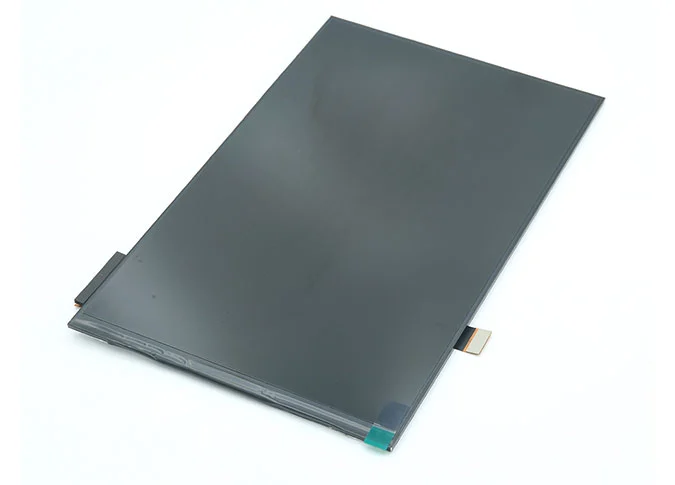

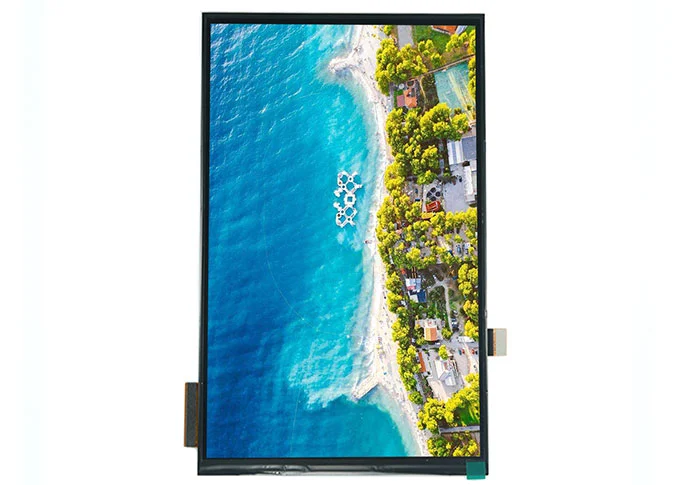

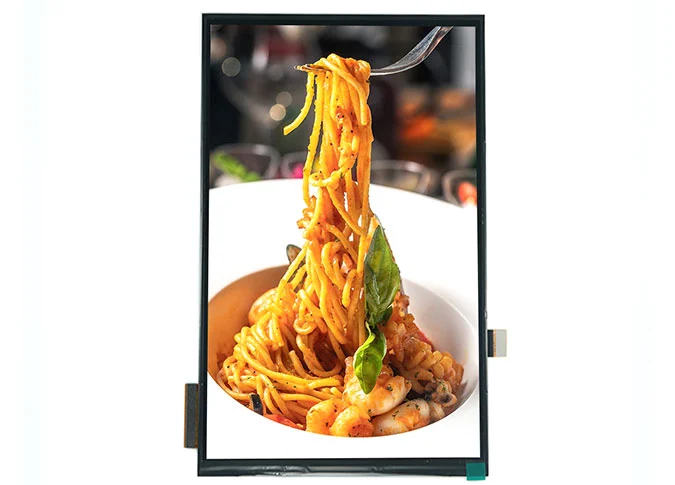

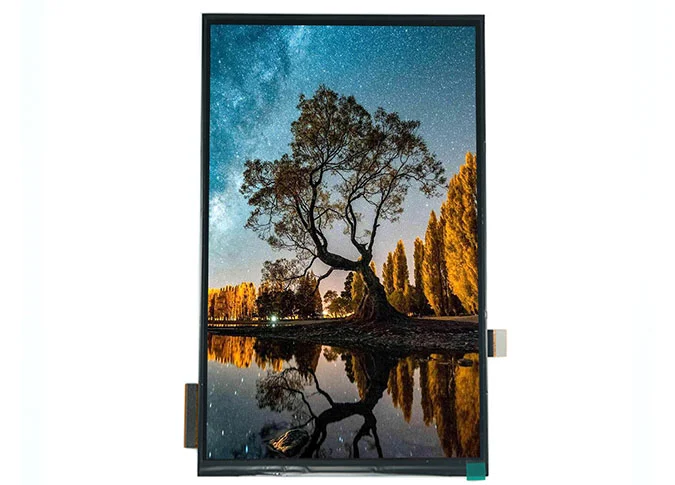

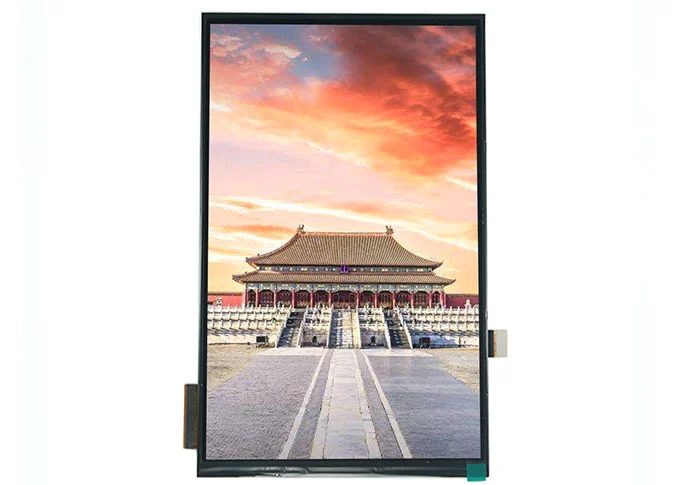

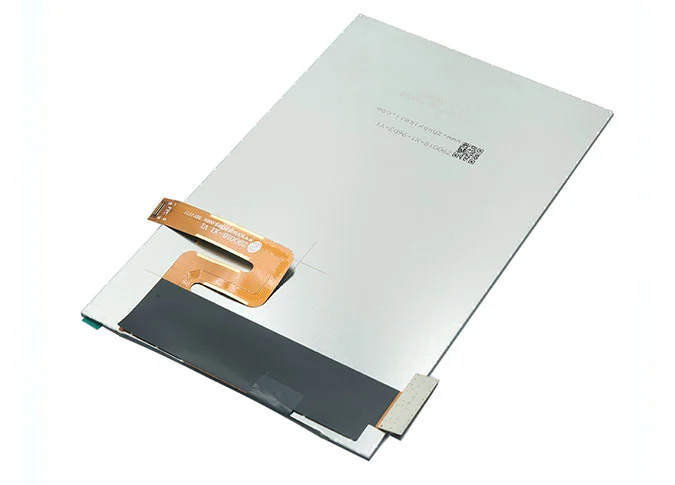

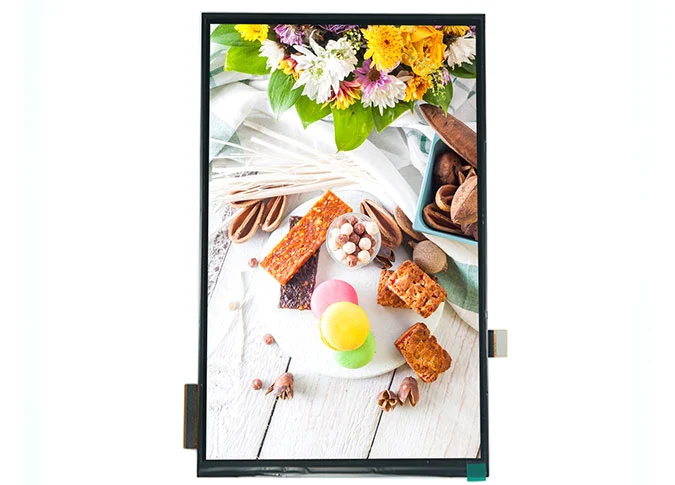

Z90018 Hoch auflösende 9 Zoll 800*1280 LCD-Anzeige TFT 30PIN MIPI-Schnitts telle

1

Display Size (Diagonal)

9.0

inch

2

Display Resolution

800 (H) × RGB × 1280 (V）

pixels

3

Pixel Pitch

149.1 (H) × 149.1 (V）

um

4

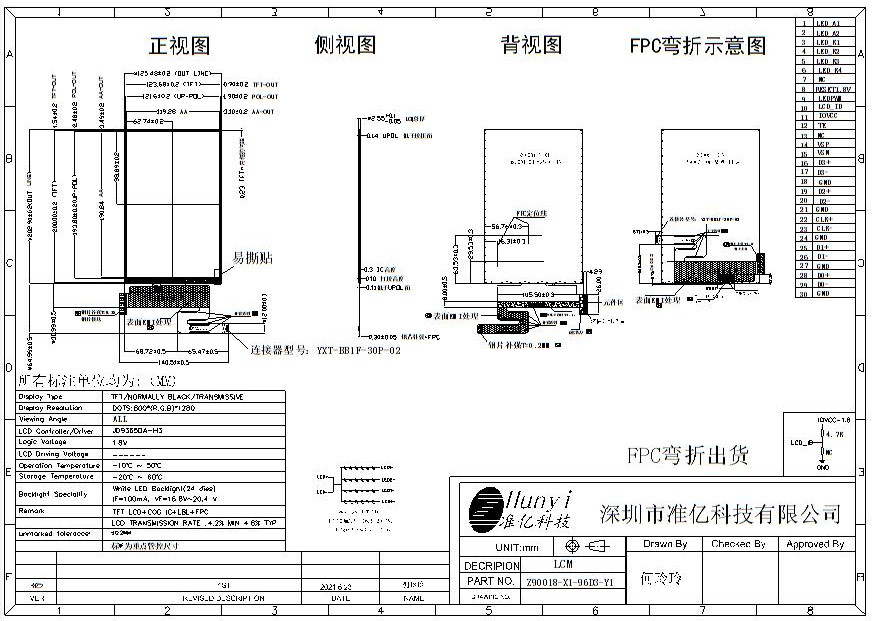

LCM Outline Dimension

(Without FPC）

125.48 (W) × 202.90 (H) × 2.55 (T)

mm

5

LCD Outline Dimension

123.68 (W) × 200 (H) × 0.8 (T)

mm

6

LCD Active Area

119.28 (W) × 190.84 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9365DA-H3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.8% Min: 4.2%

-

13

LCD Contrast Ratio

Typ.: 1000

-

14

FPC Version

Z90018-X1 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-10°C~ 75°C

-

17

Storage Temperature

-20°C~ 60°C

-

18

Backlight Arrangement

LED/6 Series 4 Parallel (24 lights in total)

-

19

Luminance

340

nit

20

Weight

0.130

kg

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3-6

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

7

NC

No Connection

8

RESET

LCM RESET PIN (1.8V)

9

LEDPWM

Backlight on/off control pin

10

LCD_ID

LCM ID PIN

11

IOVCC

I/O POWER SUPPLY (1.8V）

12

TE

Tearing Effect PIN

13

NC

No Connection

14

VSP

Positive Voltage input

15

VSN

Negative Voltage input

16

D3P

Positive MIPI differential data input

17

D3N

Negative MIPI differential data input

18

GND

Ground

19

D2P

Positive MIPI differential data input

20

D2N

Negative MIPI differential data input

21

GND

Ground

22

CLKP

Positive MIPI differential CLOCK input

23

CLKN

Negative MIPI differential CLOCK input

24

GND

Ground

25

D1P

Positive MIPI differential data input

26

D1N

Negative MIPI differential data input

27

GND

Ground

28

D0P

Positive MIPI differential data input

29

D0N

Negative MIPI differential data input

30

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
