Größe: 8,8"
Auflösung: 480*1280
LCD-Schnitts telle: mipi
Treiber IC:OTA7290B
Ansicht winkel: IPS
Versorgungs typ: Fabrik/Hersteller
Zertifizierung: ISO9001,IATF16949,ROHS,REACH

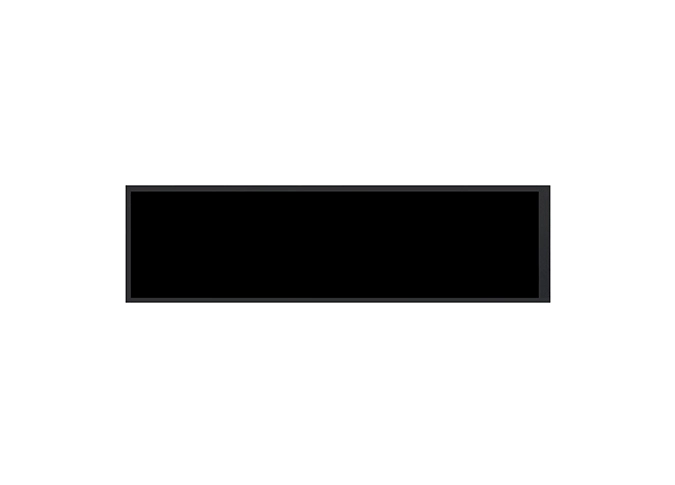

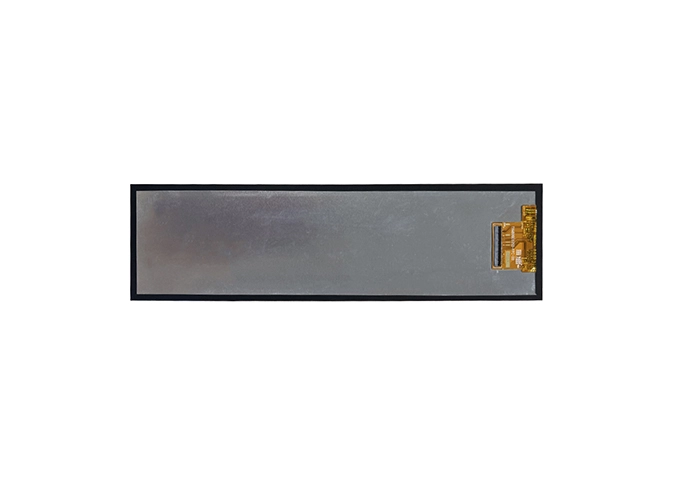

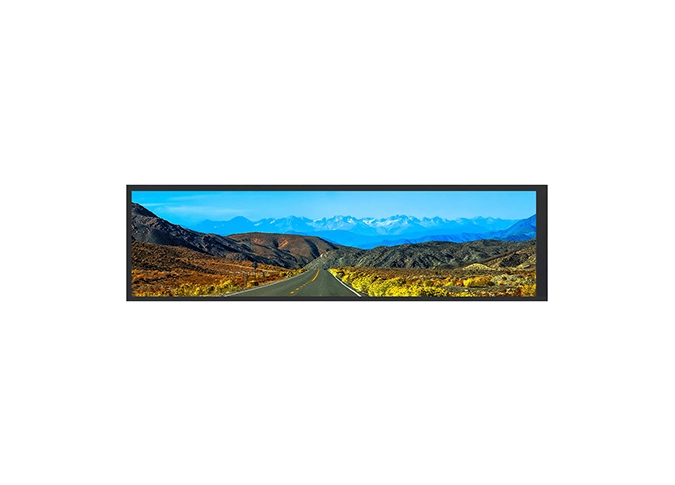

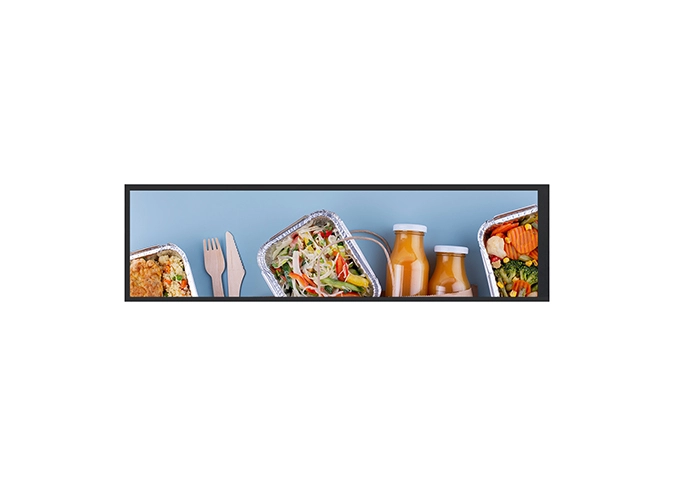

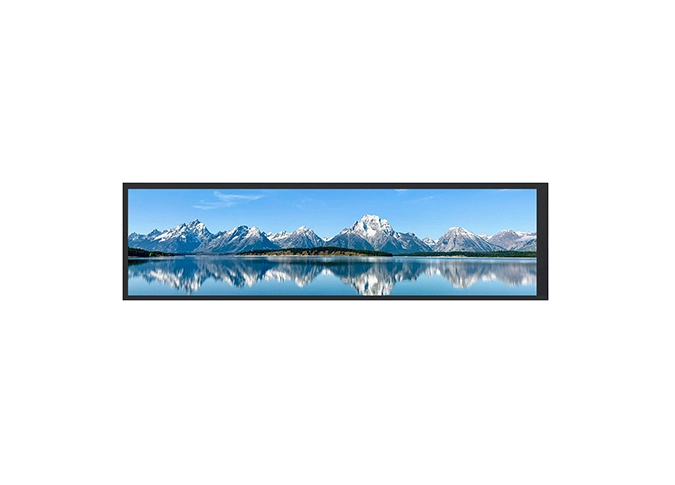

Z88001 ist eine farbaktive Matrix-Dünnschicht transistor (TFT) Flüssig kristall anzeige (LCD) mit einer Auflösung von 480*1280. Die IPS-Technik (In-Plane Switching) macht dieses 8,8 "LCD-Modul einen größeren Blickwinkel. Dieses a-Si TFT-LCD wird mit einer mipi-Schnitts telle geliefert. Der eingebaute OTA7290B-Treiver-IC des Displays.
Wenn Sie spezielle Anforderungen haben, wie Treiber IC, Schnitts telle, FPC, Touch panel, Hintergrund beleuchtung usw., können wir für Sie anpassen.
Unsere Fabrik führen ISO 9001:2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Display bestanden ROHS, REACH-Zertifizierung
Der 8 "ultra breite LCD-Bildschirm ist weit verbreitet auf digitaler Beschilderung, Informations anzeige, Menü tafel, Armaturen brett, Konferenz raum, Spiele, Werbung, Kiosk, Audio, VR, AR,POS, medizin, HMI, Navigation, Bildung etc
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 8.8 | inch |
2 | Display Resolution | 480(H) × RGB × 1920 (V) | pixels |
3 | Pixel Pitch | 114(H) × 114 (V) | um |
4 | LCM Outline Dimension (Without FPC) | 64. 10 (W) ×231.20 (H) ×4.70 (T) | mm |
5 | LCD Active Area | 54.72 (W) ×218.88 (H) | mm |
6 | View Direction (Gray Inversion) | FULL VIEW | - |
7 | Driver IC | OTA7290B | - |
8 | Pixel Arrangement | RGB-Stripe | - |
9 | Display Mode | Normal Black | - |
10 | Pixel driving Element | a-Si TFT | - |
11 | LCD Transmittance | Typ.: 4.2% | - |
12 | LCD Contrast Ratio | Typ.: 800 Min:640 | - |
13 | FPC Version | Z88001 V1 | - |
14 | Interface | MIPI | - |
15 | Operating Temperature | -20°C~ 70°C | - |
16 | Storage Temperature | -30°C~ 80°C | - |
17 | Backlight Arrangement | LED/5 Series 2 Parallel (10 lights in total) | - |
18 | Luminance | Typ.:550 | nit |
19 | Weight | / |
|
| PIN NO. | PIN DEF. | FUNCTION DESC. |
| 1 | GND | Power Ground |
| 2 | NC | NC |
| 3~4 | LEDA | Power supply for backlight anode input terminal. |
| 5 | NC | NC |
| 6~7 | LEDK | Power supply for backlight cathode input terminal. |
| 8 | NC | NC |
| 9 | GND | Power Ground |
| 10 | NC | NC |
| 11 | AVDD | Power supply for Analog Circuit |
| 12 | NC | NC |
| 13 | VGH | Power supply for Positive Power for TFT |
| 14 | NC | NC |
| 15 | VGL | Power supply for Negative Power for TFT |
| 16 | NC | NC |
| 17 | GND | Power Ground |
| 18 | VCOM | Power supply for Common voltage. |
| 19~20 | GND | Power Ground |
| 21 | RESET | Reset pin. Setting either pin low initializes the LSI |
| 22 | VCI | power supply for DC/DC circuit(2.7~3.6V) |
| 23 | STBYB | Standby mode |
| 24 | TP_SYNC | Sync signal for touch panel |
| 25 | GND | Power Ground |
| 26 | D0P | MIPI-DSI Data differential signal input pins |
| 27 | D0N | MIPI-DSI Data differential signal input pins |
| 28 | GND | Power Ground |
| 29 | D1P | MIPI-DSI Data differential signal input pins |
| 30 | D1N | MIPI-DSI Data differential signal input pins |
| 31 | GND | Power Ground |
| 32 | CLKP | MIPI-DSI CLOCK differential signal input pins |
| 33 | CLKN | MIPI-DSI CLOCK differential signal input pins |
| 34 | GND | Power Ground |
| 35 | D2P | MIPI-DSI Data differential signal input pins |
| 36 | D2N | MIPI-DSI Data differential signal input pins |
| 37 | GND | Power Ground |
| 38 | D3P | MIPI-DSI Data differential signal input pins |
| 39 | D3N | MIPI-DSI Data differential signal input pins |
| 40 | GND | Power Ground |
| RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
Zhunyi Technologie achtet auf die Qualität und den Service. Willkommen, um uns zu besuchen und Hände für eine erfolgreiche Zukunft zu verbinden.
