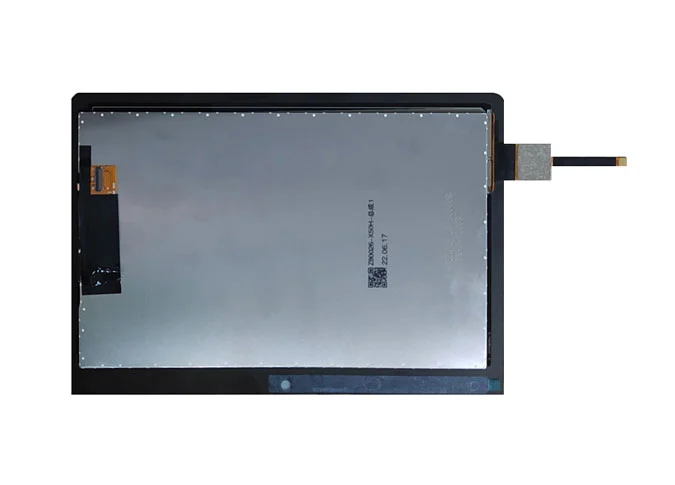

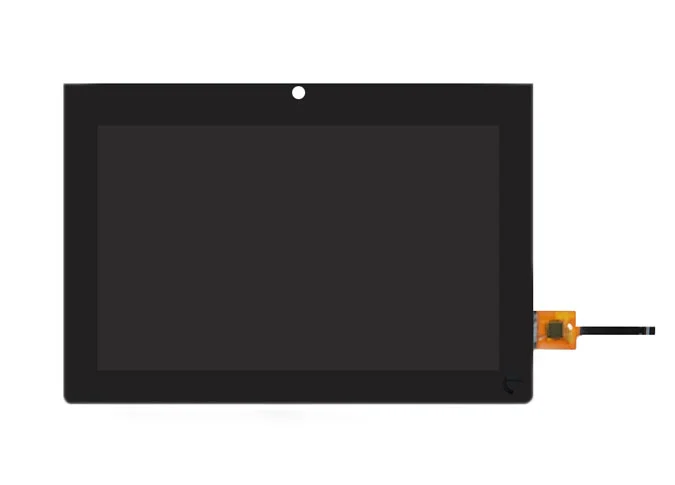

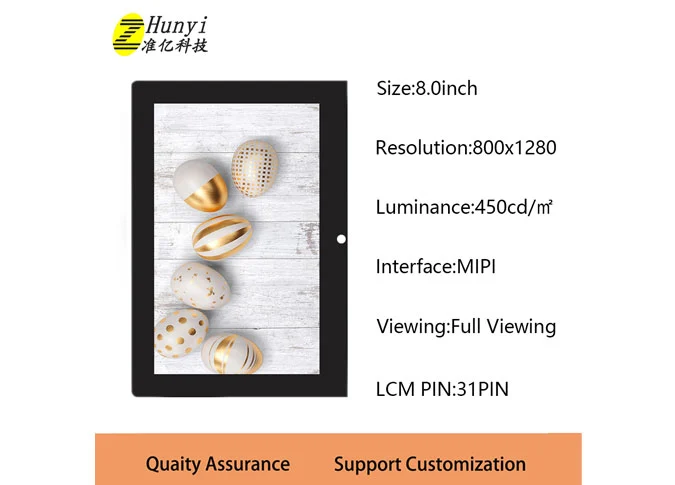

Größe: 8 Zoll
Auflösung: 800*1280
LCD-Schnitts telle: MIPI
Touch-Schnitts telle: IIC
Touch Panel: Kapazitiv
Fahrer IC: ILI9881C-04
Touch-Controller: GT911
Ansicht winkel: IPS
Versorgungs typ: Fabrik/Hersteller
Zertifizierung: ISO9001, IATF16949, ROHS, REACH
Wenn Sie spezielle Anforderungen haben, wie Laufwerk IC, Schnitts telle, FPC, Touch panel, Hintergrund beleuchtung, Helligkeit, Farbe usw. alsLCD-Bildschirm des chinesischen Unternehmens, Wir können auch für Sie anpassen.
Als einLCD-Touchscreen-Hersteller, Unsere Fabrik führen ISO 9001: 2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Display bestanden ROHS, REACH-Zertifizierung.
Dieser 8 Zoll TouchQuadratischer TFT-LCD-BildschirmIst weit verbreitet in medizinischen, visuellen Türklingel, Verkauf, Lernen Mechine, Ventilator, Oszilloskop, Küche, Haushalts gerät, Smart Home, Industrie, Handheld, Outdoor, E-Bike, Fahrzeug, Projektor, 3D-Drucker, Audio gerät, Roboter, elektrische Waage, Navigation, Armaturen brett, Aufzugs werbung, Roboter usw.

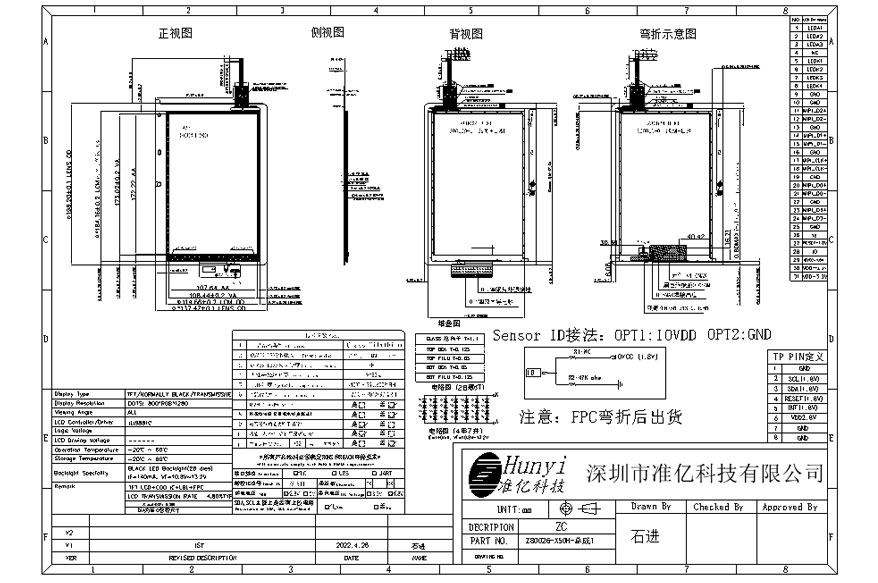

No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 8.0 | inch |
2 | Display Resolution | 800 (H) × RGB × 1280 (V） | pixels |
3 | Pixel Pitch | 44.85 (H）× 134.55 (V） | um |

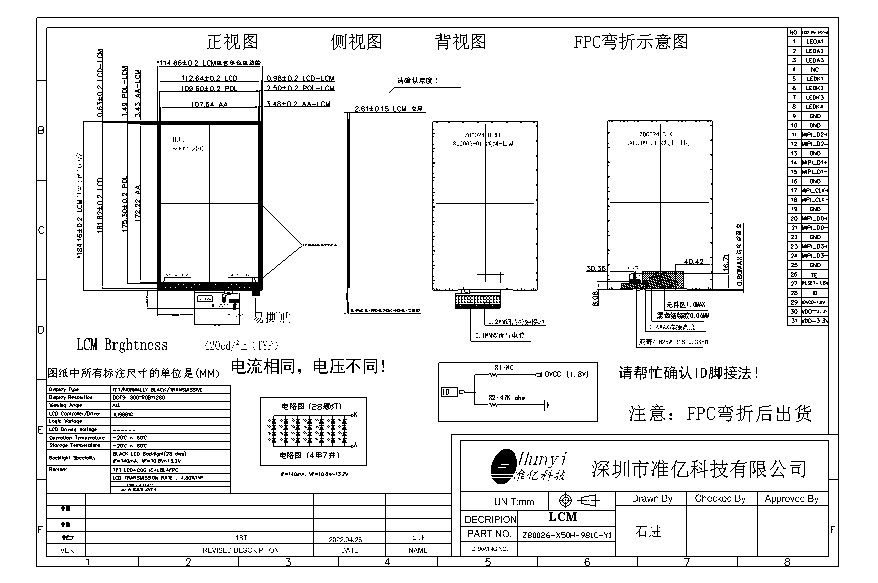

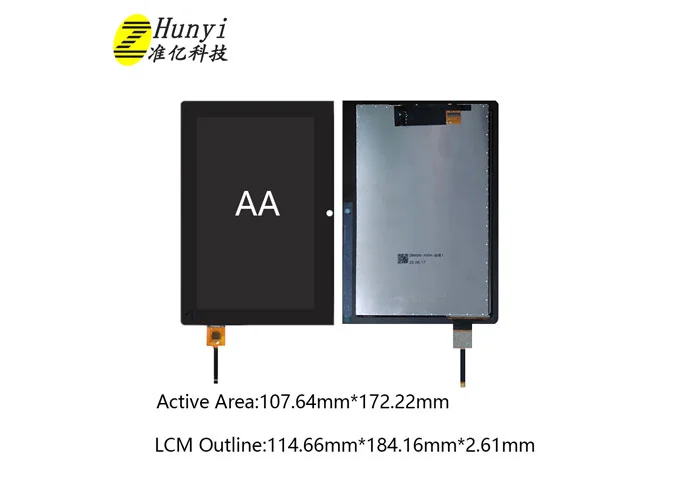

4 | LCM Outline Dimension (Without FPC） | 114.66 (W) ×184.16 (H) × 2.61 (T) | mm |
5 | LCD Outline Dimension | 112.64 (W) × 181.82 (H) × 0.8 (T) | mm |
6 | LCD Active Area | 107.64 (W）× 172.22 (H） | mm |
7 | TLCM Outline Dimension | 137.47 (W) × 198.20 (H) × 4.66 (T) | mm |
8 | View Direction (Gray Inversion) | FULL VIEW | - |
9 | Driver IC | ILI9881C-04 | - |
10 | Pixel Arrangement | RGB-Stripe | - |
11 | Display Mode | Normal Black | - |
12 | Pixel driving Element | a-Si TFT | - |
13 | LCD Transmittance | Typ.: 4.8% | - |
14 | LCD Contrast Ratio | Typ.: 1200 Min: 900 | - |
15 | FPC Version | Z80026-X50H-V1 | - |
16 | Interface | MIPI | - |
17 | Operating Temperature | -20°C~ 60°C | - |
18 | Storage Temperature | -30°C~ 70°C | - |
19 | Backlight Arrangement | LED/4 Series 7 Parallel (28 lights in total) | - |
20 | Luminance | 450 | nit |
21 | Weight | 0.197 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1-3 | LEDA | POWER SUPPLY+ FOR BACKLIGHT ANODE |
4 | NC | No Connection |
5-8 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
9-10 | GND | Ground |
11 | D2P | Positive MIPI differential data input |
12 | D2N | Negative MIPI differential data input |
13 | GND | Ground |
14 | D1P | Positive MIPI differential data input |
15 | D1N | Negative MIPI differential data input |
16 | GND | Ground |
17 | CLKP | Positive MIPI differential CLOCK input |
18 | CLKN | Negative MIPI differential CLOCK input |
19 | GND | Ground |
20 | D0P | Positive MIPI differential data input |
21 | D0N | Negative MIPI differential data input |
22 | GND | Ground |
23 | D3P | Positive MIPI differential data input |
24 | D3N | Negative MIPI differential data input |
25 | GND | Ground |
26 | TE | Tearing EFFECT PIN |
27 | RESET | LCM RESET PIN |
28 | ID | LCM ID PIN |
29 | IOVCC | I/O POWER SUPPLY（1.8V） |
30-31 | VDD | POWER SUPPLY（3.3V） |
RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on. | ||
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | GND | Ground |
2 | TP_SCL | TP I2C clock (SCL) clock (SCLK)(1.8V) |
3 | TP_SDA | TP I2C data (SDA) data input (MOSI)(1.8V) |
4 | TP_RESET | TP Reset PIN (1.8V) |
5 | TP_INT | TP Interrupt PIN (1.8V) |
6 | TP_VDD | TP Input Power voltage (2.8V) |
7-8 | GND | Ground |
3.1 LCM
3.2 TLCM
