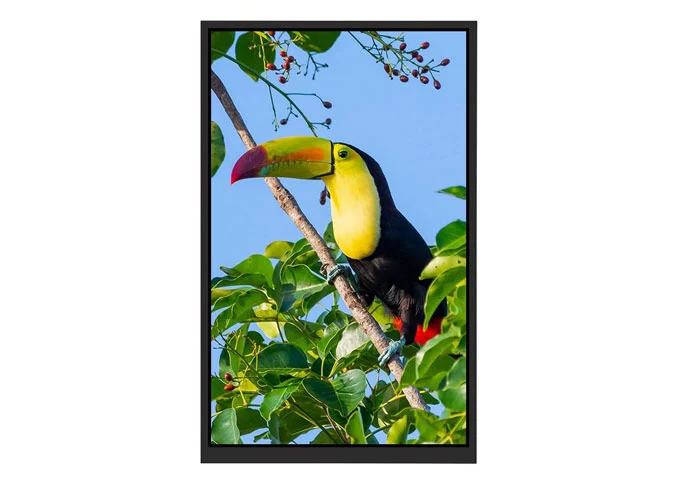

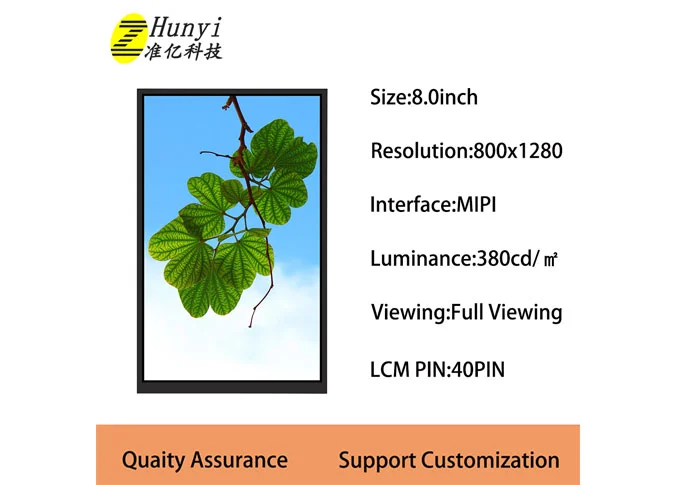

Z80008-SPM288 8 Zoll 800*1280 IPS LCD-Modul Voll ansicht MIPI-Schnitts telle 40PIN

  • Größe: 8 Zoll

  • Auflösung: 800*1280

  • Aktiver Bereich: 107,64*172,72mm

  • Schnitts telle: MIPI

  • Ansicht winkel: IPS

  • Helligkeit: 380 cd/m²

  • Touch Panel: Unterstützung CTP/RTP

  • Versorgungs typ: Fabrik/Hersteller

  • Zertifizierung: ISO9001,IATF16949,ROHS,REACH

8 inch lcd
8 inch lcd
8 inch lcd panel
8 inch lcd screen
8 inch tft
8 lcd
8 lcd panel
8 lcd screen
8 lcd tft
8 tft
8 tft lcd
8 tft screen
1280x800 ips
1280x800 lcd
1280x800 tft
lcd 1280x800
tft 1280x800
display 1280x800
1280x800 ips display
1280x800 lcd panel
8 inch lcd module
8 inch ips lcd module
8 inch ips lcd
8 inch 8001280 lcd
8 inch 800 1280 lcd module
8 lcd module
8 tft screen

Übersicht über Z80008-SPM288 8 Zoll 800*1280 IPS LCD-Modul Full View MIPI-Schnitts telle 40PIN

1

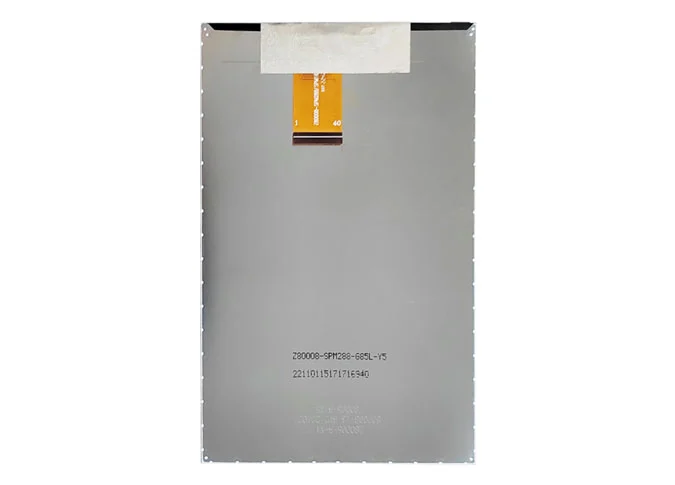

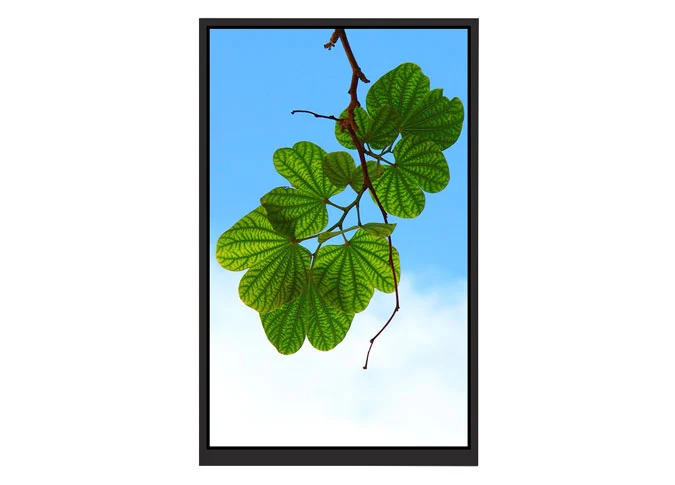

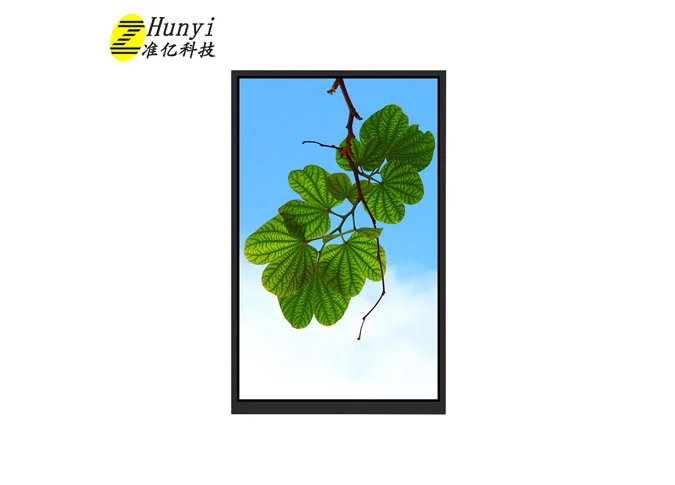

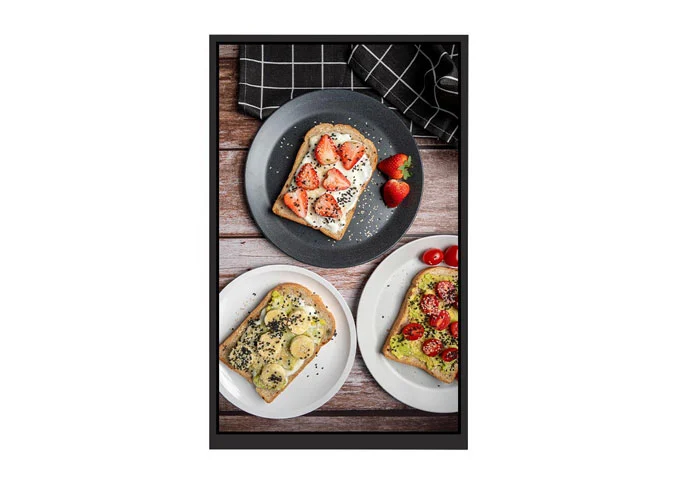

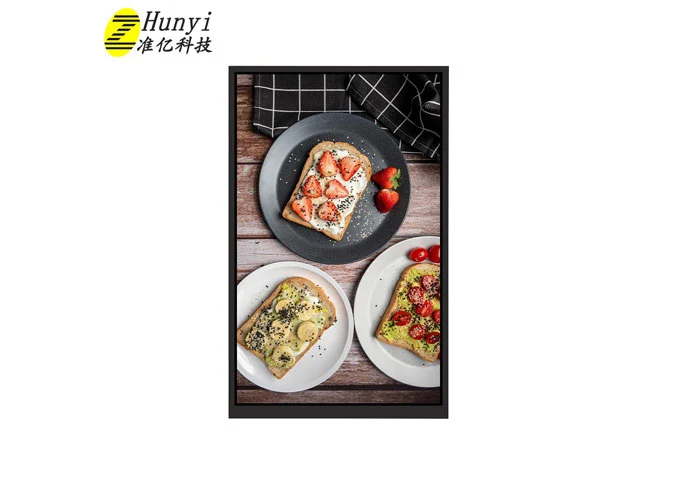

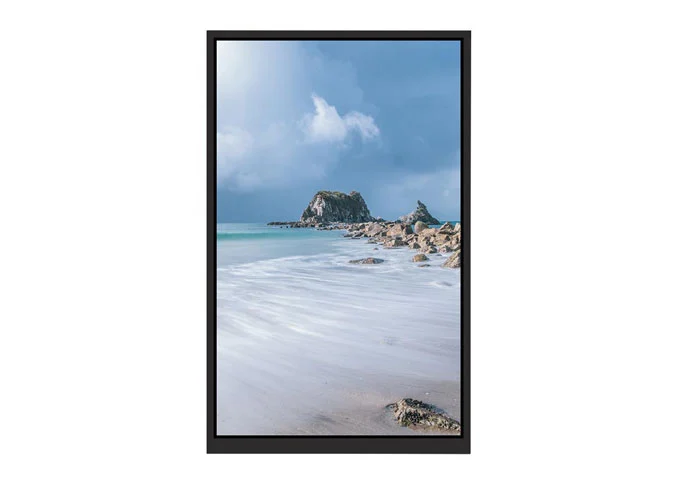

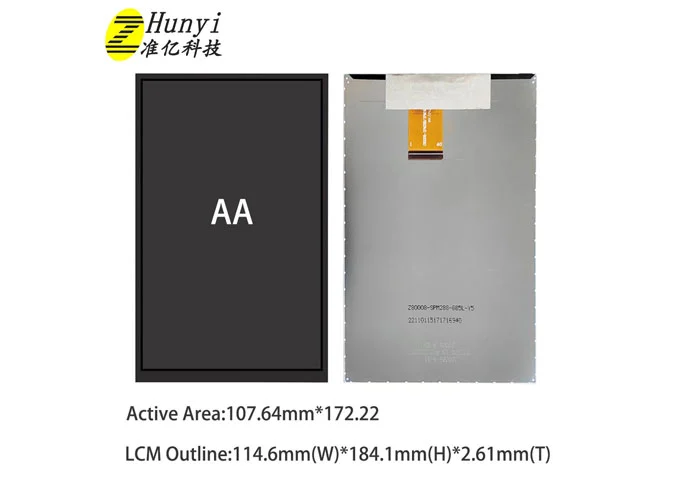

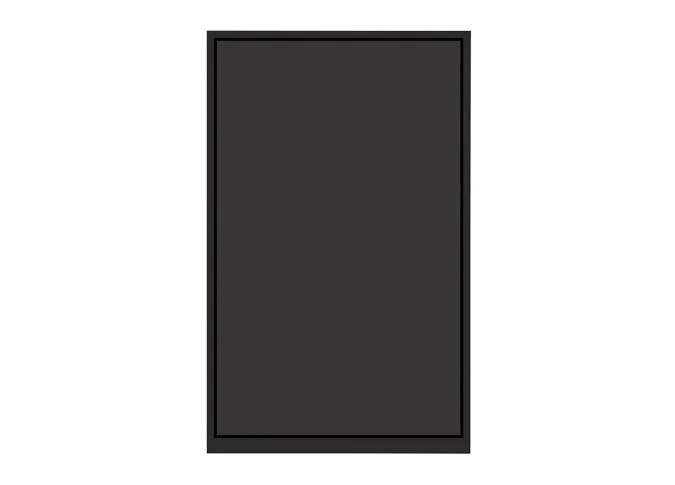

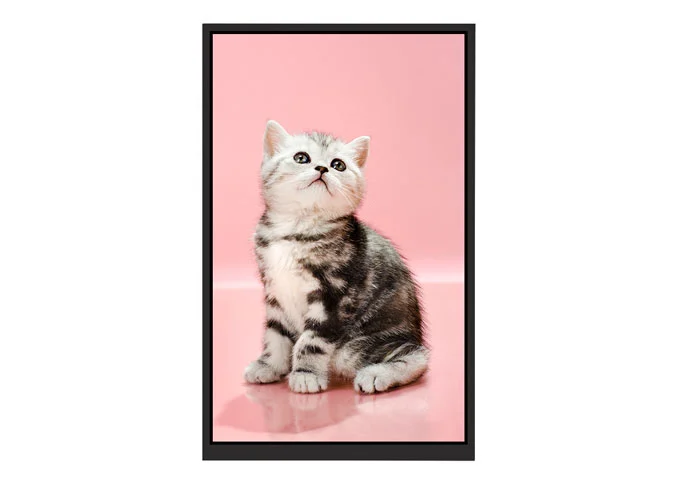

Z80008 ist eine farbige aktive Matrix-Dünnschicht transistor (TFT) Flüssig kristall anzeige (LCD) mit einer Auflösung von 800*1280. Durch die IPS-Technik (In-Plane Switching) hat dieses 8 "LCD-Modul einen größeren Blickwinkel. Dieses LCD-Display ist eingebauter GH8555BL Treiber IC. Dieses a-SiQuadratisches TFT-LCD-ModulKommen mit MIPI-Schnitts telle, 380cd/m² Helligkeit.

2

Wenn Sie spezielle Anforderungen haben, wie Laufwerk IC, Schnitts telle, FPC, Touch panel, Helligkeit, Farbe, Hintergrund beleuchtung, Touch panel usw., alsCustom LCD-Display-Hersteller China, Wir können auch für Sie anpassen.

3

Als ProfiLCD-Display-Modul Fabrik, Unsere Fabrik führen ISO 9001: 2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Display bestanden ROHS, REACH-Zertifizierung.

4

Der 8-Zoll-LCD-Bildschirm ist weit verbreitet in der medizinischen, visuellen Türklingel, Verkaufs automat, Lernmaschine, Ventilator, Oszilloskop, Küche, Haushalts gerät, QRcode-Scanner, Smart Home, Industrie, Handheld, Outdoor, HMI, E-Bike, Fahrzeug, Projektor, 3D-Drucker, Audio gerät, Roboter, elektrische Waage, Navigation, Aufzugs werbung usw.

Specifications of 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN


No.

Item

Specification

Unit

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

800 (H) × RGB × 1280 (V)

pixels

3

Pixel Pitch

44.85 (H) × 134.55 (V)

um

4

LCM Outline Dimension

(Without FPC)

114.60 (W) × 184.10 (H) × 2.61 (T)

mm

5

LCD Outline Dimension

111.24 (W) × 180.52 (H) × 0.8 (T)

mm

6

LCD Active Area

107.64 (W) × 172.22 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GH8555BL

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.55% Min: 5.0%

-

13

LCD Contrast Ratio

Typ.: 1500 Min: 1200

-

14

FPC Version

Z80008-SPM288/SPM168H V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/4 Series 6 Parallel (24 lights in total)

-

19

Luminance

380

nit

20

Weight

0.105

kg


Interface Definition Description of 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN


PIN NO.

PIN DEF.

FUNCTION DESC.

1-3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4-7

NC

No Connection

8-10

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

11

GND

Ground

12

NC

No Connection

13

GND

Ground

14

D2P

Positive MIPI differential data input

15

D2N

Negative MIPI differential data input

16

GND

Ground

17

D1P

Positive MIPI differential data input

18

D1N

Negative MIPI differential data input

19

GND

Ground

20

TCP

Positive MIPI differential CLOCK input

21

TCN

Negative MIPI differential CLOCK input

22

GND

Ground

23

D0P

Positive MIPI differential data input

24

D0N

Negative MIPI differential data input

25

GND

Ground

26

D3P

Positive MIPI differential data input

27

D3N

Negative MIPI differential data input

28

GND

Ground

29

LCD_ID1

LCM ID PIN

30

LCD_RST

LCM RESET PIN

31

LCD_ID2

LCM ID PIN

32

IOVCC

I/O POWER SUPPLY (1.8V)

33-34

LCD_VCC

POWER SUPPLY

35

GND

Ground

36

NC

No Connection

37

GND

Ground

38

NC

No Connection

39

LCD_ID3

LCM ID PIN

40

NC

No Connection


Mechanical Drawing of 8 Inch 800*1280 IPS LCD Module Full View MIPI Interface 40PIN
