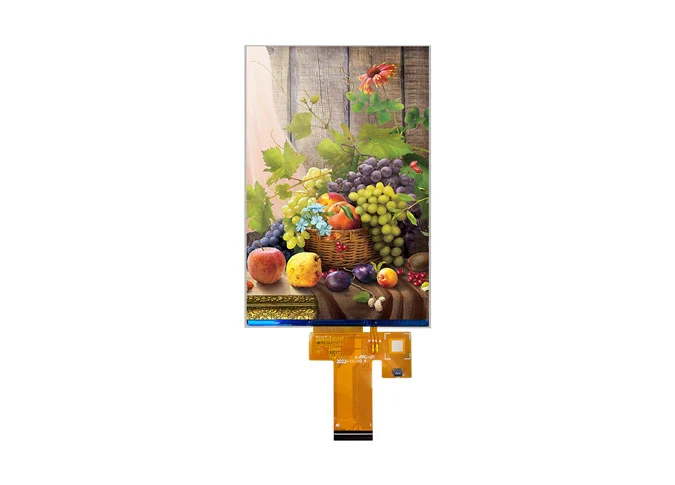

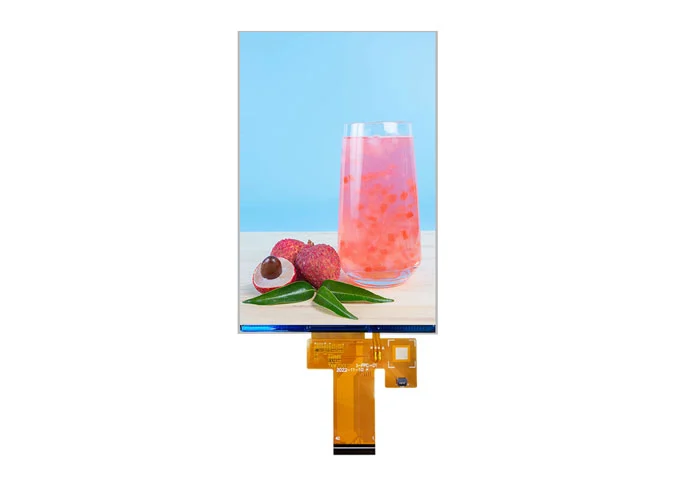

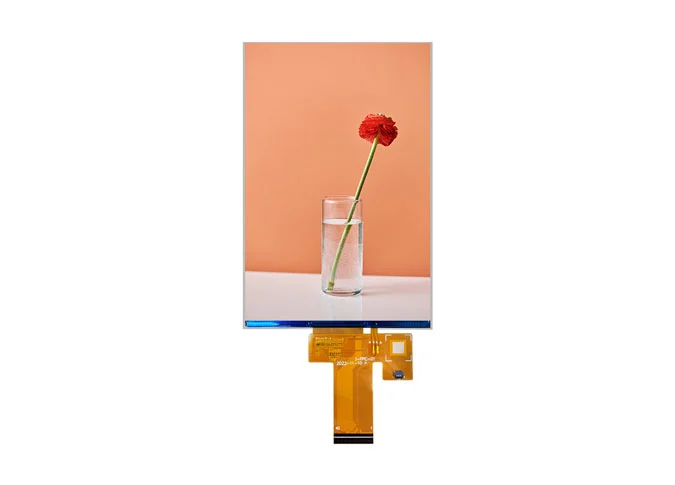

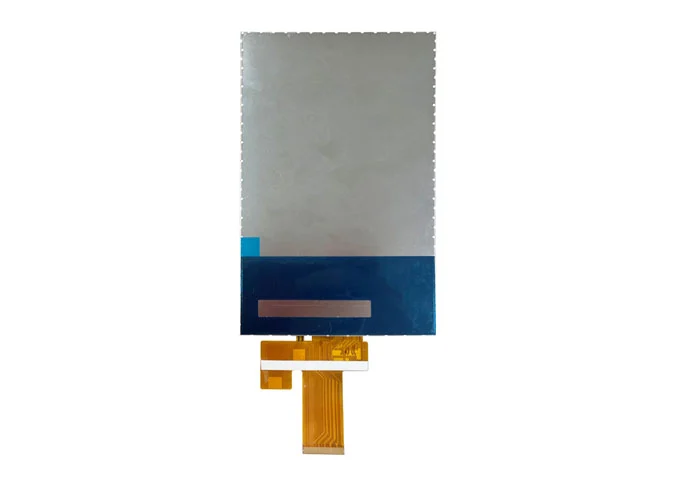

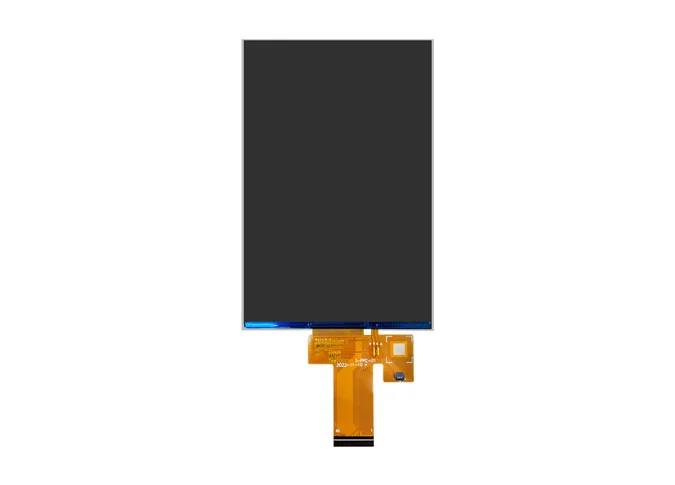

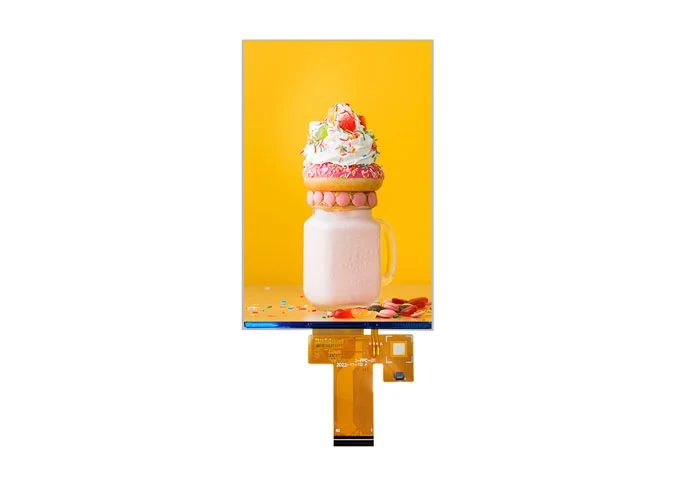

Z70088 hohe Helligkeit 1000 nits IPS-Ansicht Winkel 7 Zoll TFT LCD-Bildschirm 800*1280

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

800(H） × RGB × 1280（V）

pixels

3

Pixel Pitch

0. 11775(H）× 0. 11775（V）

mm

4

LCM Outline Dimension

(Without FPC）

99.65(W) ×160.85(H) ×2.40(T)

mm

5

LCD Active Area

94.20(H) x 150.72(V)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

ILI9881C

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

/

-

13

FPC Version

Z70088  V1

-

14

Interface

MIPI

-

15

Operating Temperature

-30°C~ 85°C

-

16

Storage Temperature

-40°C~ 90°C

-

17

Backlight Arrangement

LED/5 Series 4 Parallel (20 lights in total)

-

18

Luminance

1000

nit

19

Weight

TBD

kg

1~2

GND

Power Ground

3

CTP_RST 1.8V

Touch panel reset

4

LCD-RESET

Reset pin. Setting either pin low initializes the LSI

5

CTP_INT 1.8V

Touch panel interrupt output

6

TE

Frame head pulse for tearing effect.

7

CTP_SDA 1.8V

Touch panel I2C data

8

LCD-ID

ID read PIN for ID circuit.

9

CTP_SCL 1.8V

Touch panel I2C clock

10

GND

Power Ground

11

CTP_VCC 2.8V 3.3V

Touch panel Power supply 2.8~3.3V

12

MIPI_D0-

MIPI-DSI Data differential signal input pins

13

GND

Power Ground

14

MIPI_D0+

MIPI-DSI Data differential signal input pins

15

LEDA

Power supply for backlight anode input terminal.

16

GND

Power Ground

17

LEDA

Power supply for backlight anode input terminal.

18

MIPI_D1-

MIPI-DSI Data differential signal input pins

19

GND

Power Ground

20

MIPI_D1+

MIPI-DSI Data differential signal input pins

21

LEDK

Power supply for backlight cathode input terminal.

22

GND

Power Ground

23

LEDK

Power supply for backlight cathode input terminal.

24

MIPI_CLK-

MIPI-DSI CLOCK differential signal input pins

25

LEDK

Power supply for backlight cathode input terminal.

26

MIPI_CLK+

MIPI-DSI CLOCK differential signal input pins

27~28

GND

Power Ground

29

PWM

PWM (Pulse Width Modulation) Signal Of LED Driving.

30

MIPI_D2-

MIPI-DSI Data differential signal input pins

31

LCD-VDDIO 1.8V

power supply for the I/O circuit

32

MIPI_D2+

MIPI-DSI Data differential signal input pins

33~34

GND

Power Ground

35

VSP

External input voltage  (4.8V~6V)

36

MIPI_D3-

MIPI-DSI Data differential signal input pins

37

VSN

External input voltage  (-4.8V~-6V)

38

MIPI_D3+

MIPI-DSI Data differential signal input pins

39~40

GND

Power Ground
