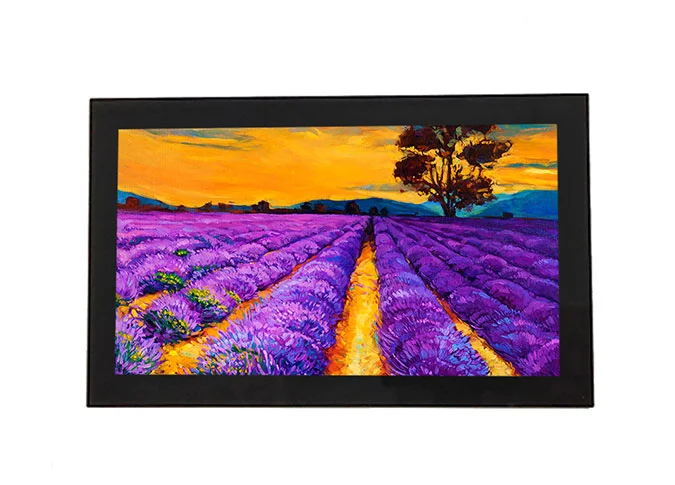

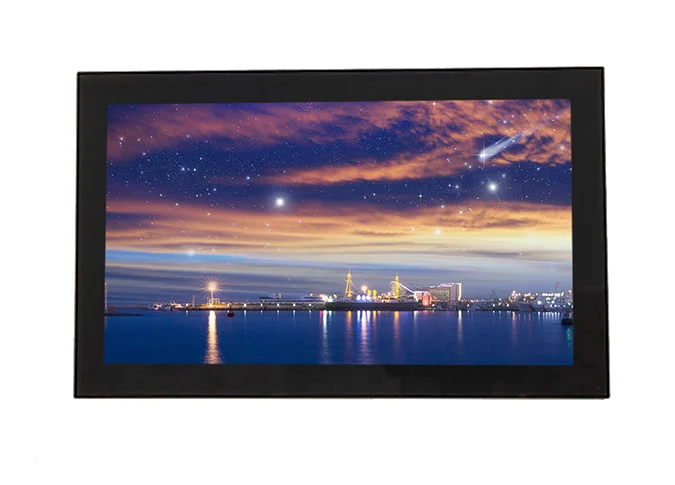

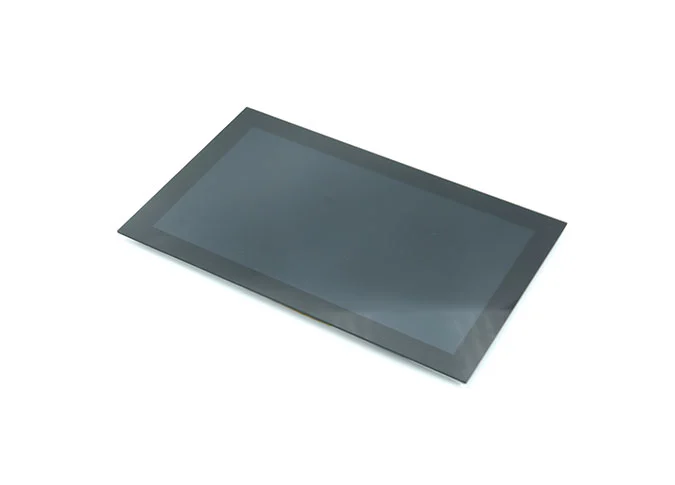

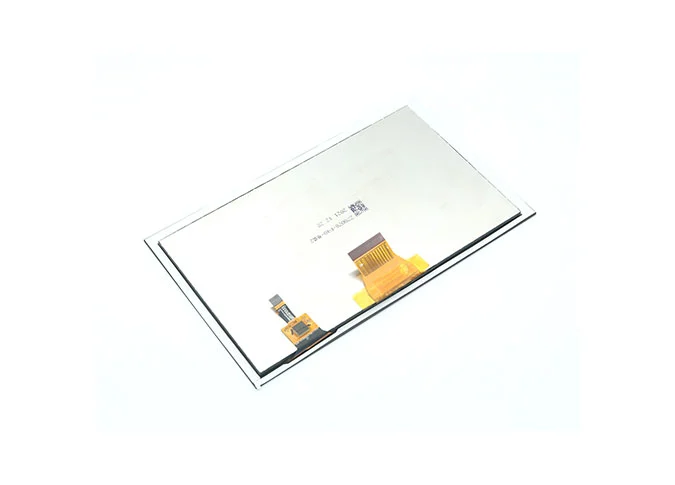

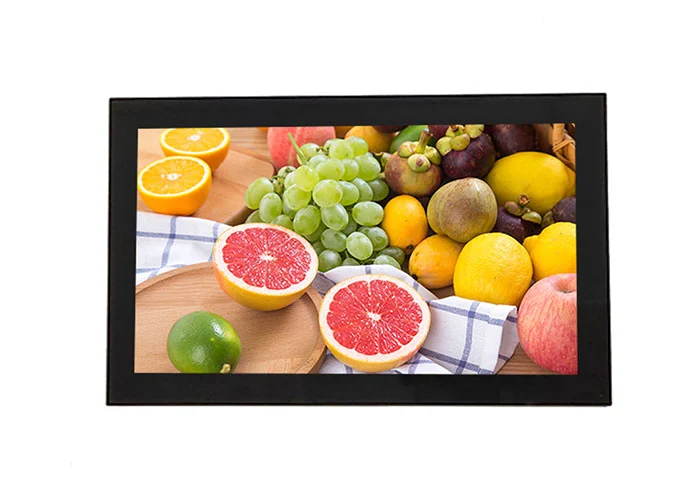

Z70078-ZC 7 Zoll 1024*600 kapazitiver Touchscreen 500 Nits MIPI I2C InterfaceIPS-Ansicht

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1024 (H) × RGB × 600 (V)

pixels

3

Pixel Pitch

50.2 (H) × 143.2 (V）

um

4

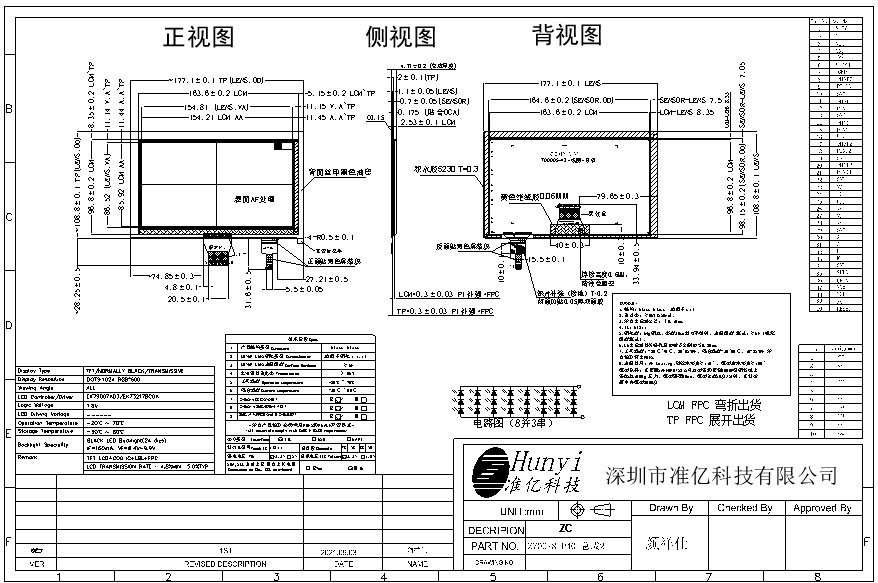

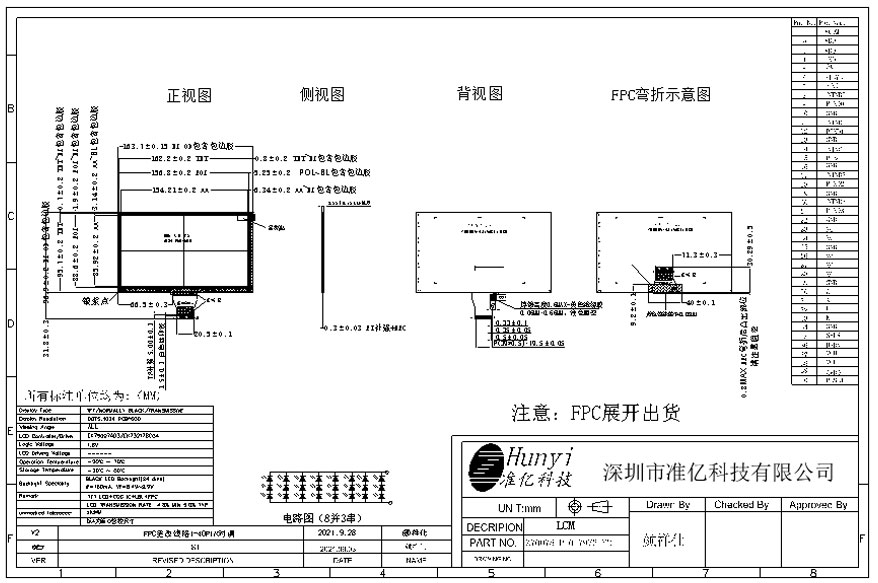

LCM Outline Dimension

(Without FPC）

163.7 (W) × 96.9 (H) × 2.55 (T)

mm

5

LCD Outline Dimension

162.2 (W) × 95.7 (H) × 1.0 (T)

mm

6

TLCM Outline Dimension

(Without FPC）

177.1 (W) × 108.8 (H) × 4.71 (T)

mm

7

LCD Active Area

154.21 (W) ×85.92 (H）

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

EK79007AD3+EK73217BCGA

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 5.0% Min: 4.8%

-

14

LCD Contrast Ratio

Typ.: 800

-

15

FPC Version

Z70078-P40 V2

-

16

Interface

MIPI

-

17

TP Interface

I2C

18

Operating Temperature

-20°C~ 70°C

-

19

Storage Temperature

-30°C~ 80°C

-

20

Backlight Arrangement

LED/3 Series 8 Parallel (24 lights in total)

-

21

Luminance

480

nit

22

Weight

0.177

kg

1

VCOM

Common Voltage (4.2V）

2-3

VDD

POWER SUPPLY (3.3V）

4

GND

Ground

5

NC

No Connection

6

STBYB

LCM Standby Mode PIN, normally pull high

7

GND

Ground

8

NIND0

Negative MIPI differential data input

9

PIND0

Positive MIPI differential data input

10

GND

Ground

11

NIND1

Negative MIPI differential data input

12

PIND1

Positive MIPI differential data input

13

GND

Ground

14

NINC

Negative MIPI differential CLOCK input

15

PINC

Positive MIPI differential CLOCK input

16

GND

Ground

17

NIND2

Negative MIPI differential data input

18

PIND2

Positive MIPI differential data input

19

GND

Ground

20

NIND3

Negative MIPI differential data input

21

PIND3

Positive MIPI differential data input

22

GND

Ground

23-24

NC

No Connection

25

GND

Ground

26-28

NC

No Connection

29

GND

Ground

30-31

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

32-33

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

34

GND

Ground

35

SHLR

Source right or left sequence control PIN

36

UPDN

Gate up or down scan control PIN

37

VGH

TFT Gate ON Voltage (18V）

38

VGL

TFT Gate OFF Voltage (-7V）

39

AVDD

Power For Analog Circuit (9.6V）

40

RESET

LCM RESET PIN (3.3V）

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

1-2

GND

Ground

3

VDD

TP Input Power voltage

4

SDA

TP I2C data (SDA) data input (MOSI)

5

SCL

TP I2C clock (SCL) clock (SCLK)

6

GND

Ground

7

INT

TP Interrupt PIN

8

RST

TP Reset PIN

9-10

GND

Ground
