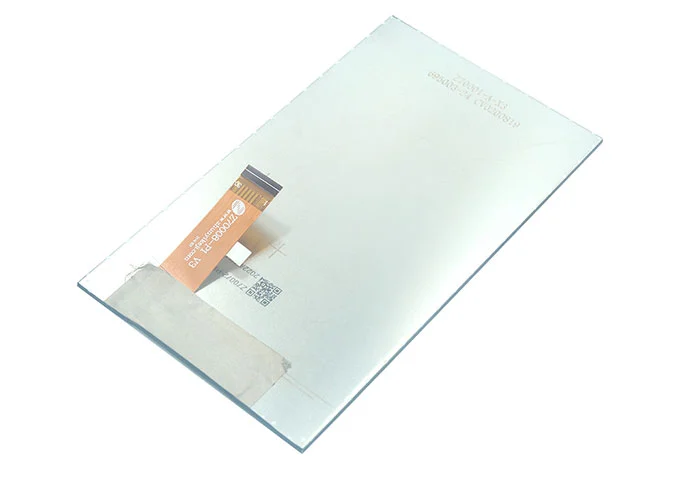

Z70072 7 Zoll LCD-Display 600*1024 30PIN MIPI-Schnitts telle 350 Stück Helligkeit

  • Größe: 7 Zoll

  • Auflösung: 600*1024

  • Aktiver Bereich: 89,28*152,37

  • Schnitts telle: MIPI

  • Ansicht winkel: IPS

  • Helligkeit: 350 cd/m²

  • Touch Panel: Unterstützung CTP/RTP

  • Versorgungs typ: Fabrik/Hersteller

  • Zertifizierung: ISO9001, IATF16949, ROHS, REACH

7 inch lcd display
7 inch lcd display
7 inch lcd screen 6001024
7 lcd display
7 inch lcd display wholesale
7 inch lcd screen 6001024 wholesale
7 lcd display wholesale
7 inch lcd display manufacturer

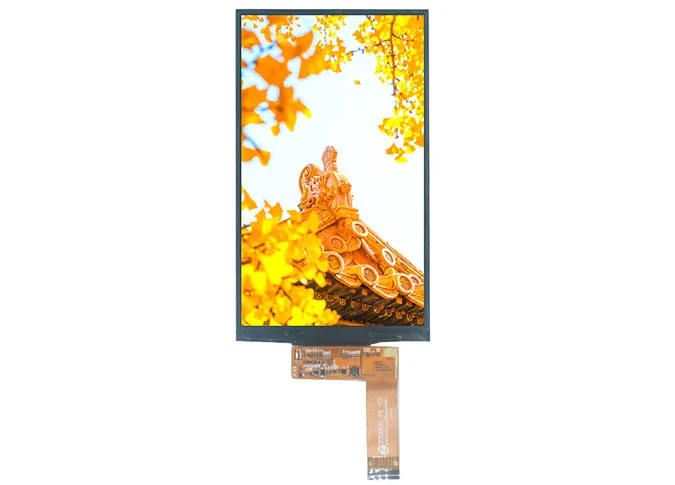

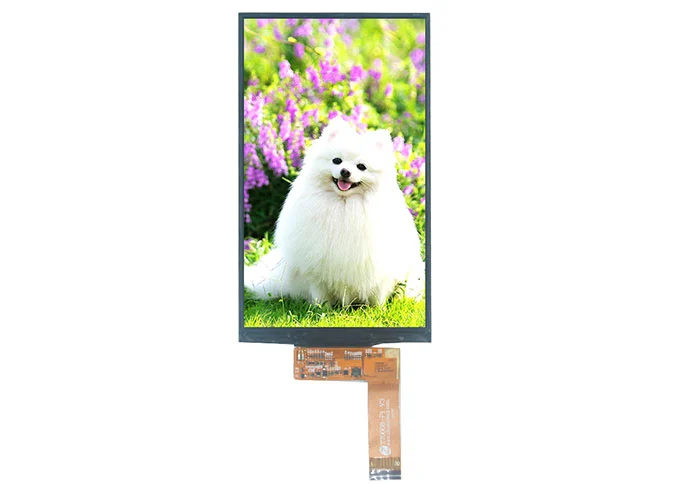

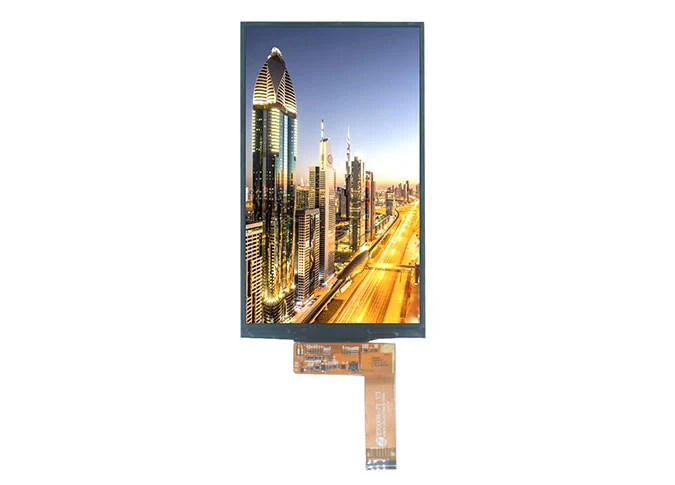

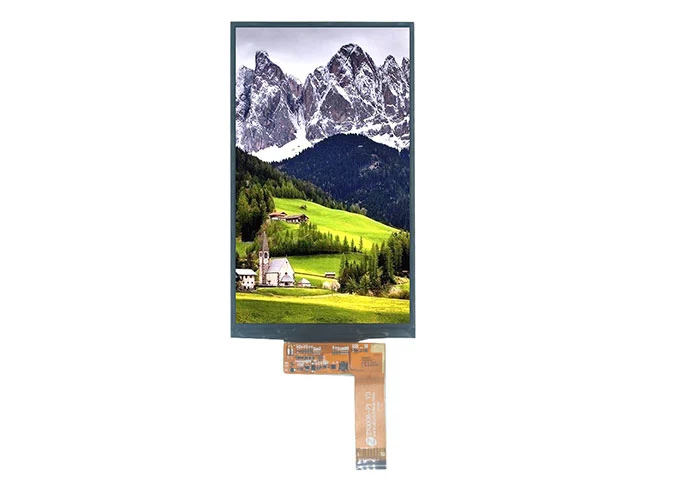

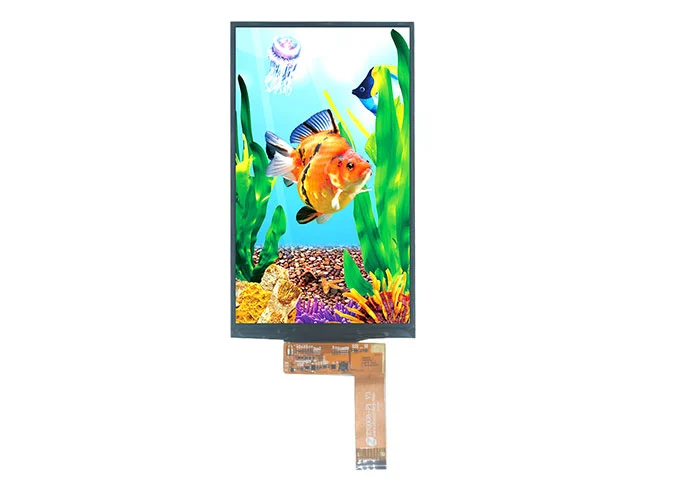

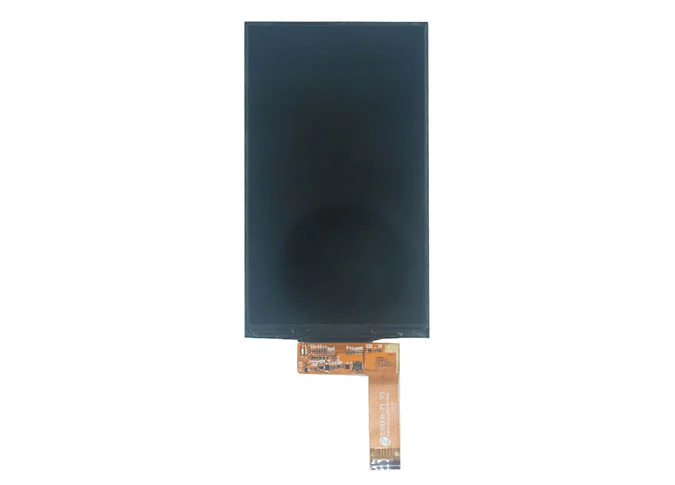

7 Zoll LCD-Display 600x1024 30PIN MIPI-Schnitts telle 350 Stück im Überblick über Z70072

1

Z70072 ist eine farbaktive Matrix-Dünnschicht transistor (TFT)-Flüssig kristall anzeige (LCD) mit einer Auflösung von 600*1024. IPS (In-Plane Switching) Technik macht diese 7"Quadratisches TFT-LCD-ModulHaben einen breiteren Blickwinkel. Dieses LCD-Display ist eingebauter OTA7290B-C Treiber IC. Dieses a-Si TFT LCD-Modul kommt mit MIPI-Schnitts telle, 400cd/m² Helligkeit.

2

Wenn Sie spezielle Anforderungen haben, wie Laufwerk IC, Schnitts telle, FPC, Touch panel, Helligkeit, Farbe, Hintergrund beleuchtung, Touch panel usw., alsKunden spezifischer LCD-Hersteller, Wir können auch für Sie anpassen.

3

Als einer derTFT LCD-Modul Hersteller, Unsere Fabrik führen ISO 9001: 2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Display bestanden ROHS, REACH-Zertifizierung.

4

The7 Zoll LCD-Bildschirm ist weit verbreitet in medizinische, visuelle Türklingel, Verkaufs automat, Lernen Mechine, Ventilator, Oszilloskop, Küche, Haushalts gerät, QRcode-Scanner, Smart Home, Industrie, Handheld, Outdoor, HMI, E-Bike, Fahrzeug, Projektor, 3D-Drucker, Audio gerät, Roboter, elektrische Waage, Navigation, Aufzugs werbung usw.

Specifications of Vertical Screen 7 Inch LCD Display 600*1024 30PIN MIPI Interface 350 Nits Brightness


No.

Item

Specification

Unit

1

Display Size (Diagonal)

6.95

inch

2

Display Resolution

600 (H) × RGB × 1024 (V)

pixels

3

Pixel Pitch

49.6 (H) × 148.8 (V)

um

4

LCM Outline Dimension

(Without FPC)

94.9 (W) × 163.1 (H) × 2.53 (T)

mm

5

LCD Outline Dimension

93.28 (W) × 159.82 (H) × 0.8 (T)

mm

6

LCD Active Area

89.28 (W) × 152.37 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

OTA7290B-C

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.7% Min: 3.95%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 600

-

14

FPC Version

Z70008-P1 V3

-

15

Interface

MIPI

-

16

Operating Temperature

-10°C~ 50°C

-

17

Storage Temperature

-20°C~ 60°C

-

18

Backlight Arrangement

LED/3 Series 6 Parallel (18 lights in total)

-

19

Luminance

350

nit

20

Weight

0.081

kg


Interface Definition Description of Vertical Screen 7 Inch LCD Display 600*1024 30PIN MIPI Interface 350 Nits Brightness


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

SCL

I2C Serial Communication Clock Input

4

SDA

I2C Serial Communication Data Input/Output

5

UPDN

Gate Up or Down scan control

6

SHLR

Source Right or Left sequence

7-8

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

9

NC

No Connection

10

GND

Ground

11

D3P

Positive MIPI differential data input

12

D3N

Negative MIPI differential data input

13

GND

Ground

14

D2P

Positive MIPI differential data input

15

D2N

Negative MIPI differential data input

16

GND

Ground

17

DCLKP

Positive MIPI differential CLOCK input

18

DCLKN

Negative MIPI differential CLOCK input

19

GND

Ground

20

D1P

Positive MIPI differential data input

21

D1N

Negative MIPI differential data input

22

GND

Ground

23

D0P

Positive MIPI differential data input

24

D0N

Negative MIPI differential data input

25

GND

Ground

26

STBYB

LCM Standby Mode PIN

27

RESET

LCM RESET PIN

28-29

NC

No Connection

30

VDD

POWER SUPPLY (2.8/3.3V)

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

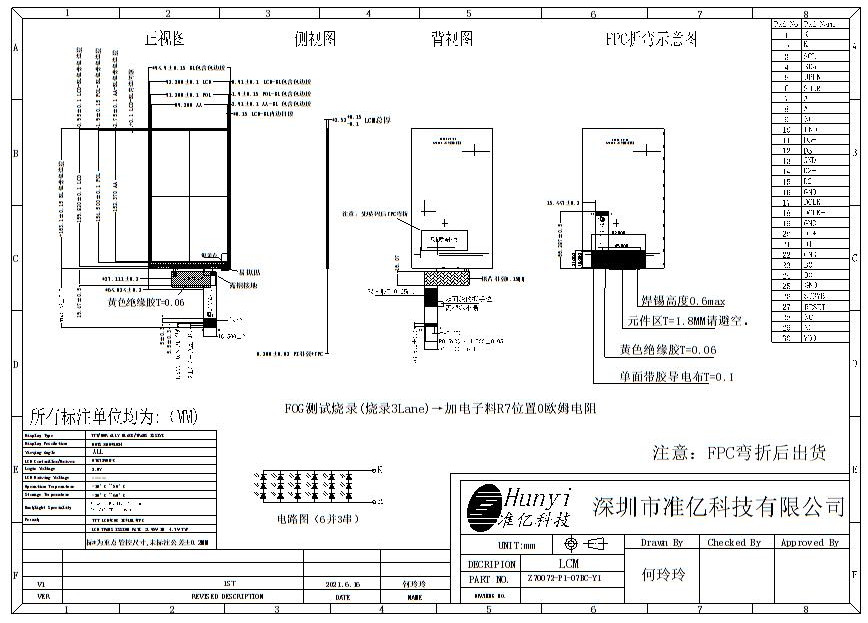

Mechanical Drawing of Vertical Screen 7 Inch LCD Display 600*1024 30PIN MIPI Interface 350 Nits Brightness


Mechanical Drawing of Vertical Screen 7 Inch LCD Display 600*1024 30PIN MIPI Interface 350 Nits Brightness
