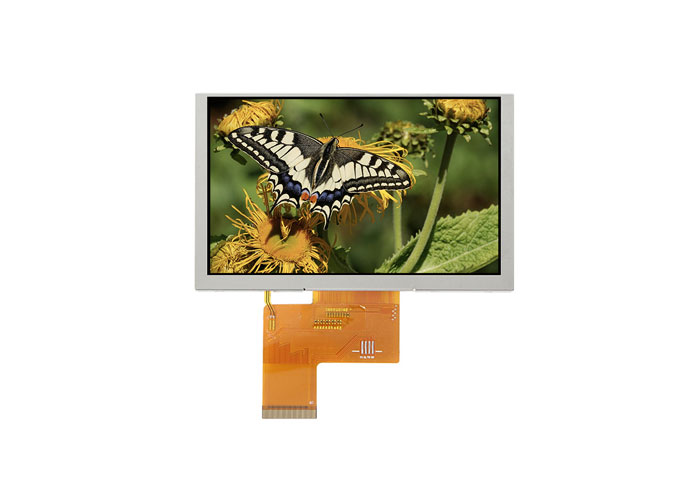

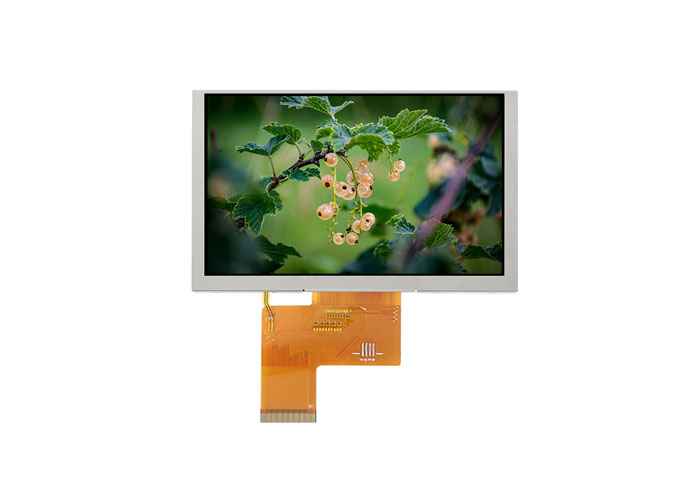

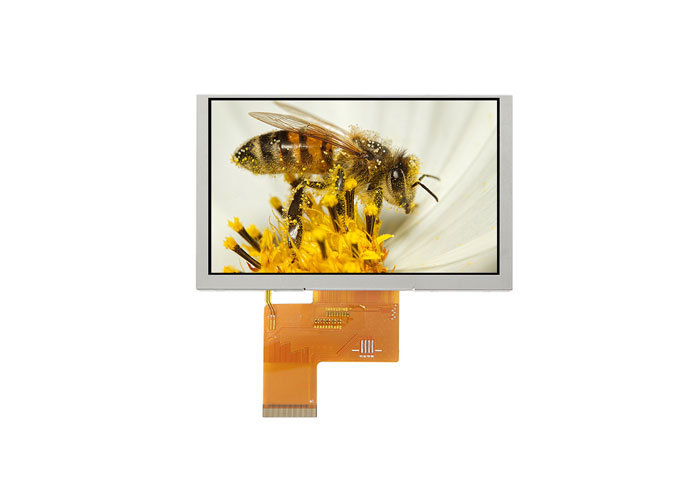

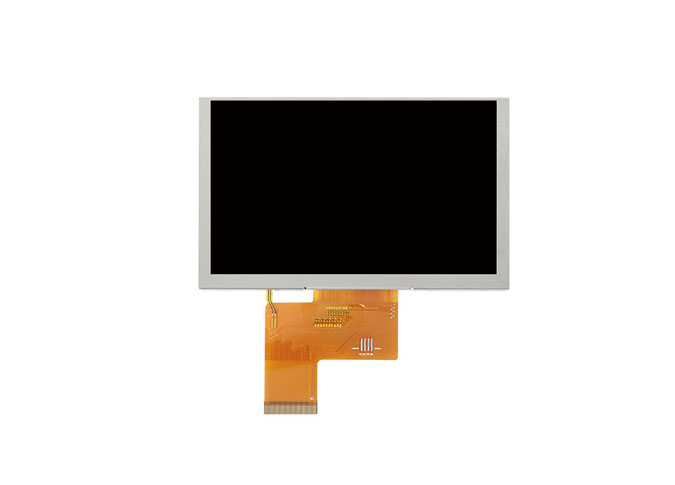

Z70015-P15 7 Zoll LCD-Display 800*480 horizontaler Bildschirm 300 Nits RGB-Schnitts telle

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

800 (H） × RGB × 480 (V）

pixels

3

Pixel Pitch

64.2 (H）× 179 (V）

um

4

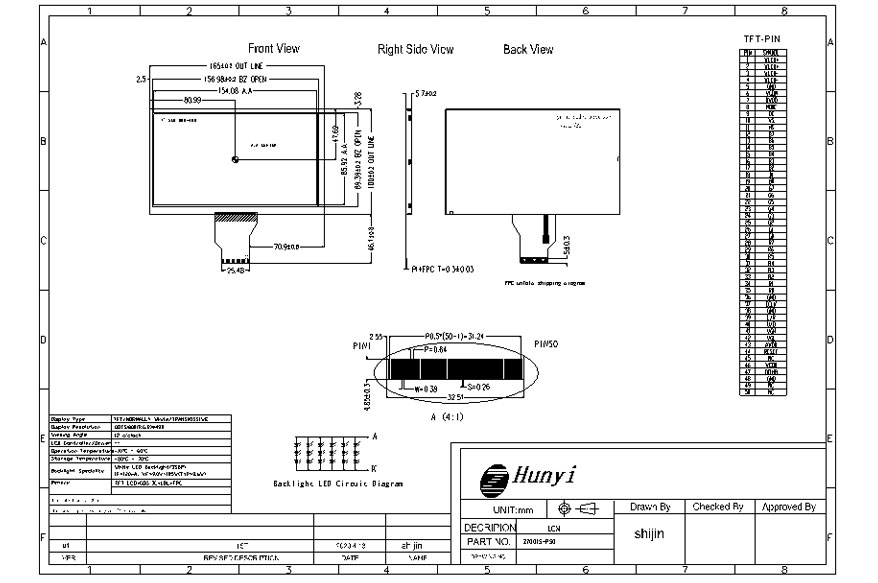

LCM Outline Dimension

(Without FPC）

165 (W) × 100 (H) × 5.7 (T)

mm

5

LCD Active Area

154.08 (W） × 85.92 (H）

mm

6

View Direction (Gray Inversion)

12 o'clock

-

7

Driver IC

/

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal White

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ.: TBD

-

12

LCD Contrast Ratio

Typ.: 500 Min: 400

-

13

FPC Version

Z70015-P50 V1

-

14

Interface

RGB

-

15

Operating Temperature

-10°C~ 60°C

-

16

Storage Temperature

-20°C~ 70°C

-

17

Backlight Arrangement

LED/3 Series 6 Parallel (18 lights in total)

-

18

Luminance

Typ.:320

nit

19

Weight

TBD

kg

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3-4

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

5

GND

Ground

6

VCOM

Common Voltage

7

DVDD

POWER SUPPLY

8

MODE

DE/SYNC MODE SELECT

9

DE

DATA INPUT ENABLE

10

VS

Vertical Sync Input

11

HS

Horizontal Sync Input

12-19

B7-B0

Blue DATA

20-27

G7-G0

Green DATA

28-35

R7-R0

Red DATA

36

GND

Ground

37

DCLK

Sample Clock

38

GND

Ground

39

L/R

Left/Right Selection

40

U/D

Up/Down Selection

41

VGH

Gate ON Voltage

42

VGL

Gate OFF Voltage

43

AVDD

Power For Analog Circuit

44

RESET

Global Reset pin

45

NC

No Connection

46

VCOM

Common Voltage

47

DITHB

Dithering Function

48

GND

Ground

49-50

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
