Z50006 große Größe IPS-Ansicht Winkel 5 Zoll 1080*1080 TFT LCD-Bildschirm MIPI-Schnitts telle HX8399 Treiber

  • Auflösung: 1080*1080

  • Schnitts telle: MIPI

  • Ansicht winkel: IPS

  • Helligkeit: 500 Nisse

  • Touch Panel: Unterstützung CTP/RTP

  • Versorgungs typ: Fabrik/Hersteller

  • Zertifizierung: ISO9001,IATF16949,ROHS,REACH

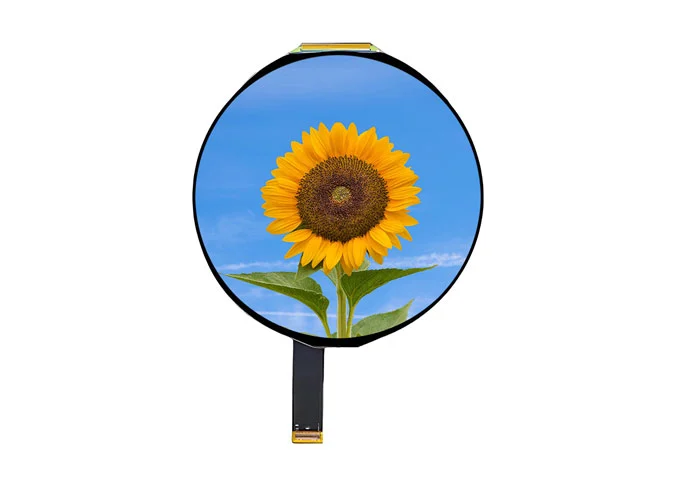

z50006 2
z50006 2

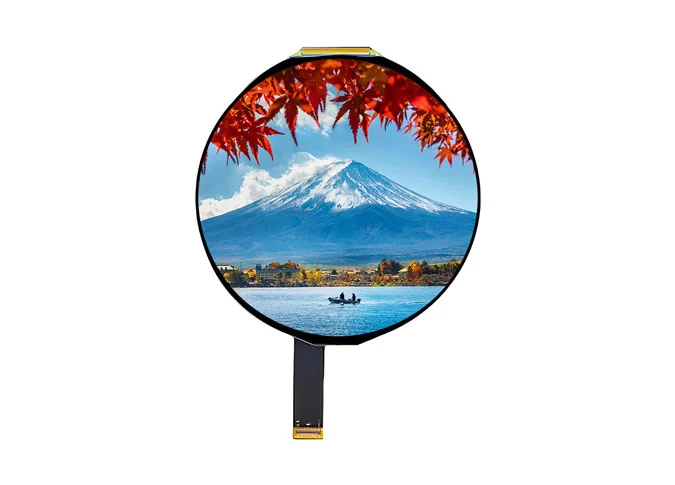

z50006 1

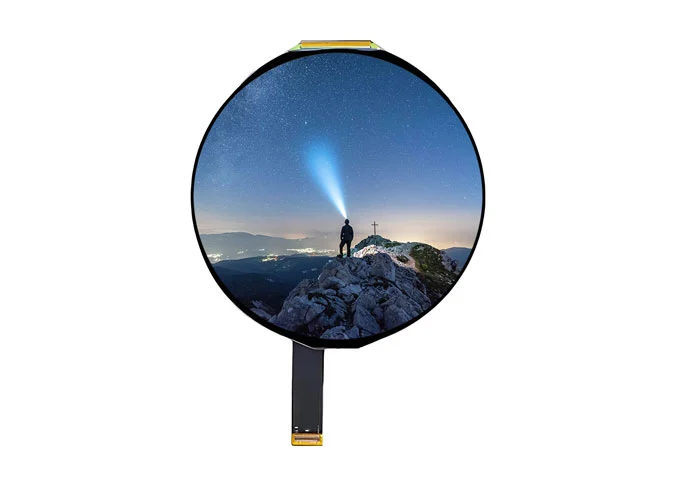

z50006 4

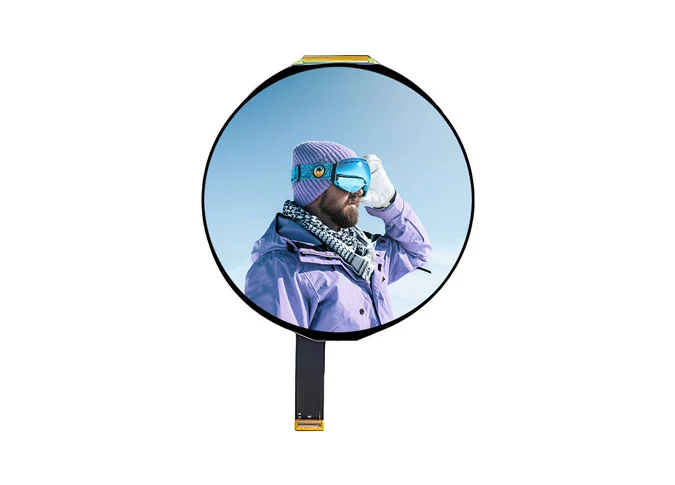

z50006 3

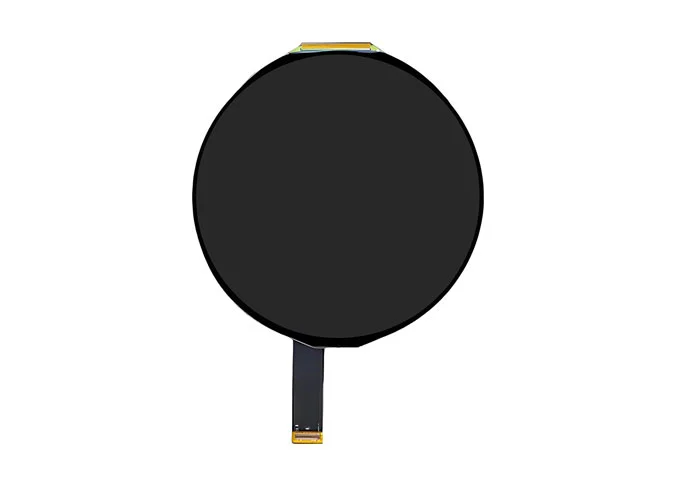

z50006 6
z50006 5

Überblick über Z50006 große Größe IPS-Ansicht Winkel 5 Zoll 1080*1080 TFT LCD-Bildschirm MIPI-Schnitts telle HX8399 Treiber

1

Z50006 ist eine farbige aktive Matrix-Dünnschicht transistor (TFT) Flüssig kristall anzeige (LCD) mit 1080*1080 Auflösung. Durch die IPS-Technik (In-Plane Switching) hat dieses 5 "LCD-Modul einen größeren Blickwinkel. Dieses LCD-Display ist eingebauter JD9365DA Treiber IC. Diese a-Si TFT LCD kommen mit MIPI-Schnitts telle.

2

Wenn Sie spezielle Anforderungen haben, wie Laufwerk IC, Schnitts telle, FPC, Touch panel, Helligkeit, Farbe, Hintergrund beleuchtung, Touch panel usw., können wir zur Verfügung stellenBenutzer definierte LCD-ModuleFür dich.

3

Unsere Fabrik führen ISO 9001:2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Display bestanden ROHS, REACH-Zertifizierung

4

Die 5 "1080*1080Kreisförmiger LCD-BildschirmIst weit verbreitet auf Auto, Motorrad, Smart Home, Navigation, medizinisches Gerät, Musik ausrüstung, Digital kamera, Heim automation, POS-Terminals, industrielle Steuerungen, Sicherheits kameras ect

General Specifications of Z50006 Big Size IPS View Angle 5 inch 1080*1080 TFT LCD Screen MIPI Interface HX8399 Driver


General   Information Items

Specification

UniSt

Note

Main Panel

Display area(AA)

127.008(H)*127.008(V)

mm

-

Driver element

TFT active matrix

-

-

Display colors

16.7M

colors

-

Number of pixels

1080(RGB)*1080

dots

-

TFT Pixel arrangement

RGB vertical stripe

-

-

Pixel pitch

0. 1176(H)*0. 1176(V)

mm

-

Viewing angle

ALL

o'clock

-

Controller IC

HX8399

-

-

LCM Interface

1/2/3/4-LANE MIPI

-

-

Display mode

Transmissive/Normally Black

-

-

Operating temperature

-20~+ 60

C

-

Storage temperature

-30~+75

C

-


Mechanical Information of Z50006 Big Size IPS View Angle 5 inch 1080*1080 TFT LCD Screen MIPI Interface HX8399 Driver


Item

Min.

Typ.

Max.

Unit

Note


Module

size

Horizontal(H)


136.531


mm

-

Vertical(V)


132.208


mm

-

Depth(D)


1 98


mm

-

Weight


70


g

-


Interface Definition Description of Z50006 Big Size IPS View Angle 5 inch 1080*1080 TFT LCD Screen MIPI Interface HX8399 Driver


NO.

SYMBOL

DISCRIPTION

I/O

1

GND

Ground.

P

2

GND

Ground.

P

3

LAN2  P

_

Disp    MIPI    lane2+.

I

4

LEDK

LED cathode.

P

5

LAN2  N

_

Disp    MIPI    lane2-.

I

6

LEDK

LED cathode.

P

7.

GND

Ground.

P

8

GND

Ground.

P

9

LAN1  P

_

Disp    MIPI    Blane    1+.

I

10

LEDA

LED Anode.

P

11

LAN1  N

_

Disp    MIPI    lane    1-.

I

12

LEDA

LED Anode.

P

13

GND

Ground.

P

14

GND

Ground.

P

15

CLK  P

_

Disp    MIPICLK+.

I

16

ID  PIN2

_

ID     pu to1. 8V(LCM).     If not    used open.

P

17

CLK  N

_

Disp    MIPICLK-.

I

18

ID  PIN1

_

ID     pd to GND(LCM) .     If not     used open.

P

19

GND

Ground.

P

20

GND

Ground.

P

21

LAN0  P

_

Disp    MIPI    lane 0+.

I

22

IOVCC

Disp digital    power( 1.8V).

P

23

LAN0  N

_

Disp    MIPI    lane0-.

I

24

IOVCC

Disp digital    power( 1.8V).

P


25

GND

Ground.

P

26

GND

Ground.

P

27

LAN3  P

_

Disp    MIPI    lane 3+.

I

28

NC

NC


29

LAN3  N

_

Disp    MIPI    lane 3-.

I

30

VSN/VDD-

Display -5V analog     rail.

P

31

GND

Ground.

P

32

VSN/VDD-

Display -5V analog     rail.

P

33

NC

NC


34

NC

NC


35

NC

NC


36

VSP/VDD+

Disp +5V analog     rail.

P

37

GND

Ground.

P

38

VSP/VDD+

Disp +5V analog    rail     .

P

39

NC

NC


40

NC

NC


41

NC

NC


42

GND

Ground.

P

43

NC



44

LEDPWM

Backlight     pwm output,     If not     used open.

O

45

NC

NC


46

TE

Disp tearing effect out,      If not     used open.

O

47

GND

Ground.

P

48

RESET

Disp    reset.

I

49

GND

Ground.

P

50

GND

Ground.

P
