Z49421 5 Zoll 720*1280 Display-Modul 30PIN IPS Ansicht GH1001 Treiber IC MIPI-Schnitts telle

  • Größe: 5 Zoll

  • Auflösung: 720*1280

  • Aktiver Bereich: 62,60*111,08mm

  • Schnitts telle: MIPI

  • Ansicht winkel: IPS

  • Helligkeit: 450 cd/m²

  • Touch Panel: Unterstützung CTP/RTP

  • Versorgungs typ: Fabrik/Hersteller

  • Zertifizierung: ISO9001, IATF16949, ROHS, REACH

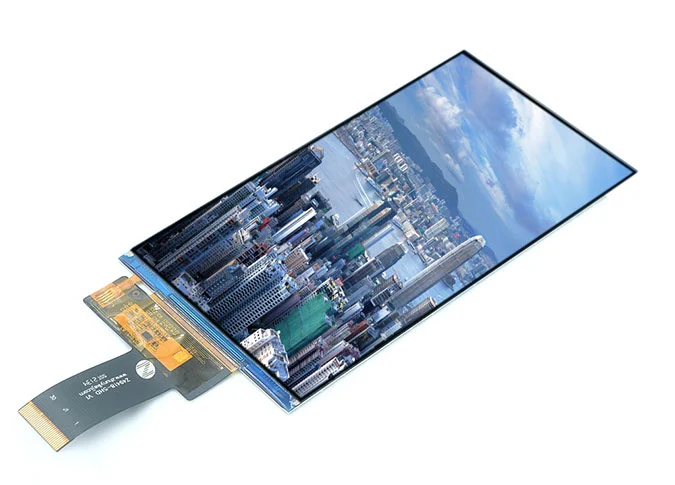

hd lcd screen
hd lcd screen
hd tft display

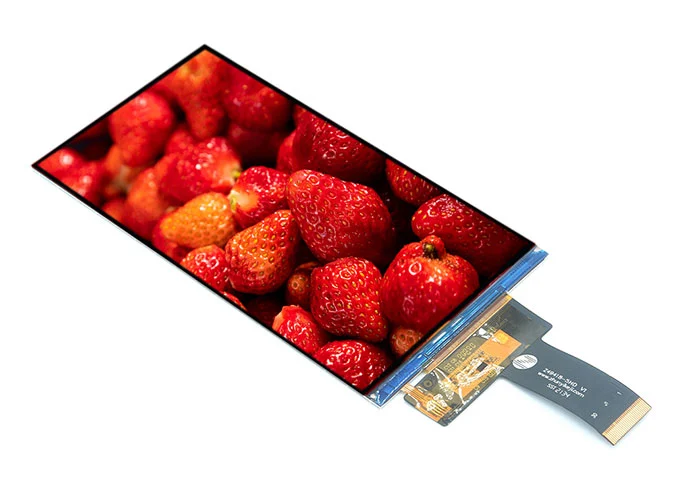

china hd tft display
tft vs hd display

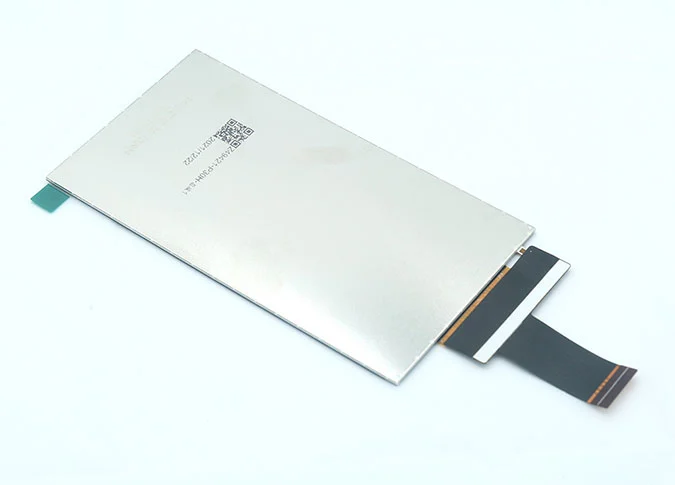

lcd vs hd display

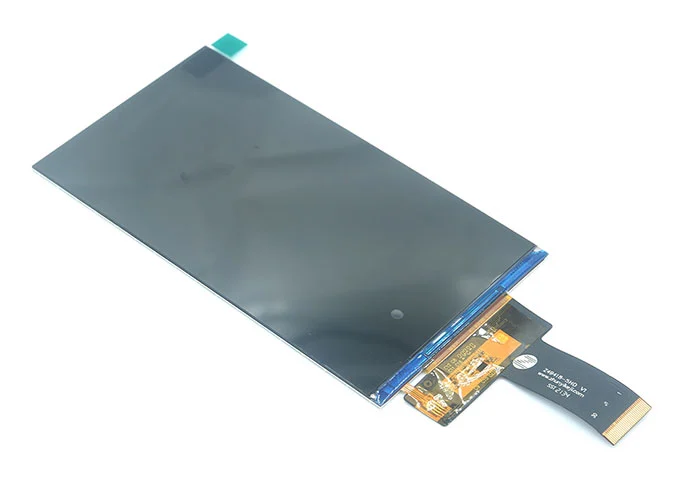

5 inch ips display

Überblick über Z49421 5 Zoll 720*1280 Display-Modul 30PIN IPS Ansicht GH1001 Treiber IC MIPI-Schnitts telle

1

Z49421 ist eine farbaktive Matrix-Dünnschicht transistor (TFT)-Flüssig kristall anzeige (LCD) mit 720*1280 Auflösung. Durch die IPS-Technik (In-Plane Switching) hat dieses 5 "LCD-Modul einen größeren Blickwinkel. Dieses LCD-Display ist eingebauter GH1001 Treiber IC. Dieses a-Si TFT LCD-Modul kommt mit MIPI-Schnitts telle, 450cd/m² Helligkeit.

2

Wenn Sie spezielle Anforderungen haben, wie Antriebs-IC-Schnitts telle, FPC, Touch-Panel, Hintergrund beleuchtung usw., können wir auch zur Verfügung stellenBenutzer definierte Form LCD-BildschirmFür dich.

3

Als einTFT LCD-Display Fabrik,Unsere Fabrik führen ISO 9001: 2015 und IATF16949: 2016 Qualitäts standards ystem streng, das gesamte LCD-Display hat ROHS, REACH-Zertifizierung bestanden.

4

Der hoch auflösende 5-Zoll-LCD-Bildschirm ist weit verbreitet in medizinischer, visueller Türklingel, E-Brieftasche, POS, Game-Player, Haushalts gerät, QRcode-Scanner, Smart Home, Industrie, Handheld, Outdoor, HMI, E-Bike, Fahrzeug, Projektor, 3D-Drucker, Audio gerät usw.

Specifications of 5 Inch 720*1280 Display Module 30PIN IPS View GH1001 Driver IC MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.9

inch

2

Display Resolution

720 (H) × RGB × 1280 (V)

pixels

3

Pixel Pitch

29.5 (H) × 88.5 (V)

um

4

LCM Outline Dimension

(Without FPC)

65.89 (W) × 119.91 (H) × 1.65 (T)

mm

5

LCD Outline Dimension

65.69 (W) × 119.61 (H) × 0.4 (T)

mm

6

TLCM Outline Dimension

(Without FPC)

67.56 (W) × 122.35 (H) × 3.28 (T)

mm

7

LCD Active Area

63.72 (W) × 113.28 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

GH1001

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 3.2% Min: 2.72%

-

14

LCD Contrast Ratio

Typ.: 1200 Min: 1000

-

15

FPC Version

Z49418-5HD V1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/6 Series 2 Parallel (12 lights in total)

-

20

Luminance

400

nit

21

Weight

0.054

kg


Interface Definition Description of 5 Inch 720*1280 Display Module 30PIN IPS View GH1001 Driver IC MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

NC

No Connection

2

LCM_LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

NC

No Connection

4

LCM_LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

5

NC

No Connection

6

GND

Ground

7

MIPI_TDN0

Negative MIPI differential data input

8

MIPI_TDP0

Positive MIPI differential data input

9

GND

Ground

10

MIPI_TDN1

Negative MIPI differential data input

11

MIPI_TDP1

Positive MIPI differential data input

12

GND

Ground

13

MIPI_TCN

Negative MIPI differential CLOCK input

14

MIPI_TCP

Positive MIPI differential CLOCK input

15

GND

Ground

16

MIPI_TDN2

Negative MIPI differential data input

17

MIPI_TDP2

Positive MIPI differential data input

18

GND

Ground

19

MIPI_TDN3

Negative MIPI differential data input

20

MIPI_TDP3

Positive MIPI differential data input

21-22

GND

Ground

23

NC

No Connection

24

GND

Ground

25

DSI_TE

Tearing Effect PIN

26

LCM_RST

LCM RESET PIN

27

IOVCC

I/O POWER SUPPLY

28

VCI

POWER SUPPLY

29-30

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.


Mechanical Drawing of 5 Inch 720*1280 Display Module 30PIN IPS View GH1001 Driver IC MIPI Interface


Mechanical Drawing of 5 Inch 720*1280 Display Module 30PIN IPS View GH1001 Driver IC MIPI Interface
