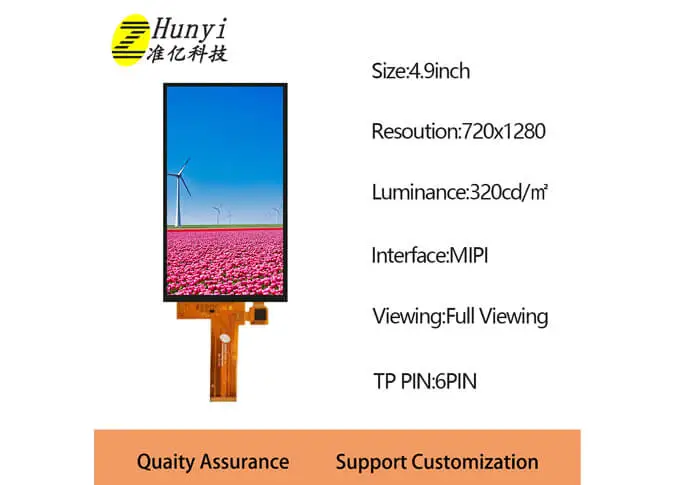

Größe: 4,9 Zoll
Auflösung: 720*1280
LCD-Schnitts telle: MIPI
Touch-Schnitts telle: IIC
Touch Panel: Kapazitiv
Fahrer IC: GH1001
Touch-Controller: GT911
Ansicht winkel: IPS
Versorgungs typ: Fabrik/Hersteller
Zertifizierung: ISO9001, IATF16949, ROHS, REACH

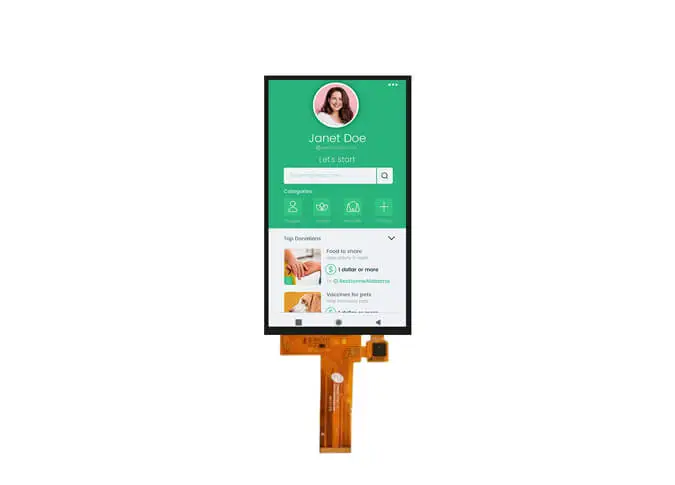

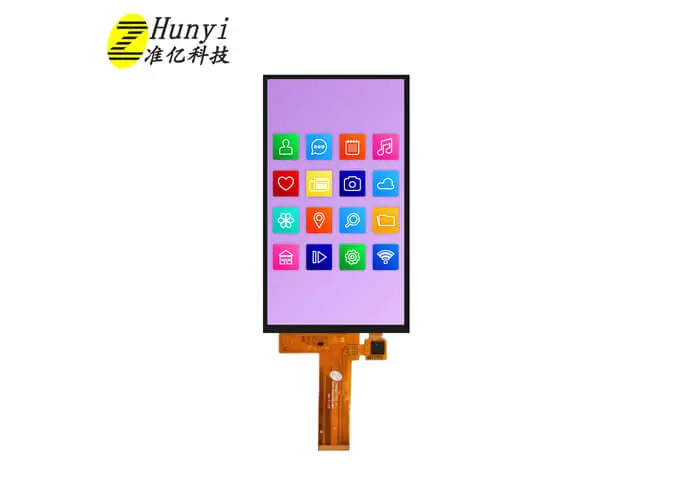

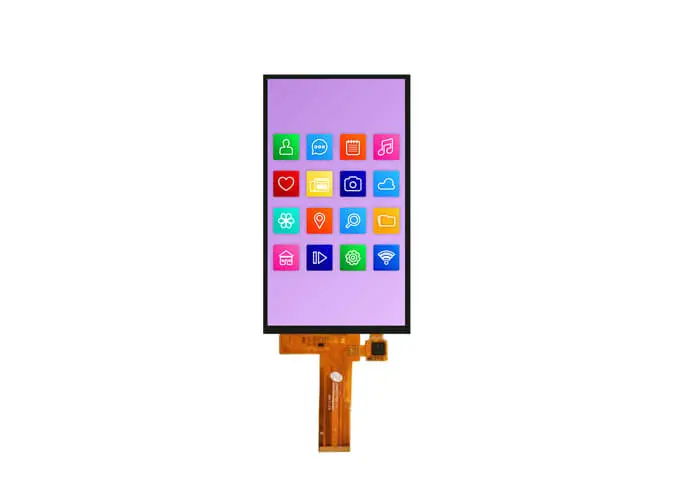

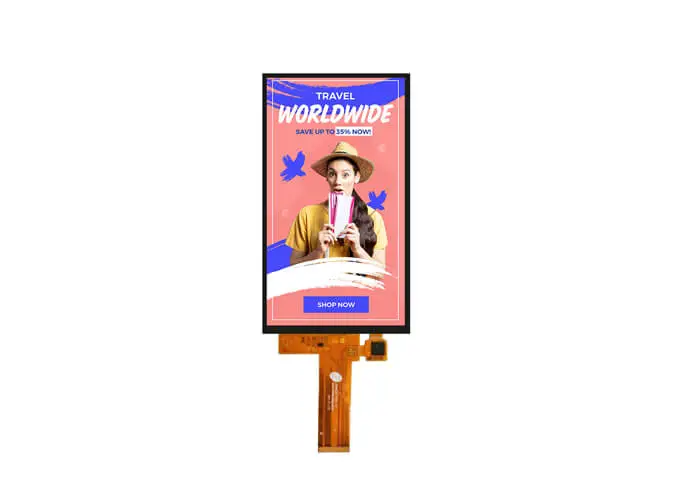

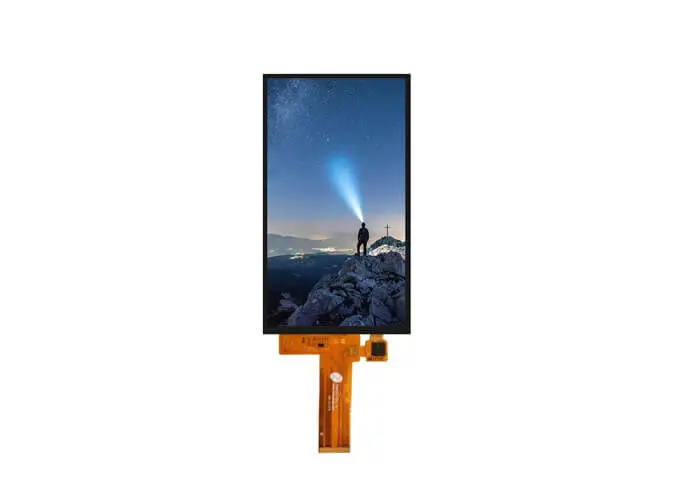

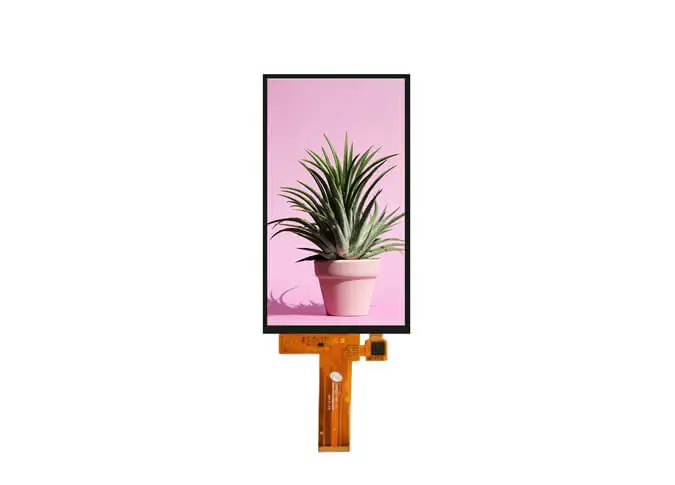

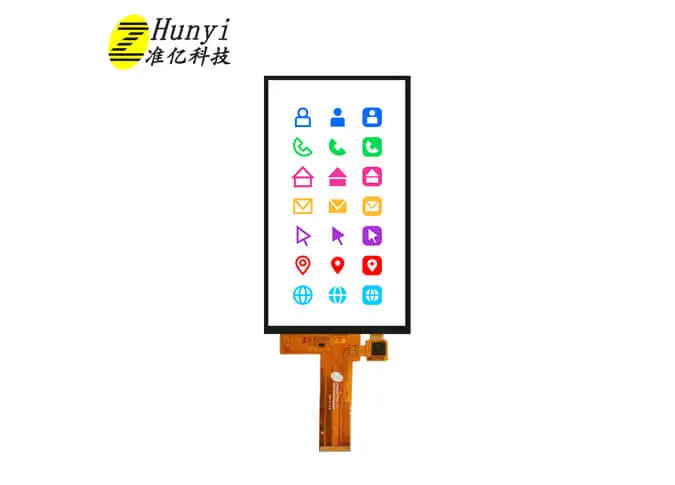

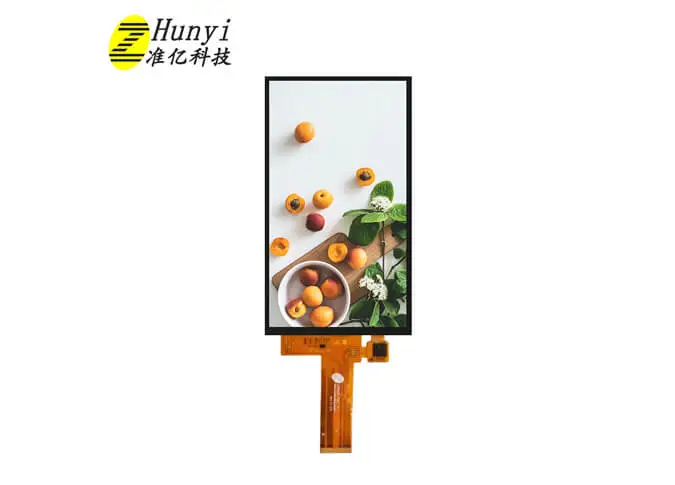

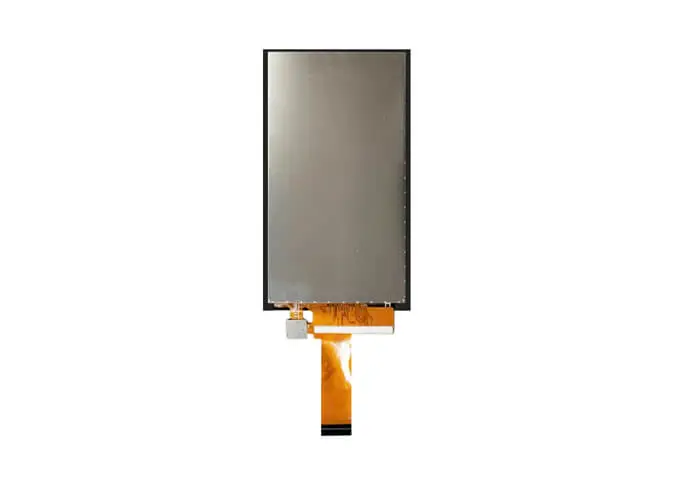

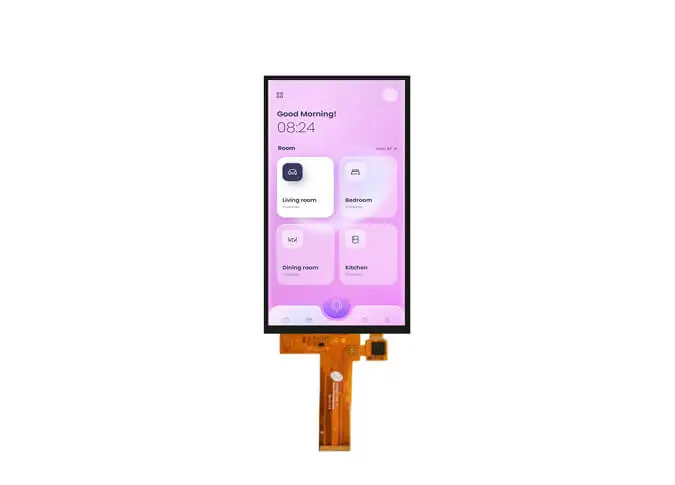

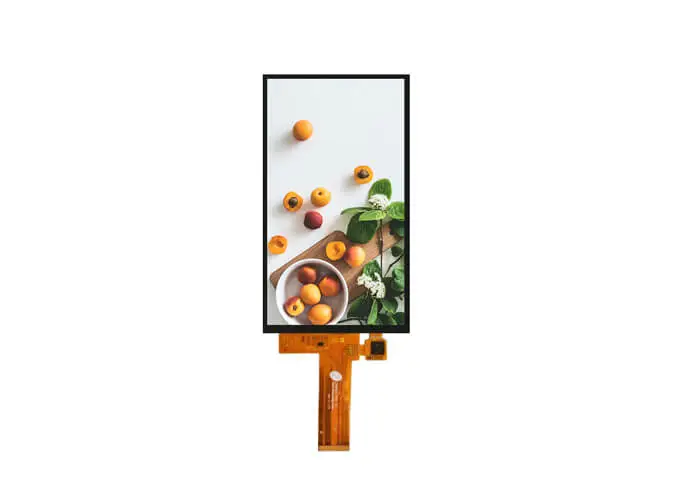

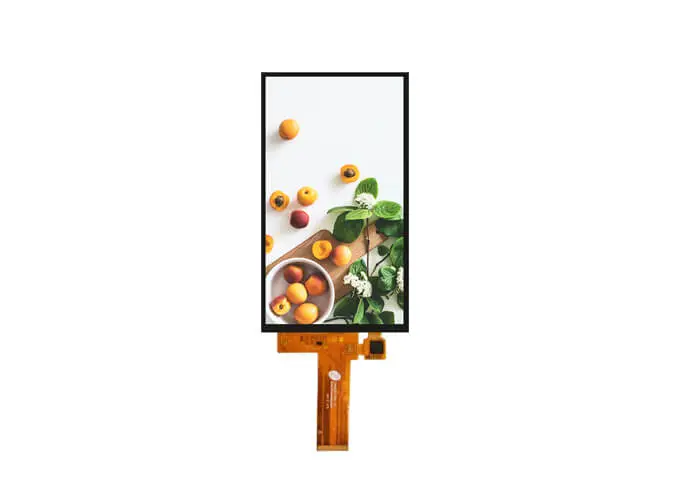

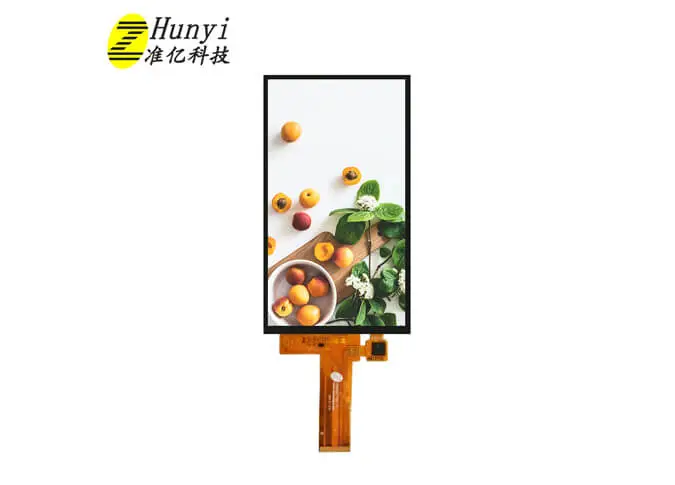

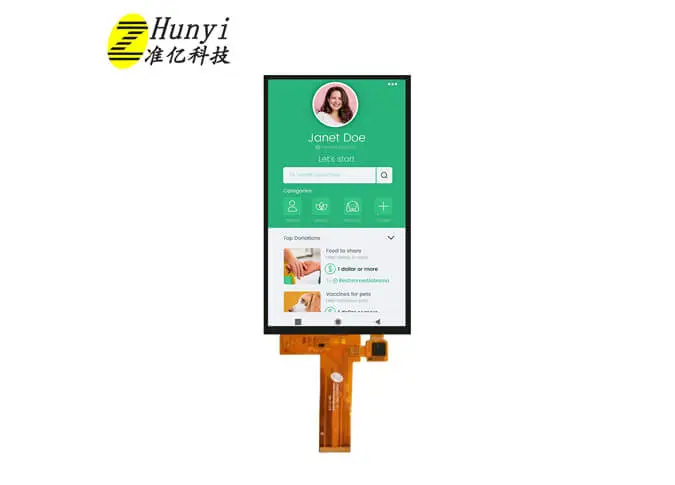

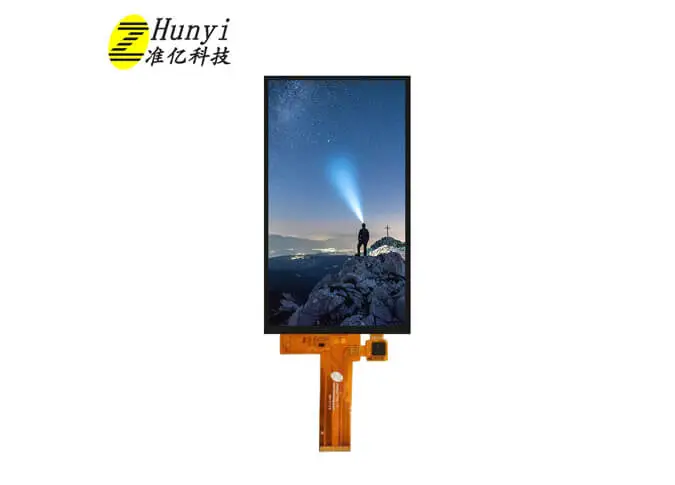

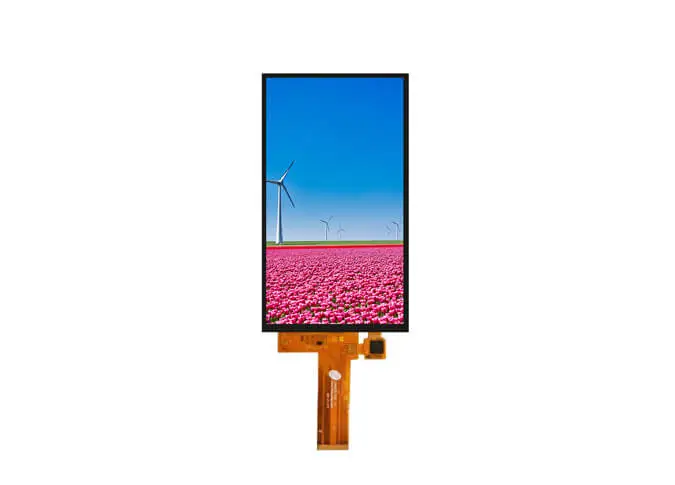

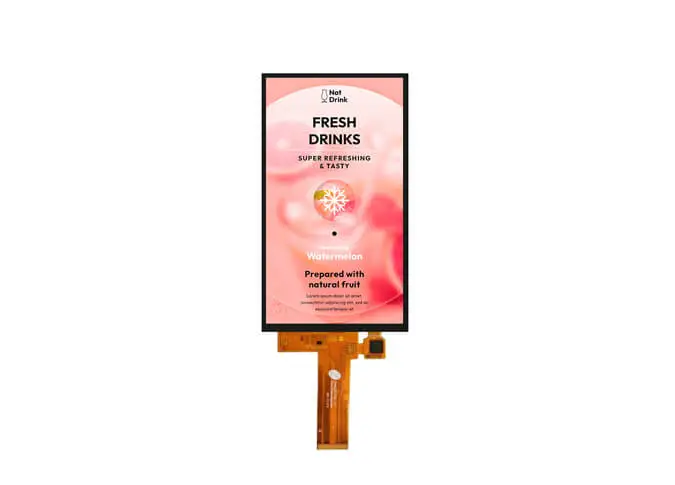

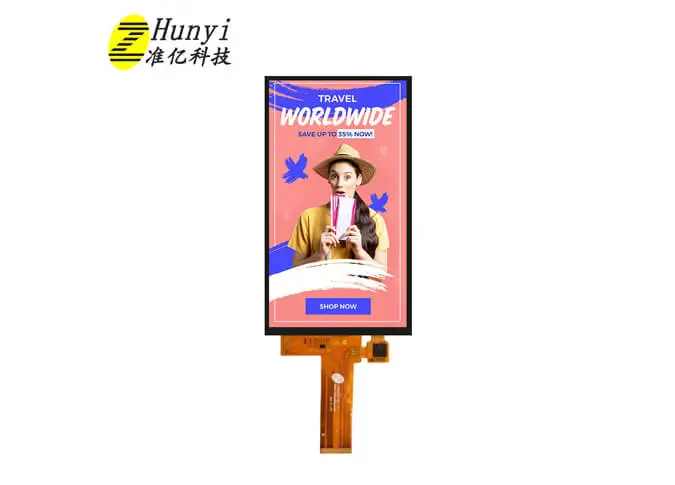

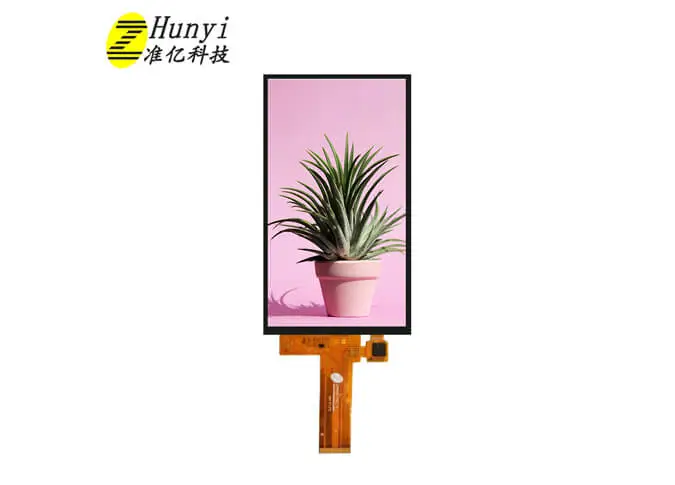

Z49420-ZC handelt sich um eine farbig aktive Matrix-Dünnschicht transistor (TFT)-Flüssig kristall anzeige (LCD) mit kapazitivem Touch panel, QVGA 720*1280. Dieser TFT-TouchQuadratisches TFT-LCD-DisplayIst eingebauter GH1001 LCD-Treiber IC und GT911 Touch-Controller. Dieses a-Si TFT LCD-Touch-Modul kommt mit MIPI und I2C Schnitts telle. Mehrpunkt-Touch.
Wenn Sie spezielle Anforderungen haben, wie Laufwerk IC, Schnitts telle, FPC, Touch panel, Hintergrund beleuchtung, Helligkeit, Farbe usw., können wir zur Verfügung stellenMaßge schneiderte TFT LCDFür dich.
Als einer derGroßhandel Touchscreen-Fabriken, Unsere Fabrik führen ISO 9001: 2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Display ROHS, REACH-Zertifizierung bestanden.
Dieser 4,9-Zoll-LCD-Touchscreen ist weit verbreitet in visueller Türklingel, E-Brieftasche, POS, Game-Player, kosmetisches Instrument, Haushalts gerät, QRcode-Scanner, Smart Home, Industrie-Handheld, Outdoor, HMI, E-Bike, Elektro fahrzeug, Armaturen brett, Tacho usw.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 4.9 | inch |
2 | Display Resolution | 720 (H) × RGB × 1280 (V) | pixels |
3 | Pixel Pitch | 29.5 (H) × 88.5 (V) | um |
4 | LCM Outline Dimension (Without FPC） | 65.89 (W) × 119.91 (H) × 1.65 (T) | mm |
5 | LCD Outline Dimension | 65.692 (W) × 119.608 (H) × 0.4 (T) | mm |
6 | TLCM Outline Dimension (Without FPC） | 69.74 (W) × 125.53 (H) × 3.18 (T) | mm |
7 | LCD Active Area | 63.72 (W) × 113.28 (H） | mm |
8 | View Direction (Gray Inversion) | FULL VIEW | - |
9 | Driver IC | GH1001 | - |
10 | Pixel Arrangement | RGB-Stripe | - |
11 | Display Mode | Normal Black | - |
12 | Pixel driving Element | a-Si TFT | - |
13 | LCD Transmittance | Typ.: 3.2% Min: 2.72% | - |
14 | LCD Contrast Ratio | Typ.: 1200 Min: 1000 | - |
15 | FPC Version | Z49420-P30H V1 | - |
16 | Interface | MIPI | - |
17 | Operating Temperature | -20°C~ 70°C | - |
18 | Storage Temperature | -30°C~ 80°C | - |
19 | Backlight Arrangement | LED/6 Series 2 Parallel (10 lights in total) | - |
20 | Luminance | 320 | nit |
21 | Weight | 0.053 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | VDD_5V | POWER SUPPLY (5V） |
2 | VDD_LCD | POWER SUPPLY |
3 | LCD_BL_PWM | Connecting with the external BL driver |
4 | LCD_RST | LCM RESET PIN |
5 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
6 | LEDA | POWER SUPPLY+ FOR BACKLIGHT ANODE |
7 | TOUCH_RST_L | TP RESET PIN |
8 | TOUCH_INT_H | TP Interrupt PIN |
9 | VCC3V0_TOUCH | TP POWER SUPPLY (3V) |
10 | GND | Ground |
11 | I2C4_SCL | TP I2C clock (SCL) clock (SCLK) |
12 | I2C4_SDA | TP I2C data (SDA) data input (MOSI) |
13-14 | NC | No Connection |
15-17 | GND | Ground |
18 | LCD_EN | LCM Data enable signal |
19 | CLKP | Positive MIPI differential CLOCK input |
20 | CLKN | Negative MIPI differential CLOCK input |
21 | DSI_D0P | Positive MIPI differential data input |
22 | DSI_D0N | Negative MIPI differential data input |
23 | DSI_D1P | Positive MIPI differential data input |
24 | DSI_D1N | Negative MIPI differential data input |
25-26 | NC | No Connection |
27 | DSI_D2P | Positive MIPI differential data input |
28 | DSI_D2N | Negative MIPI differential data input |
29 | DSI_D3P | Positive MIPI differential data input |
30 | DSI_D3N | Negative MIPI differential data input |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | TOUCH_RST_L | TP RESET PIN |
2 | TOUCH_INT_H | TP Interrupt PIN |
3 | VCC3V0_TOUCH | TP POWER SUPPLY (3V) |
4 | GND | Ground |
5 | I2C4_SCL | TP I2C clock (SCL) clock (SCLK) |
6 | I2C4_SDA | TP I2C data (SDA) data input (MOSI) |

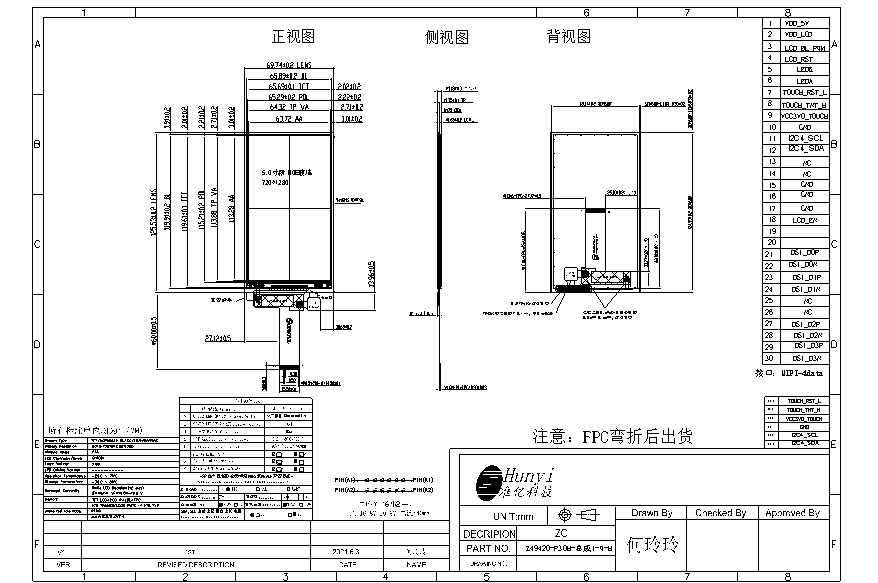

3.1 LCM
3.2 TLCM
