Z40035 4 Zoll LCD Display TFT Typ 40PIN MIPI Schnitts telle ST7701S Controller

  • Größe: 4 Zoll

  • Auflösung: 480*800

  • Schnitts telle: MIPI

  • Ansicht winkel: IPS

  • Helligkeit: 350 cd/m²

  • Touch Panel: Unterstützung CTP/RTP

  • Versorgungs typ: Fabrik/Hersteller

  • Zertifizierung: ISO9001, IATF16949, ROHS, REACH

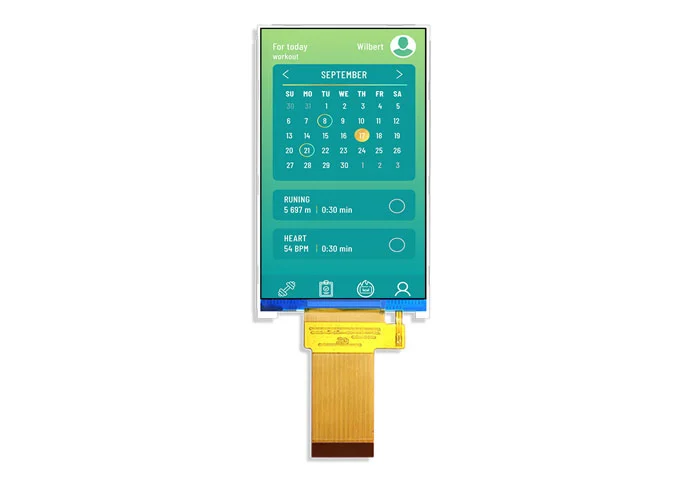

4 inch tft lcd display
4 inch tft lcd display

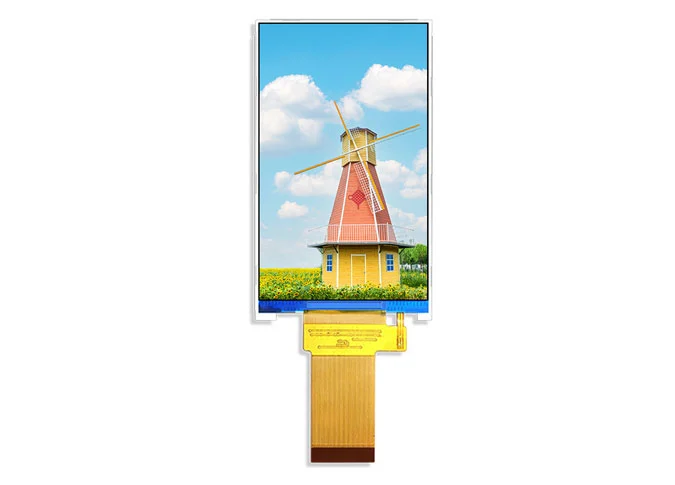

4 inch tft lcd display wholesale

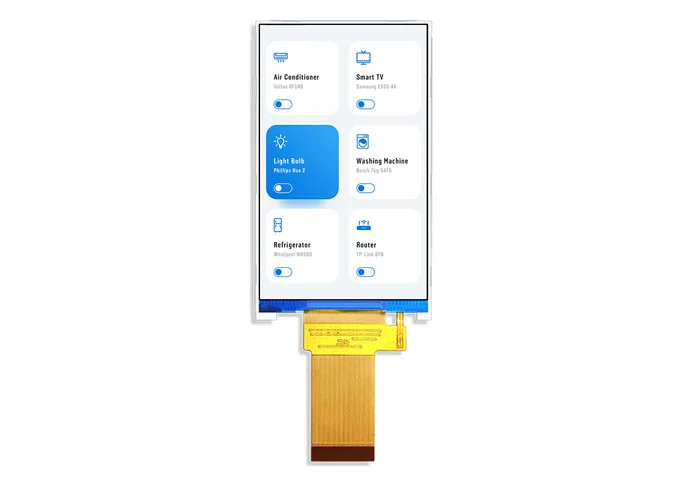

4 inch tft lcd display manufacturer

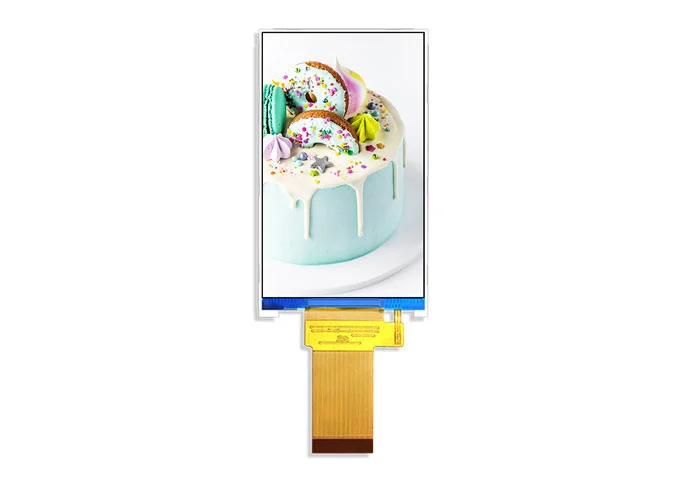

4 inch tft lcd display bulk

Überblick über Z40035 4 Zoll LCD Display TFT Typ 40PIN MIPI Schnitts telle ST7701S Controller

1

Z40032 ist eine farbige aktive Matrix-Dünnschicht transistor (TFT) Flüssig kristall anzeige (LCD) mit 480*800 Auflösung. Durch die IPS-Technik (In-Plane Switching) hat dieses 4 "LCD-Modul einen größeren Blickwinkel. DieseQuadratisches LCD-DisplayIst eingebauter ST7701S Treiber IC. Dieses a-Si TFT LCD-Modul kommt mit MIPI-Schnitts telle, 350 cd/m² Helligkeit.

2

Wenn Sie spezielle Anforderungen haben, wie Laufwerk-IC-Schnitts telle, FPC, Touch-Panel, Hintergrund beleuchtung usw., alsCustom LCD-Bildschirm Hersteller, Wir können auch für Sie anpassen.

3

Als einer derGroßhandel Touchscreen-Fabriken, Unsere Fabrik führen ISO 9001: 2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Display bestanden ROHS, REACH-Zertifizierung.

4

Der 4-Zoll-LCD-Bildschirm ist weit verbreitet in visueller Türklingel, E-Brieftasche, POS, Game-Player, kosmetisches Instrument, Haushalts gerät, QRcode-Scanner, Infrarot temperatur, Übersetzer, Smart Home, industrie-Handheld, Outdoor, HMI, etc.

Specifications of 4 Inch LCD Display TFT Type 40PIN MIPI Interface ST7701S Controller


Item

Main Display

Unit

Number of Pixels

480 * RGB * 800

Pixel

LCM Outline Dimension

55.44 (W) * 96.15 (H) * 1.71 (T)

mm

LCD Outline Dimension

54.74 (W) * 93.35 (H) * 0.4 (T)

mm

Active Area

51.84 * 86.4

mm

Pixel Pitch

108 *108

um

Display Mode

Normal Black


Pixel Arrangement

R.G.B. Vertical Stripe


Viewing Direction

Free


Color Configuration

RGB


LCD Transmittance

Typ: 4.03%; Min: 3.4%


LCD Contrast Ratio

Typ: 800; Min: 600


FPC Version

Z40035-P40W-M V1


Interface

MIPI


Operating Temperature

-20℃ ~ 70℃


Storage Temperature

-30℃ ~ 80℃


Backlight arrangement

LED / 8 parallel


Luminance

-


Weight

-



LCM-Pin Assignments of 4 Inch LCD Display TFT Type 40PIN MIPI Interface ST7701S Controller


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

D0P

MIPI-DSI Data differential signal input pins. (Data lane 0)

3

D0N

MIPI-DSI Data differential signal input pins. (Data lane 0)

4

GND

Ground

5

D1P

MIPI-DSI Data differential signal input pins. (Data lane 1)

6

D1N

MIPI-DSI Data differential signal input pins. (Data lane 1)

7

GND

Ground

8

CLKP

MIPI-DSI CLOCK differential signal input pin

9

CLKN

MIPI-DSI CLOCK differential signal input pin

10

GND

Ground

11

NC

NC

12

NC

NC

13

GND

Ground

14

NC

NC

15

NC

NC

16

GND

Ground

17

GND

Ground

18

IOVCC

I/O POWER SUPPLY(1.8V)

19

IOVCC

I/O POWER SUPPLY(1.8V)

20-23

NC

NC

24

RES

Reset pin(1.8V)

25

NC

NC

26

NC

NC

27

GND

Ground

28

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

29

LED-K

POWER SUPPLY- FOR BACKLIGHT CATHODE

30

GND

Ground

31

NC

NC

32

GND

Ground

33

GND

Ground

34

NC

NC

35

LED-A

POWER SUPPLY+ FOR BACKLIGHT

36

LED-A

POWER SUPPLY+ FOR BACKLIGHT

37

GND

Ground

38

VCC

POWER SUPPLY(2.8V)

39

VCC

POWER SUPPLY(2.8V)

40

NC

NC

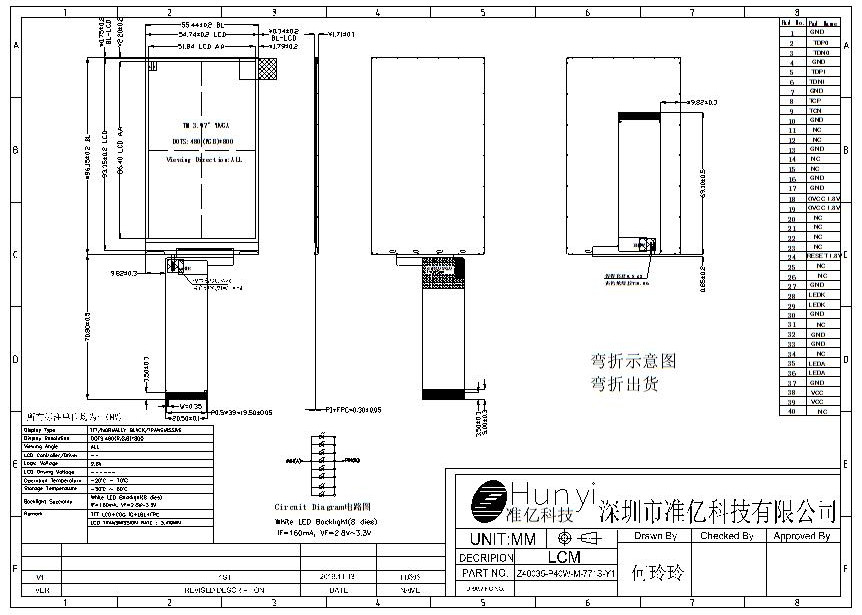

Mechanical Drawing of 4 Inch LCD Display TFT Type 40PIN MIPI Interface ST7701S Controller


Mechanical Drawing of 4 Inch LCD Display TFT Type 40PIN MIPI Interface ST7701S Controller
