Z37001 3,71 Zoll 240*960 LCD-Display IPS-Ansicht 45PIN SPI RGB-Schnitts telle ST7701S Controller

  • Größe: 3,71 Zoll

  • Auflösung: 240*960

  • Schnitts telle: SPI RGB

  • Ansicht winkel: IPS

  • Helligkeit: 300 cd/m²

  • Touch Panel: Unterstützung CTP/RTP

  • Versorgungs typ: Fabrik/Hersteller

  • Zertifizierung: ISO9001, IATF16949, ROHS, REACH

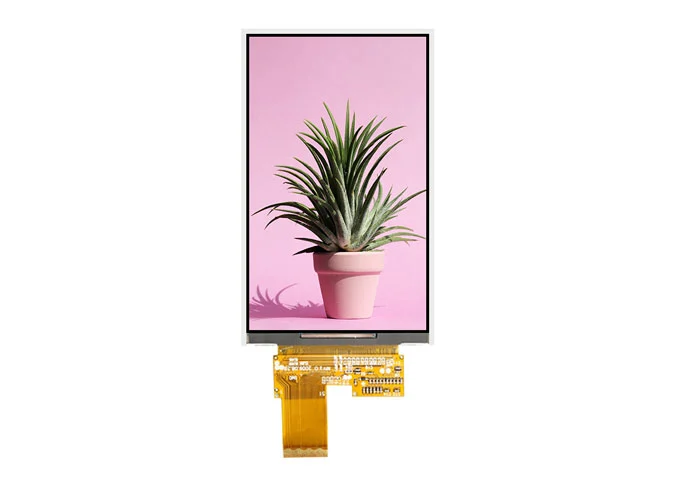

3.71

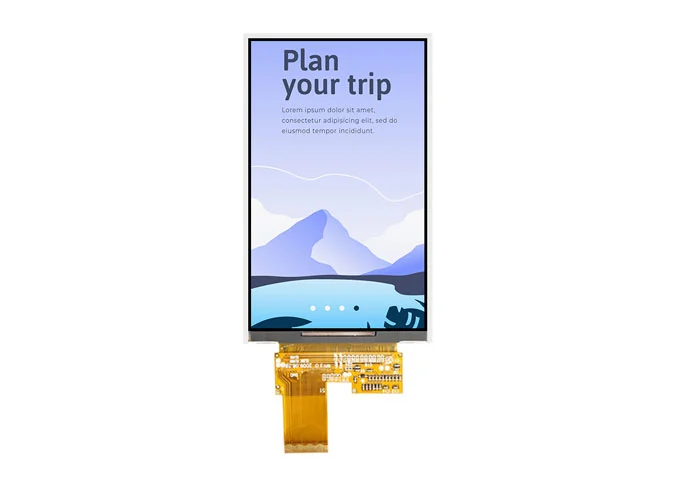

3.71

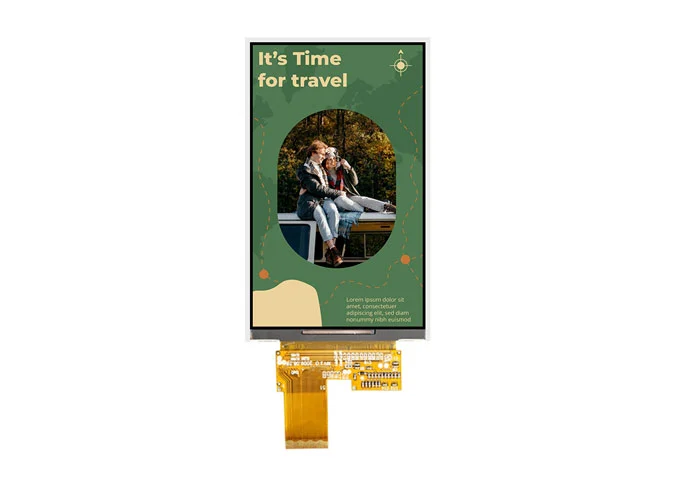

3.71
3.71
3.71

Übersicht über Z37001 3,71 Zoll 240*960 LCD-Display IPS-Ansicht 45PIN SPI RGB-Schnitts telle ST7701S Controller

1

Z37001 ist eine farbaktive Matrix-Dünnschicht transistor (TFT) Flüssig kristall anzeige (LCD) mit 240*960 Auflösung. Durch die IPS-Technik (In-Plane Switching) hat dieses 3,71 "LCD-Modul einen größeren Blickwinkel. Dieses LCD-Display ist eingebauter ST7701S-G5 Treiber IC. Dieses a-Si TFT LCDAmoled modulKommen mit SPI RGB-Schnitts telle, 300 cd/m² Helligkeit.

2

Wenn Sie spezielle Anforderungen haben, wie Antriebs-IC-Schnitts telle, FPC, Touch-Panel, Hintergrund beleuchtung usw., können wir zur Verfügung stellenCustom LCD-ModulFür dich.

3

Als einer der ProfisChina LCD-HerstellerUnsere Fabrik führen ISO 9001: 2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Display bestanden ROHS, REACH-Zertifizierung.

4

Der 3,71-Zoll-LCD-Bildschirm im Bar-Stil ist in der Industrie, HMI, Flugzeug, Fahrzeug-Armaturen brett, Smart Hom usw. weit verbreitet.

Specifications of 3.71 Inch 240*960 LCD Display IPS View 45PIN SPI+RGB Interface ST7701S Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.71

inch

2

Display Resolution

240 (H) × RGB × 960 (V)

pixels

3

Pixel Pitch

0.09525 (H) × 0.09525 (V)

Mm

4

LCM Outline Dimension

(Without FPC)

25.3 (W) × 98.89 (H) × 1.61 (T)

mm

5

LCD Outline Dimension

-

mm

6

LCD Active Area

22.86 (W) × 91.44 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

-

-

14

FPC Version

Z37001-P45H V1

-

15

Interface

3SPI+16 bits RGB Interface

-

16

Operating Temperature

-20°C~ 60°C

-

17

Storage Temperature

-30°C~ 70°C

-

18

Backlight Arrangement

White LED 4

-

19

Luminance

TBD

nit

20

Weight

-

kg


Interface Definition Description of 3.71 Inch 240*960 LCD Display IPS View 45PIN SPI+RGB Interface ST7701S Controller


Pin No.

Symbol

LCM Functional

1~2

LEDA

Power supply for backlight anode input terminal.

3~5

LEDK

Power supply for backlight cathode input terminal.

6~7

GND

Power Ground

8~9

VCC

Power supply: 2.6V ~ 3.3V

10

RESET

Reset signal input terminal. Active at 'L'.

11

NC

NC

12

SDA

Input/Output signal pin

13

SCL

Serial interface clock

14

CS

Chip select signal input pin

15

DCLK

Dot clock signal for RGB interface operation.

16

DE

Data enable signal for RGB interface operation.

17

VSYNC

Vertical (Frame) synchronizing input signal for RGB interface operation.

18

HSYNC

Horizontal (Line) synchronizing input signal for RGB interface


19~34


DB0~DB15

RGB interface data bus.

DB(0~4): B0~B4, DB(5~10): G0~G5, DB(11~15): R0~R4

35~37

GND

Power Ground

38

CTP_INT3.3V

Touch panel interrupt output

39

CTP_SDA3.3V

Touch panel I2C data

40

CTP_SCL3.3V

Touch panel I2C clock

41

CTP_RST3.3V

Touch panel reset

42~43

CTP_VDD3.3V

Touch panel Power supply 2.8~3.3V

44~45

CTP_GND

Power Ground


Mechanical Drawing of 3.71 Inch 240*960 LCD Display IPS View 45PIN SPI+RGB Interface ST7701S Controller


Mechanical Drawing of 3.71 Inch 240*960 LCD Display IPS View 45PIN SPI+RGB Interface ST7701S Controller
