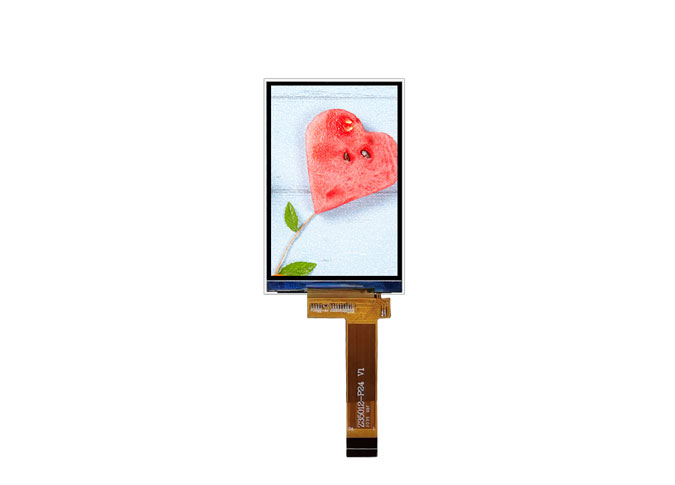

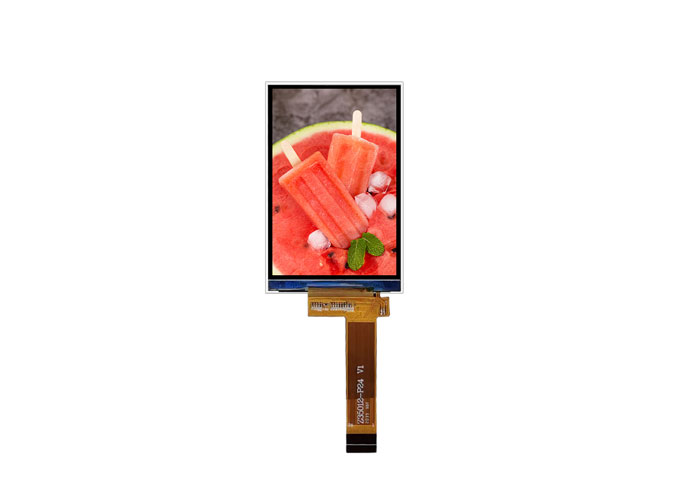

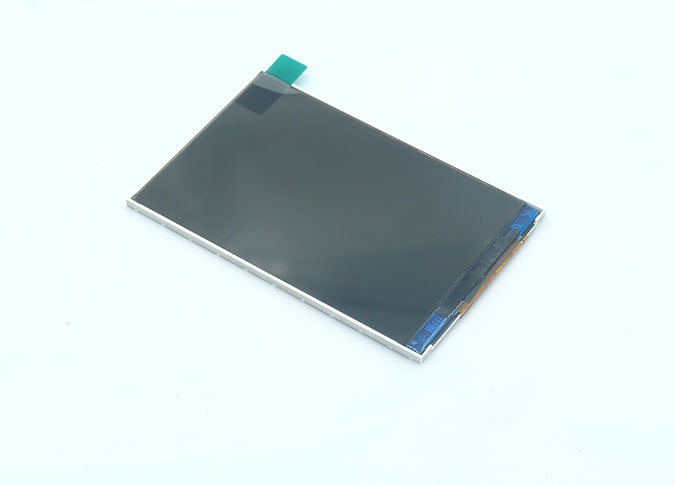

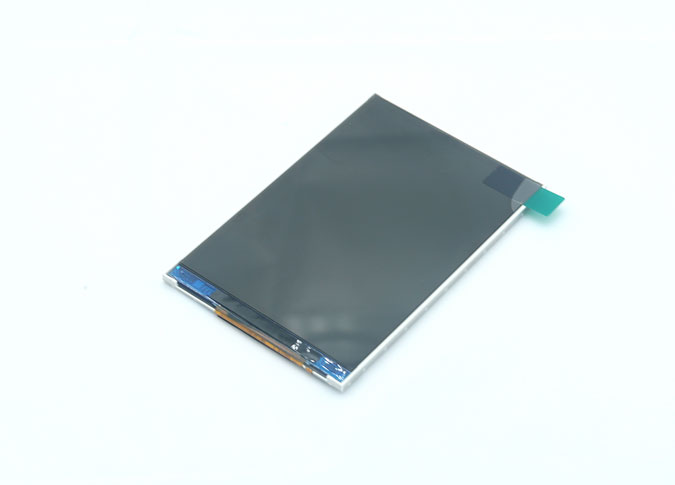

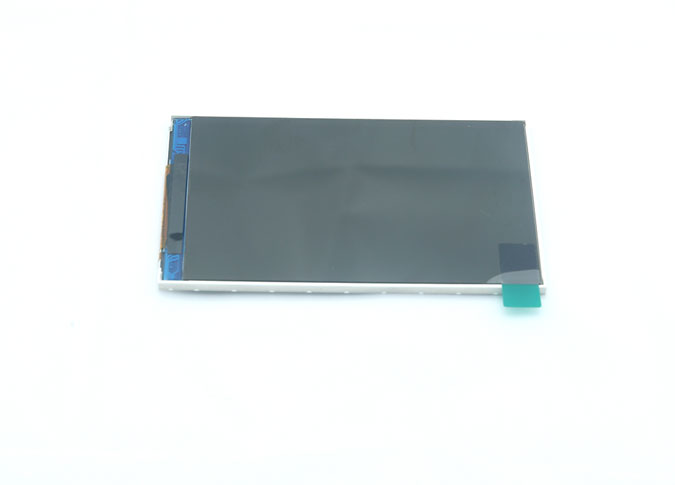

Z35012 3,5 Zoll TN TFT LCD-Bildschirm 320*480 ILI9488 Controller

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320 (H) × RGB × 480 (V)

pixels

3

Pixel Pitch

153 (H) × 153 (V)

um

4

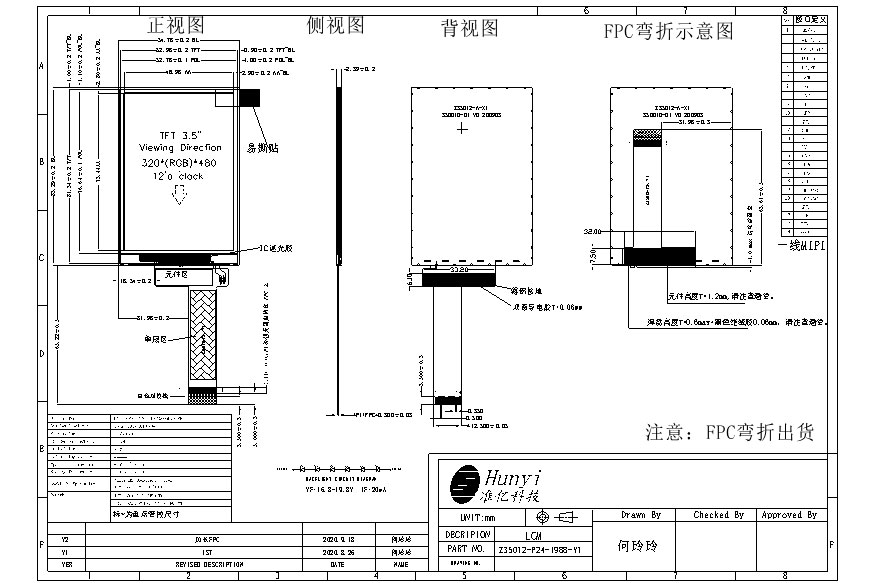

LCM Outline Dimension

(Without FPC）

54.76 (W) × 83.29 (H) × 2.39 (T)

mm

5

LCD Outline Dimension

52.96 (W) × 81.34 (H) × 0.8 (T)

mm

6

LCD Active Area

48.96 (W) × 73.44 (H)

mm

7

View Direction (Gray Inversion)

12'clock

-

8

Driver IC

ILI9488

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.50%

-

13

LCD Contrast Ratio

Typ.: 500

-

14

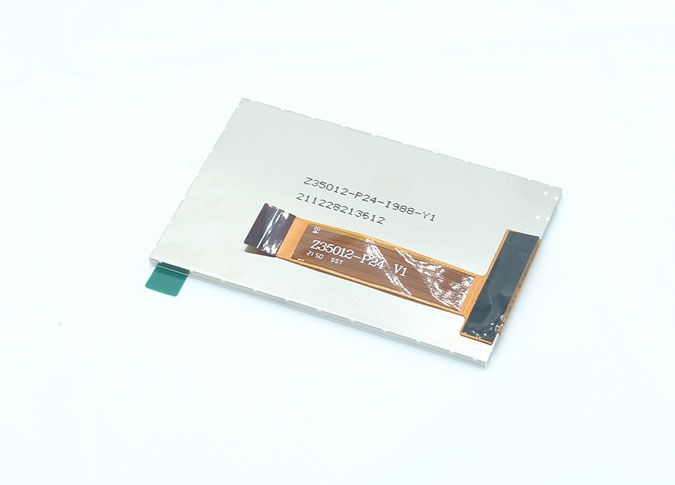

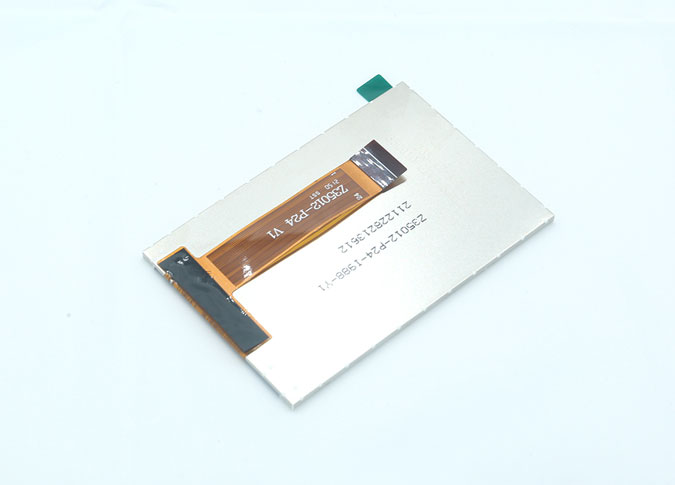

FPC Version

Z35012-P24 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-30°C~ 70°C

-

17

Storage Temperature

-40°C~ 85°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

340

nit

20

Weight

0.020

kg

1

IM0/NC

LCM IM PIN/No Connection

2

DVDD

POWER SUPPLY (2.8V）

3

IOVDD

I/O POWER SUPPLY (1.8V）

4

IM1/NC

LCM IM PIN/No Connection

5

RESET

LCM RESE PIN

6

GND

Ground

7-8

NC

No Connection

9

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

10

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

11-12

GND

Ground

13-14

NC

No Connection

15

GND

Ground

16

TDP0

Positive MIPI differential data input

17

TDN0

Negative MIPI differential data input

18

GND

Ground

19

TDP1(NC)

Positive MIPI differential data input(No Connection)

20

TDN1(NC)

Negative MIPI differential data input(No Connection)

21

GND

Ground

22

TCP

Positive MIPI differential CLOCK input

23

TCN

Negative MIPI differential CLOCK input

24

GND

Ground

RESET voltage should be consistent with IOVDD voltage, or there probably is black screen fault when power on.
