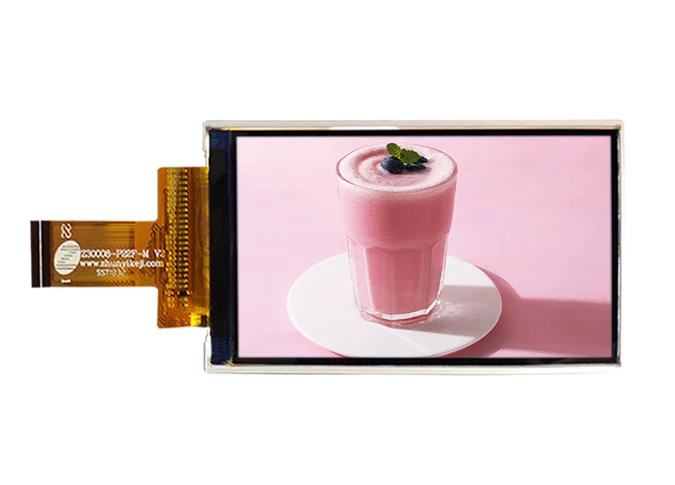

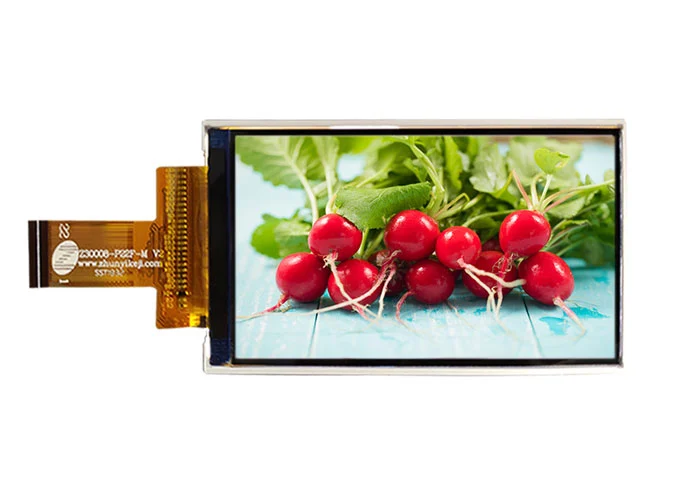

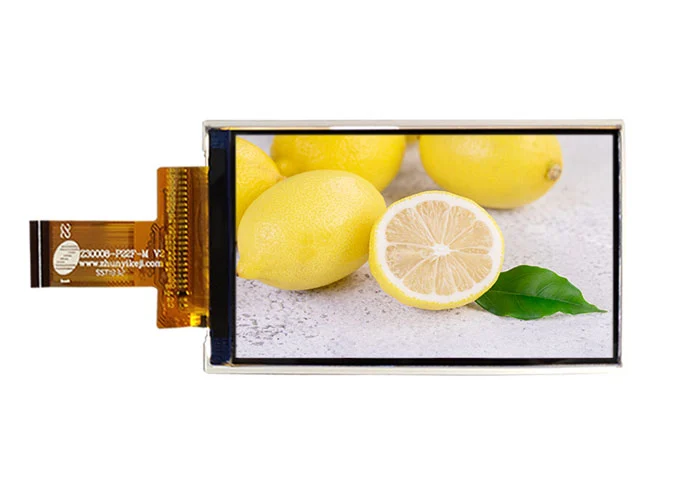

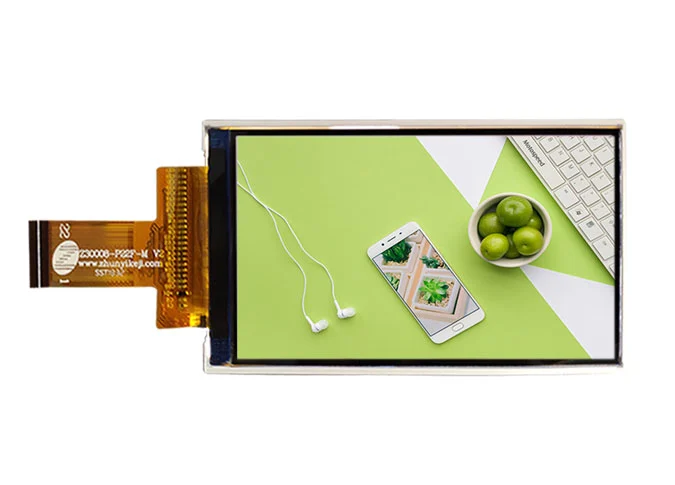

Z32015 3,2 Zoll 240*320 300Nits 12 Uhr ILI9341 4-Line SPI LCD-Modul

1

Display Size (Diagonal)

3.2

inch

2

Display Resolution

240 (H) × RGB × 320 (V）

pixels

3

Pixel Pitch

153 (H) × 153 (V）

um

4

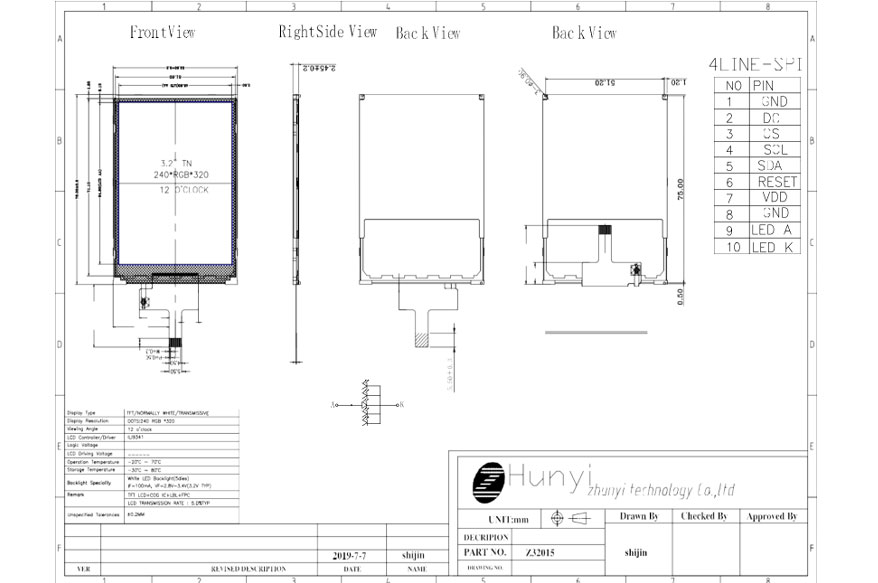

LCM Outline Dimension

(Without FPC）

53.6 (W) ×76.0 (H) ×2.45 (T)

mm

6

LCD Active Area

48.6 (W) × 64.8 (H)

mm

7

View Direction (Gray Inversion)

12 o'clock.

-

8

Driver IC

ILI9341

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal White

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: TBD

-

13

LCD Contrast Ratio

Typ.: 350

-

14

FPC Version

Z32015-P10 V1

-

15

Interface

4 line SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 5 Parallel (5 lights in total)

-

19

Luminance

Typ.:300

nit

20

Weight

TBD

kg

1

GND

Power ground

2

RS

Display data/command selection pin

3

CS

Chip selection pin

4

SCL

5

SDA

Spi interface input/output pin

6

RESET

This signal will reset the device and it must be applied to properly

7

VDD

Power supply for digitial circuit

8

GND

Power ground

9

LEDA

Power for LED back light anode

10

LEDK

Power for LED back light cathode

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
