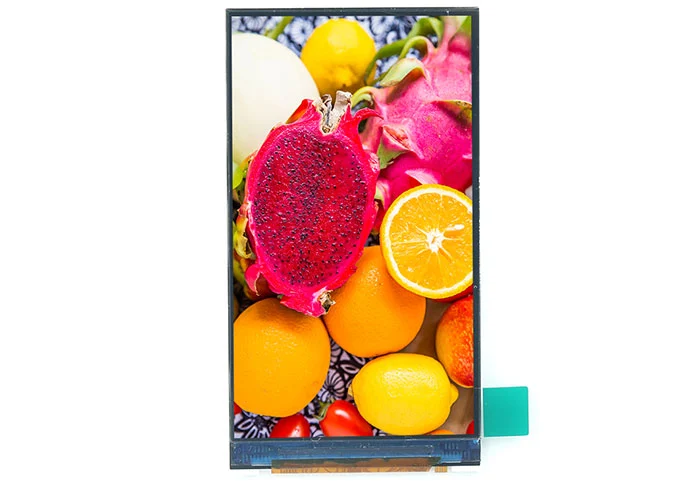

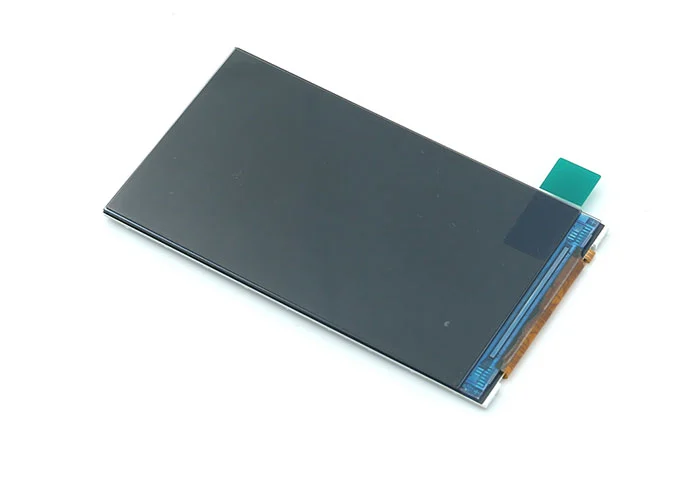

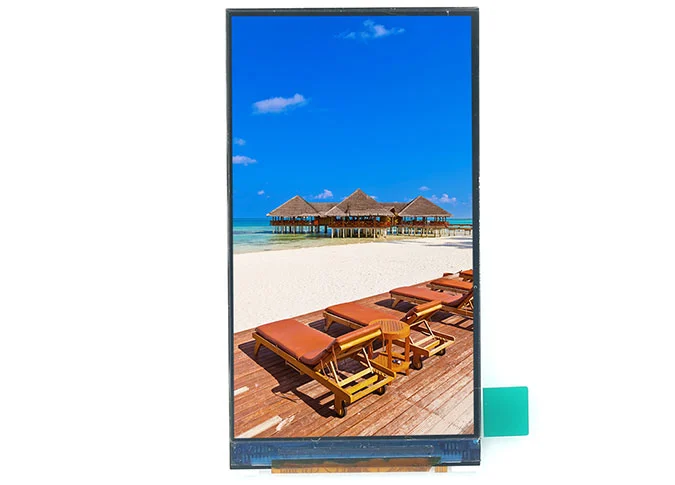

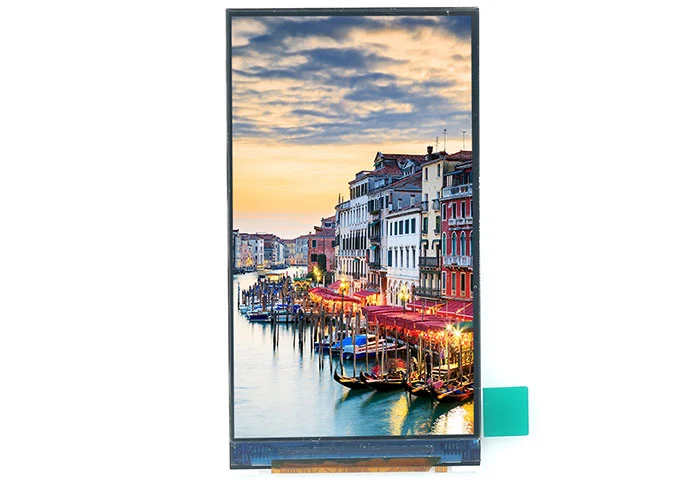

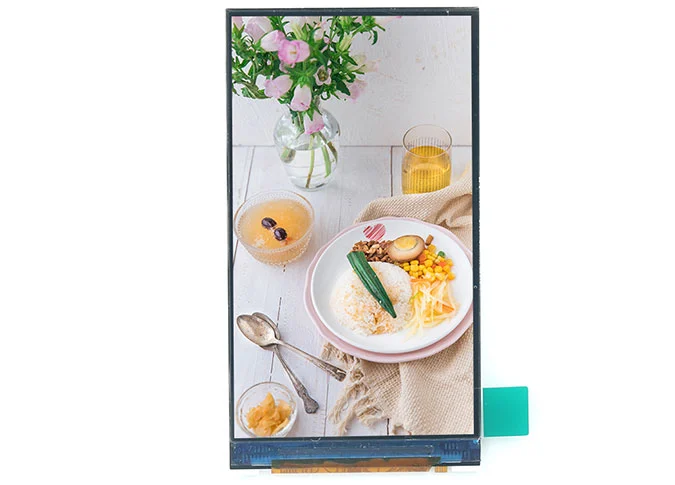

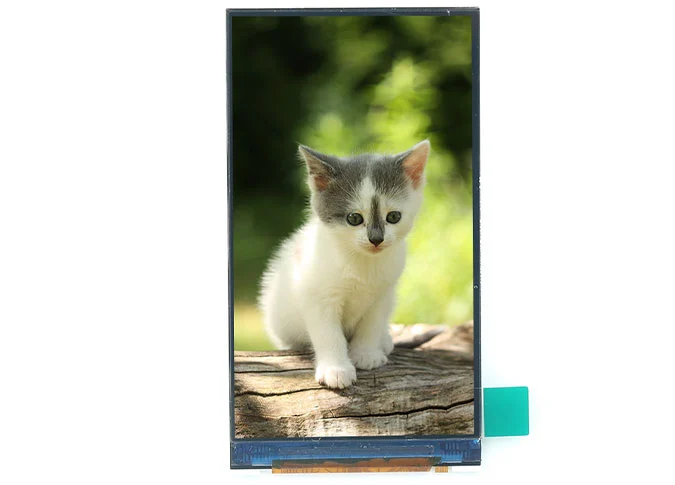

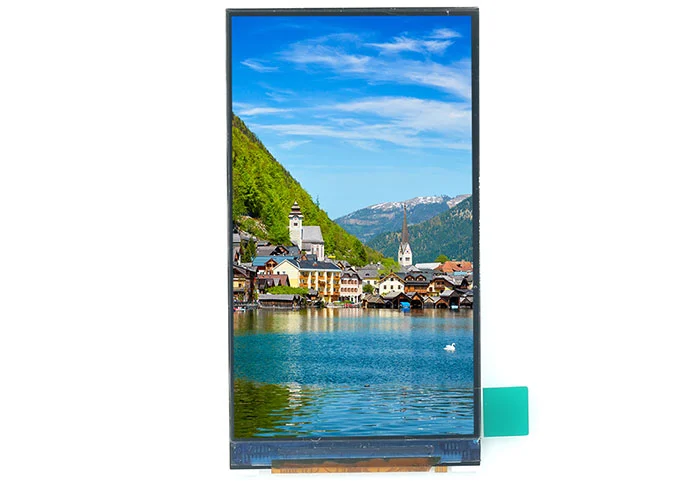

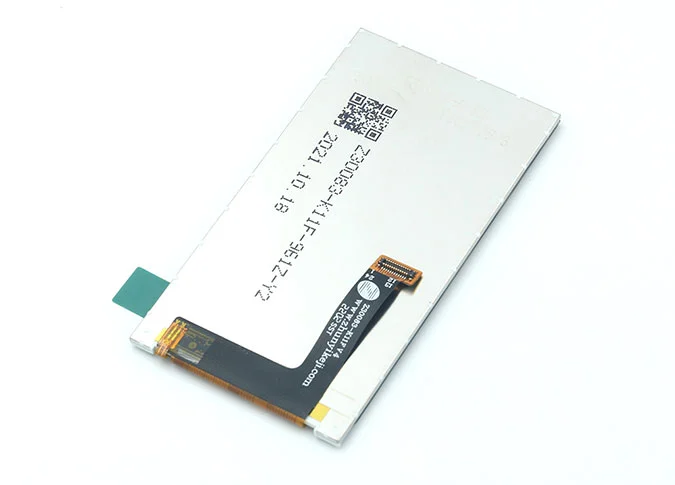

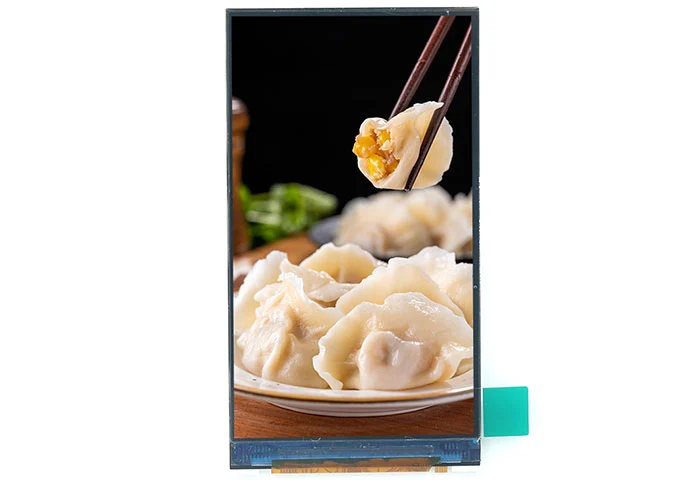

Z30083 Vertikale 3 Zoll TFT LCD 480*854 Auflösung 24PIN MIPI Schnitts telle 500 Nices

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V）

pixels

3

Pixel Pitch

26 (H) × 78 (V）

um

4

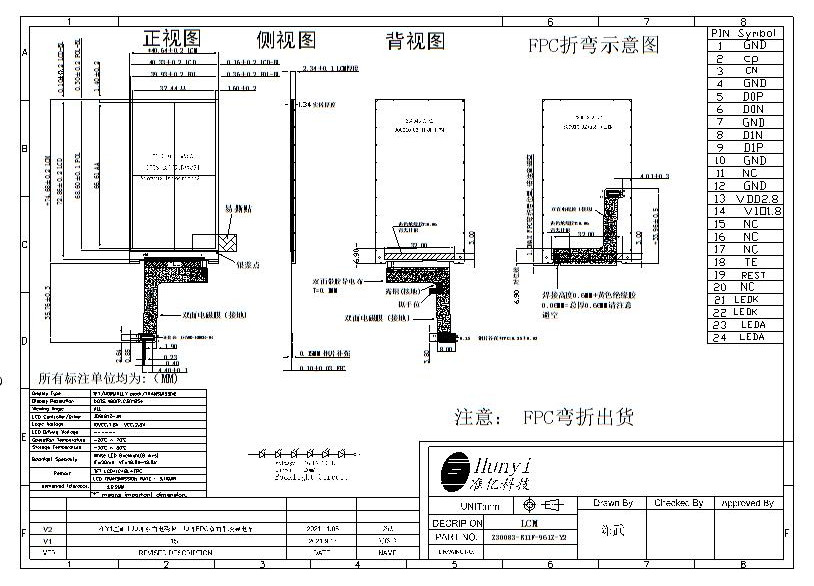

LCM Outline Dimension

(Without FPC）

40.64 (W) × 74.68 (H) × 2.34 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 1.0 (T)

mm

6

LCD Active Area

37.44 (W) × 66.61 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9161Z-JN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z30083-K11F V4

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

470

nit

20

Weight

0.015

kg

1

GND

Ground

2

CP

Positive MIPI differential CLOCK input

3

CN

Negative MIPI differential CLOCK input

4

GND

Ground

5

D0P

Positive MIPI differential data input

6

D0N

Negative MIPI differential data input

7

GND

Ground

8

D1P

Positive MIPI differential data input

9

D1N

Negative MIPI differential data input

10

GND

Ground

11

NC

No Connection

12

GND

Ground

13

VDD2.8

POWER SUPPLY (2.8V）

14

VIO1.8

I/O POWER SUPPLY (1.8V）

15-17

NC

No Connection

18

TE

Tearing Effect PIN

19

REST

LCM RESET PIN

20

NC

No Connection

21-22

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

23-24

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
