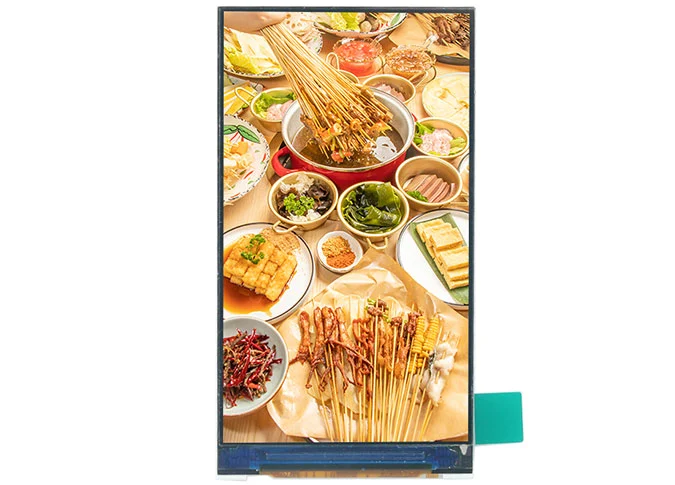

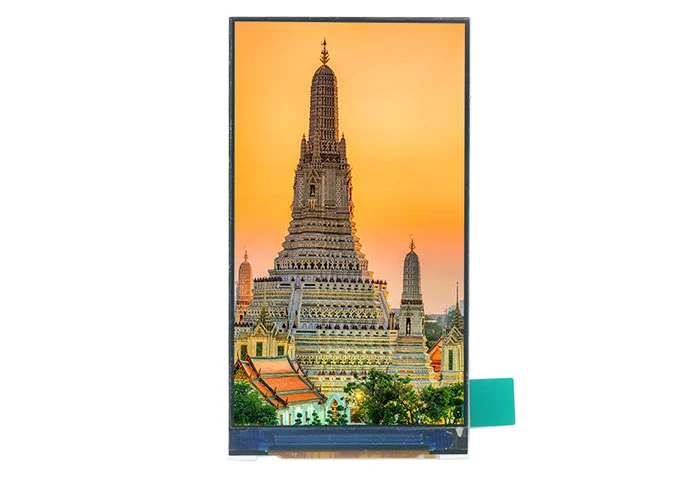

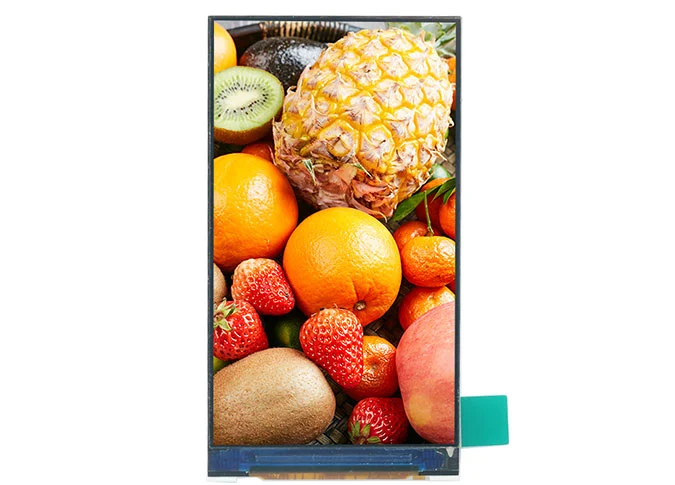

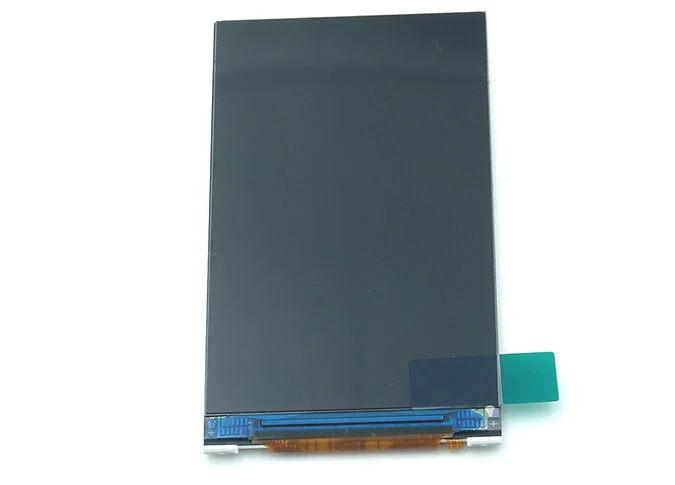

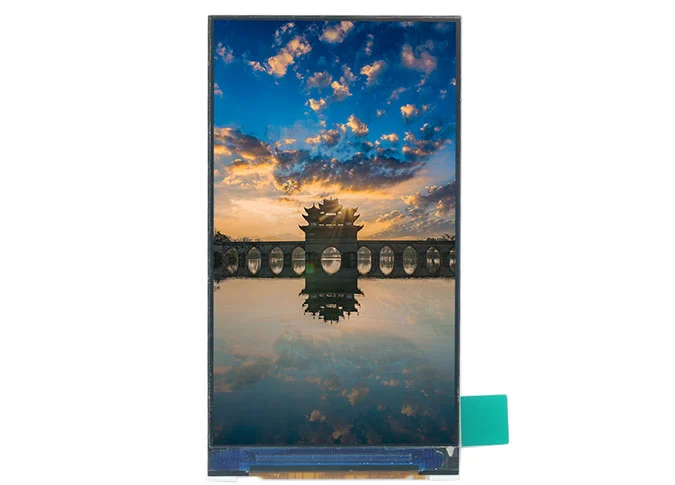

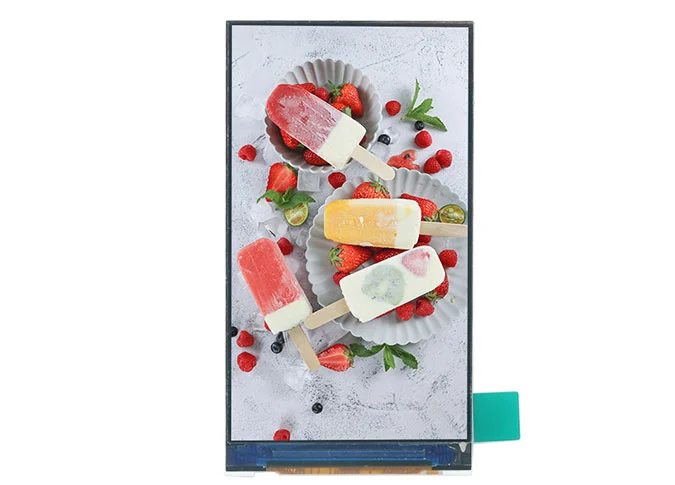

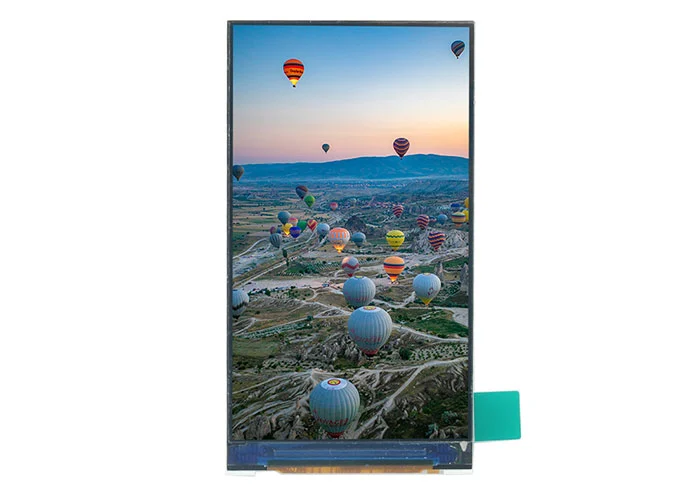

Z30079 3 Zoll 480*854 LCD-Bildschirm IPS-Ansicht Winkel 24PIN MIPI JD9161Z Controller

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V）

pixels

3

Pixel Pitch

26 (H) × 78 (V）

um

4

LCM Outline Dimension

(Without FPC）

40.64 (W) × 74.68 (H) ×1.74 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 0.4 (T)

mm

6

LCD Active Area

37.44 (W) × 66.61 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9161Z-JN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

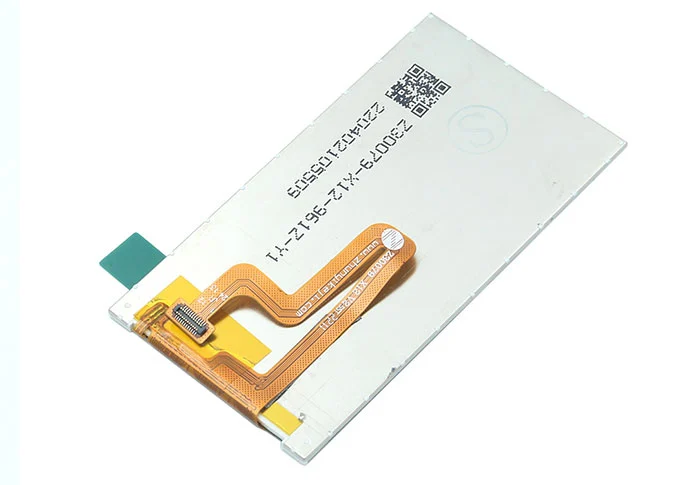

Z30079-X12 V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

380

nit

20

Weight

0.010

kg

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEKA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

TDP1

Positive MIPI differential data input

5

TDN1

Negative MIPI differential data input

6

GND

Ground

7

TCP

Positive MIPI differential CLOCK input

8

TCN

Negative MIPI differential CLOCK input

9

GND

Ground

10

TDP0

Positive MIPI differential data input

11

TDN0

Negative MIPI differential data input

12

GND

Ground

13-17

NC

No Connection

18

GND

Ground

19

RST

LCM RESET PIN

20

TE

Tearing Effect PIN

21

GND

Ground

22

VIO1V8

POWER SUPPLY (1.8V）

23

VDD3V

POWER SUPPLY (3V）

24

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
