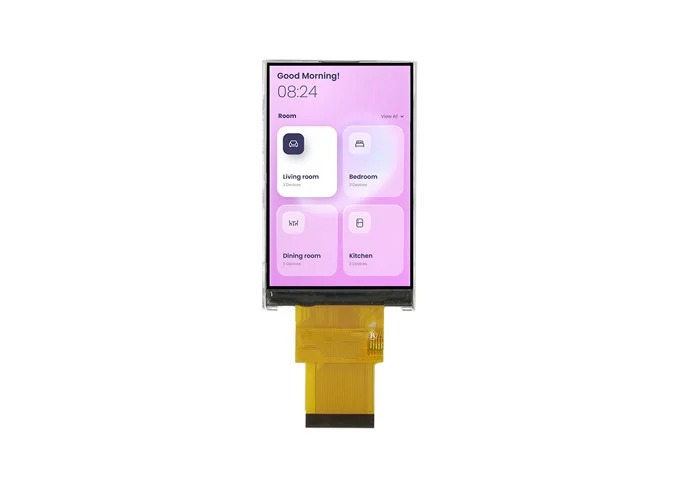

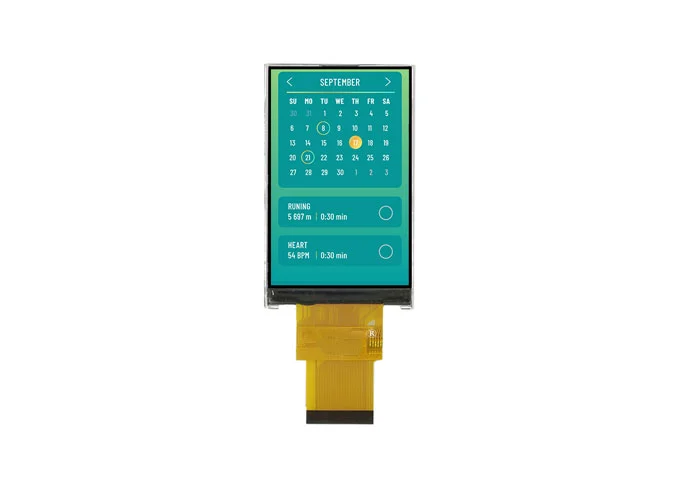

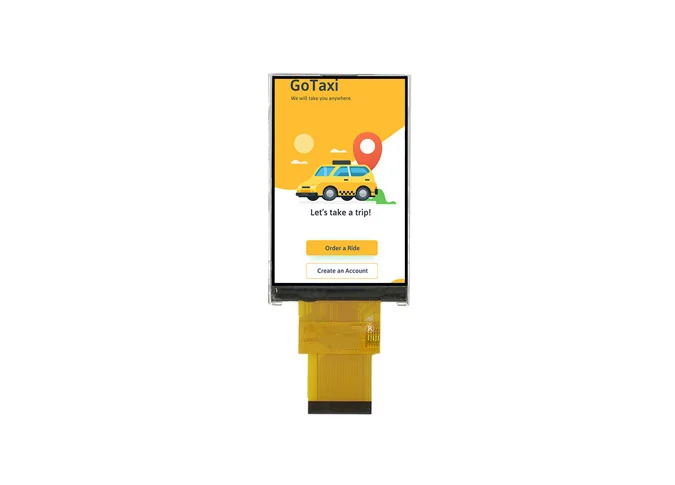

Z30074 3 Zoll TPS LCD-Modul 40PIN RGB SPI 480*854 520 Nits ST7701S Treiber IC

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V）

pixels

3

Pixel Pitch

26 (H) × 78 (V）

um

4

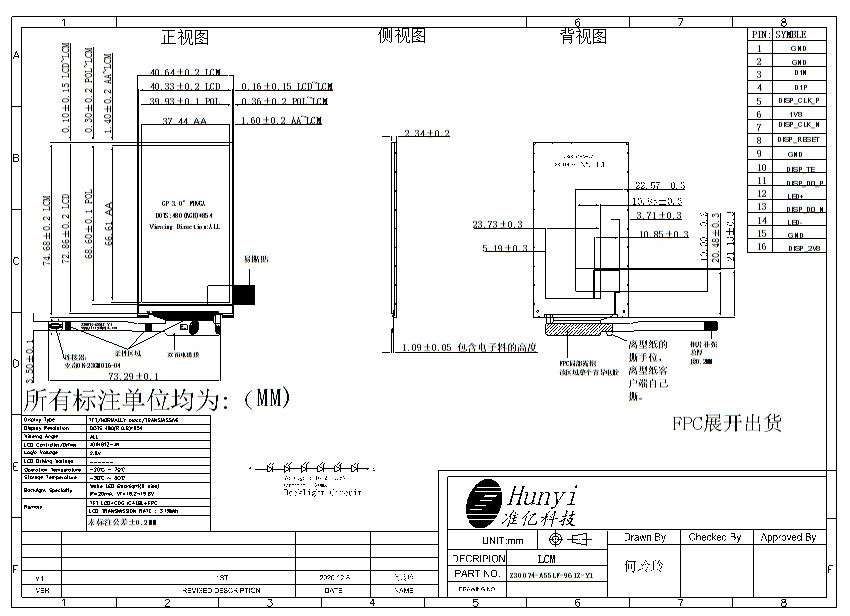

LCM Outline Dimension

(Without FPC）

40.64 (W) × 74.68 (H) × 2.34 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 1.0 (T)

mm

6

LCD Active Area

37.44 (W) × 66.61 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9161Z-JN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z30074-A55LF V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

480

nit

20

Weight

0.014

kg

1

GND

Ground

2

GND

Ground

3

DISP_D1_N

Negative MIPI differential data input

4

DISP_D1_P

Positive MIPI differential data input

5

DISP_CLK_P

Positive MIPI differential CLOCK input

6

1V8

POWER SUPPLY (1.8V)

7

DISP_CLK_N

Negative MIPI differential CLOCK input

8

DISP_RESET

LCM RESET PIN

9

GND

Ground

10

DISP_TE

Tearing Effect PIN

11

DISP_D0_P

Positive MIPI differential data input

12

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

13

DISP_D0_N

Negative MIPI differential data input

14

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

15

GND

Ground

16

DISP_2V8

POWER SUPPLY(2.8V)

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
