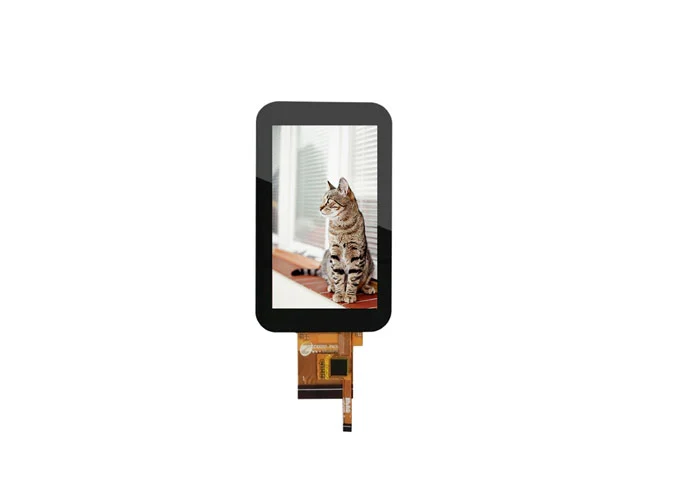

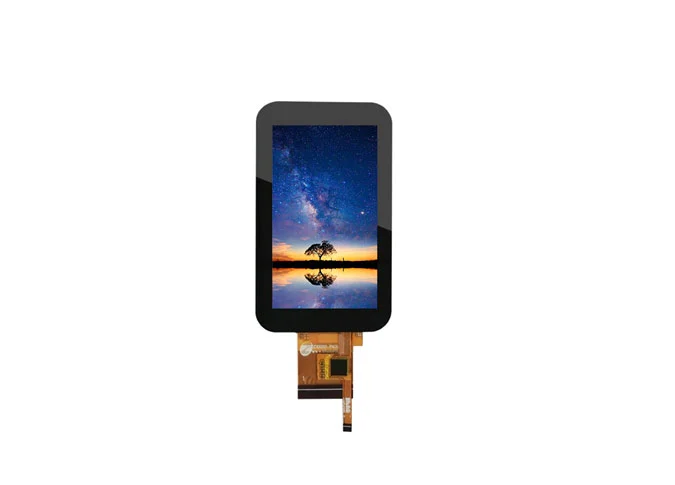

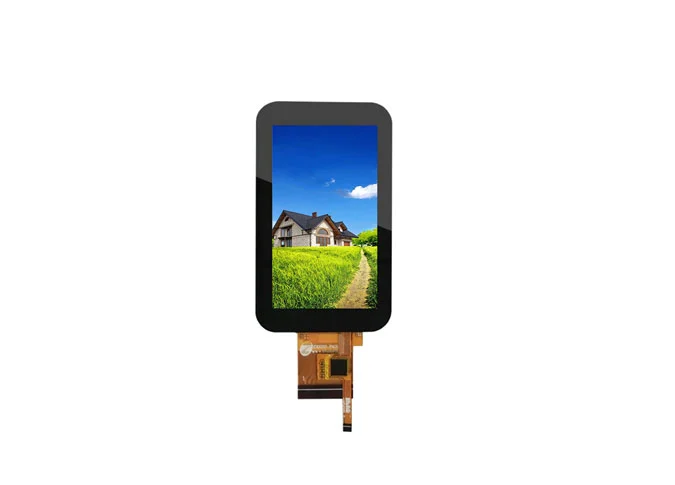

Z30071-ZC 480*854 MIPI-Schnitts telle 3 Zoll interaktives Display 40PIN IPS Ansicht ST7701S IC

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V)

pixels

3

Pixel Pitch

26 (H) × 78 (V）

um

4

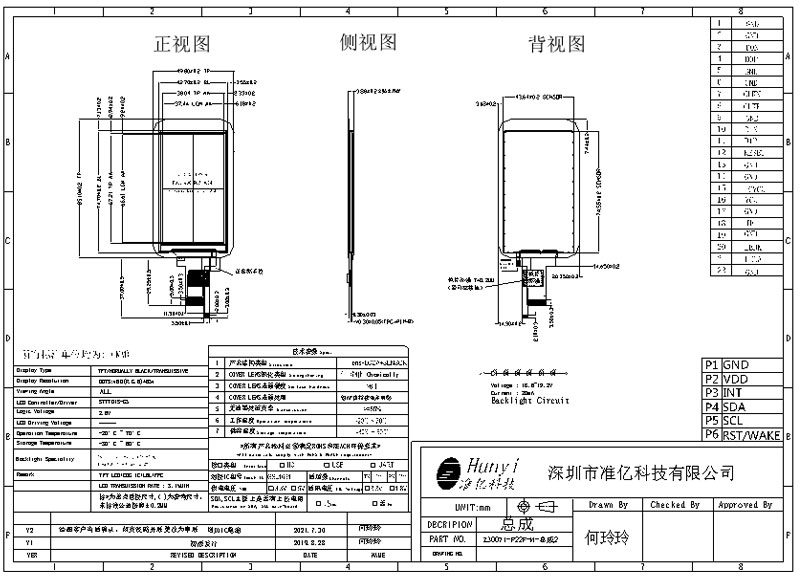

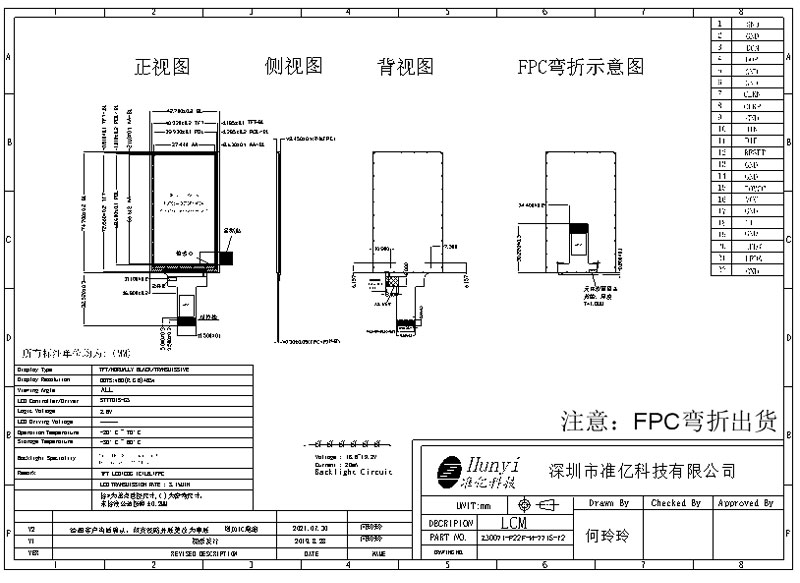

LCM Outline Dimension

(Without FPC）

42.70 (W) × 74.70 (H) × 2.45 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 1.0 (T)

mm

TLCM Outline Dimension

(Without FPC）

49.80 (W) × 85.10 (H) × 3.88 (T)

mm

6

LCD Active Area

37.44 (W) × 66.61 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z30056-P22F-M V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

TBD

nit

20

Weight

TBD

kg

1-2

GND

Ground

3

D0N

Negative MIPI differential data input

4

D0P

Positive MIPI differential data input

5-6

GND

Ground

7

CLKN

Negative MIPI differential CLOCK input

8

CLKP

Positive MIPI differential CLOCK input

9

GND

Ground

10

D1N

Negative MIPI differential data input

11

D1P

Positive MIPI differential data input

12

RESET

LCM RESET PIN

13-14

GND

Ground

15

IOVCC

I/O POWER SUPPLY

16

VCC

POWER SUPPLY

17

GND

Ground

18

TE

Tearing Effect PIN

19

GND

Ground

20

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

21

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

22

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.

1

GND

Ground

2

TP_VDD

TP POWER SUPPLY

3

TP_INT

TP Interrupt PIN

4

TP_SDA

TP I2C data (SDA) data input (MOSI)(1.8V)

5

TP_SCL

TP I2C clock (SCL) clock (SCLK)(1.8V)

6

TP_RST/WAKE

TP Reset PIN
