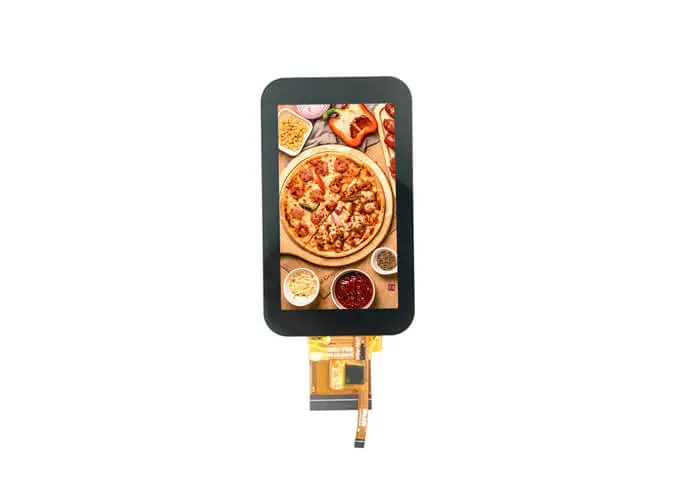

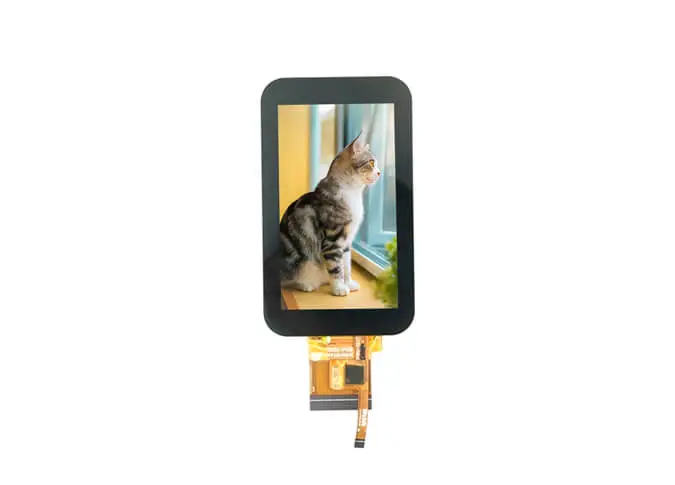

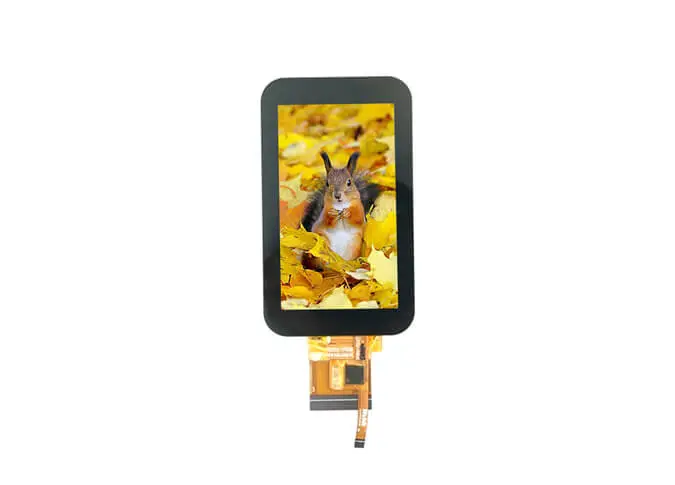

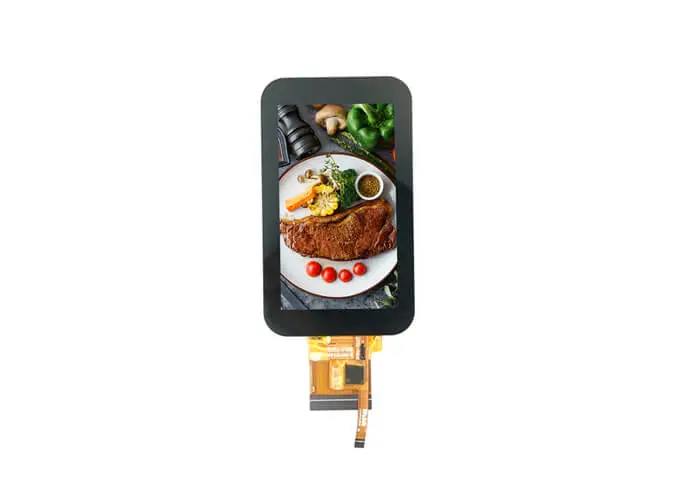

Z30010-ZC 3-Zoll-Touchscreen 480*854 kapazitive Panel 40PIN SPI RGB-Schnitts telle

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V)

pixels

3

Pixel Pitch

26 (H) × 78 (V）

um

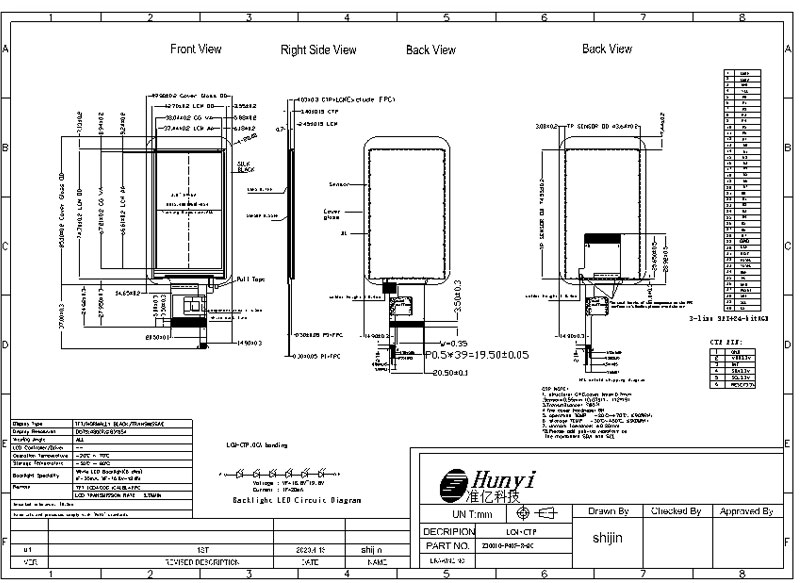

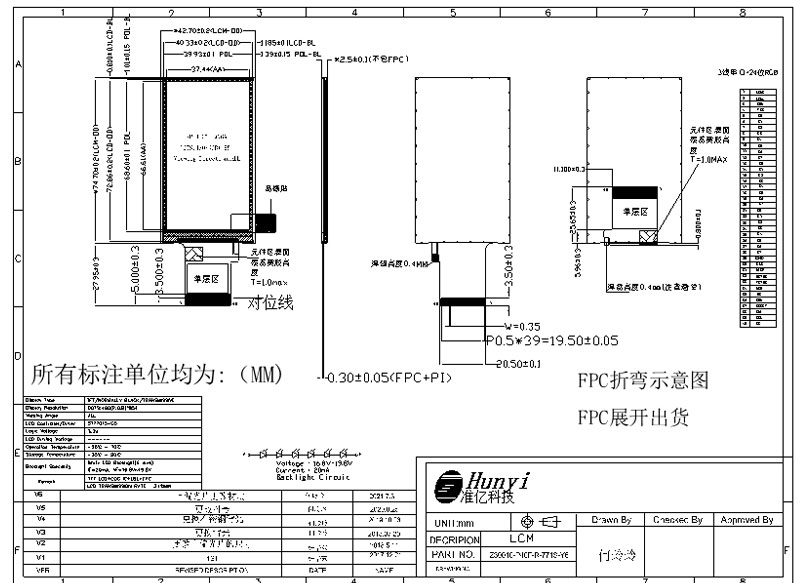

4

LCM Outline Dimension

(Without FPC）

42.70 (W) × 74.70 (H) × 2.5 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 1.0 (T)

mm

6

TLCM Outline Dimension

(Without FPC）

49.80 (W) × 85.10 (H) × 4.03 (T)

mm

7

LCD Active Area

37.44 (W) × 66.61 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ST7701S-G5

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

14

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

15

FPC Version

Z30010-P40F-R V6

-

16

Interface

RGB+SPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

20

Luminance

460

nit

21

Weight

0.029

kg

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

VCC

POWER SUPPLY (2.8V/3.3V）

5-12

R0-R7

DATA BUS

13-20

G0-G7

DATA BUS

21-28

B0-B7

DATA BUS

29

GND

Ground

30

CLK

Pixel clock signal in RGB I/F

31

DISP

Display on/off

32

HSYNC

Horizontal sync. Signal in RGB I/F.

33

VSYNC

Vertical sync. Signal in RGB I/F.

34

DEN

Data enable signal in RGB I/F DE mode.

35

NC

No Connection

36

GND

Ground

37

RESET

LCM RESET PIN

38

SDI

LCM SPI data (SDA) data input (MOSI)

39

SCL

LCM SPI clock (SCL) clock (SCLK)

40

CS

Chip Select input PIN

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

1

GND

Ground

2

VDD

TP Input Power voltage (3.3V)

3

INT

TP Interrupt PIN (3.3V)

4

SDA

TP I2C data (SDA) data input (MOSI)(3.3V)

5

SCL

TP I2C clock (SCL) clock (SCLK)(3.3V)

6

RESET

TP RESET PIN (3.3V)
