Z28003-ZC 2,8 Zoll LCD-Display-Touchscreen 240*320 MCU-Schnitts telle 30PIN IIC

1

Display Size (Diagonal)

2.8

inch

2

Display Resolution

240 (H) × RGB × 320 (V)

pixels

3

Pixel Pitch

60 (H) × 180 (V)

um

4

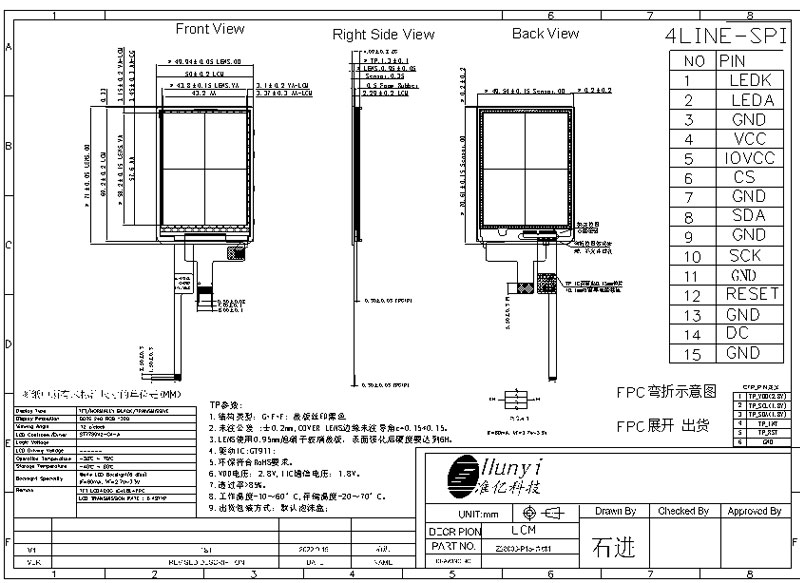

CTP Outline Dimension

(Without FPC）

49.94 (W) × 71 (H) × 4.09 (T)

mm

5

LCD Outline Dimension

46 (W) × 64.65 (H) × 0.8 (T)

mm

6

LCD Active Area

43.2 (W) × 57.6 (H）

mm

7

View Direction (Gray Inversion)

12 o'clock

-

8

Driver IC

ST7789T3-G4-1

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal White

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 6.4%

-

13

LCD Contrast Ratio

Typ.: 500

-

14

FPC Version

Z28003-P15 V1

-

15

Interface

SPI

-

16

Operating Temperature

-30°C~ 70°C

-

17

Storage Temperature

-40°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 4 Parallel (4 lights in total)

-

19

Luminance

Typ.: 300

nit

20

Weight

TBD

kg

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

VCC

POWER SUPPLY

5

IOVCC

POWER SUPPLY

6

CS

LCM SPI Chip Select PIN

7

GND

Ground

8

SDA

LCM SPI data (SDA) data input (MOSI)

9

GND

Ground

10

SCK

LCM SPI clock (SCL) clock (SCLK)

11

GND

Ground

12

RESET

LCM RESET PIN

13

GND

Ground

14

DC

LCM Data/Command Control PIN

15

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.

1

TP-VDD

TP Input Power voltage (3.3V)

2

TP-SCL

TP I2C clock (SCL) clock (SCLK)(1.8V)

3

TP-SDA

TP I2C data (SDA) data input (MOSI)(1.8)

4

TP-INT

TP Interrupt PIN

5

TP-RST

TP RESET PIN

6

GND

Ground
