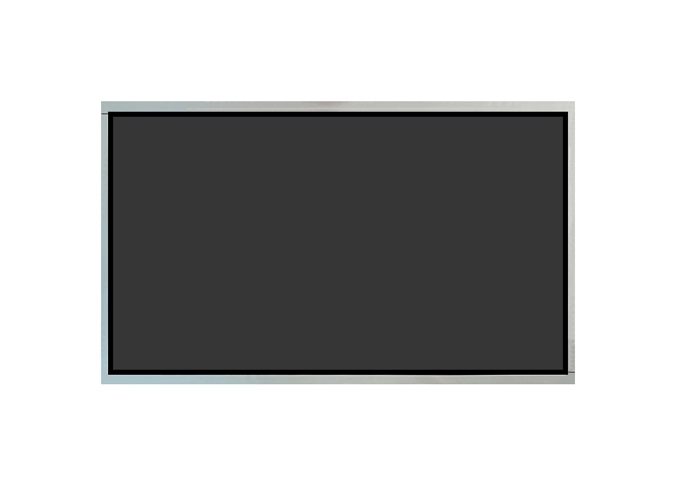

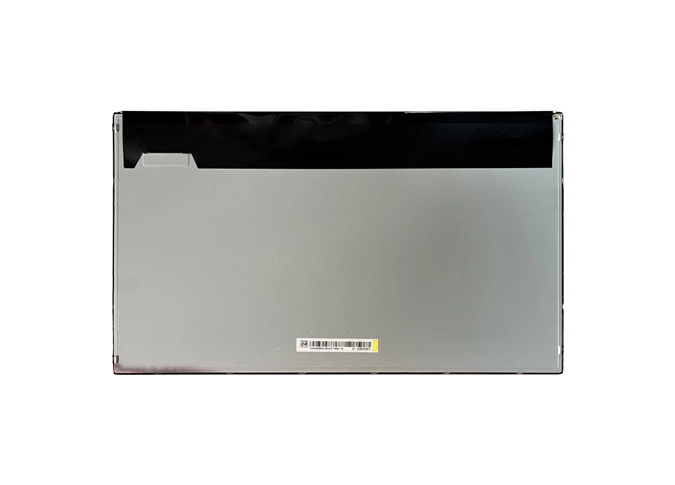

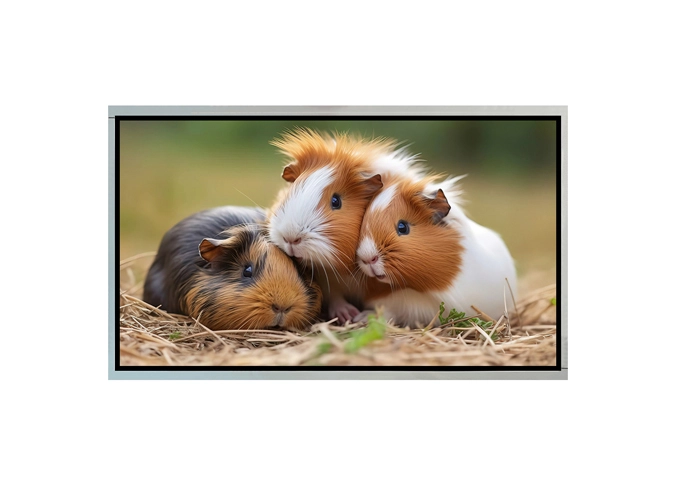

Z215001 21,5 Zoll Monitor-Bildschirm 1920x1080 LVDS-Schnitts telle Hochgeschwindigkeits-TFT-LCD

Active area

476.064(H) × 267.786(V)

mm

Number of pixels

1920(H) ×1080(V)

pixels

Pixel pitch

0.24795(H) x 0.24795(V)

mm

Pixel arrangement

RGB Vertical stripe

-

Display colors

16.7M

colors

Display mode

Normally Black

-

Dimensional outline

495.6(H) × 292.2(V) × 10.7(D) typ.

mm

Detail refer to drawing

Weight

1.97

Kg

Bezel width (L/R/U/D)

7.9/7.9/10.5/10.5

mm

Surface Treatment

Anti-glare, 3H

-

Back-light

Lower side 1-LED Light bar Type

-

1

RXO0-

Negative Transmission data of Pixel 0 (ODD)

2

RXO0+

Positive Transmission data of Pixel 0 (ODD)

3

RXO1-

Negative Transmission data of Pixel 1 (ODD)

4

RXO1+

Positive Transmission data of Pixel 1 (ODD)

5

RXO2-

Negative Transmission data of Pixel 2 (ODD)

6

RXO2+

Positive Transmission data of Pixel 2 (ODD)

7

BIST

Bist function

Note1

8

RXOC-

Negative Transmission Clock (ODD)

9

RXOC+

Positive Transmission Clock (ODD)

10

RXO3-

Negative Transmission data of Pixel 3 (ODD)

11

RXO3+

Positive Transmission data of Pixel 3 (ODD)

12

RXE0-

Negative Transmission data of Pixel 0 (EVEN)

13

RXE0+

Positive Transmission data of Pixel 0 (EVEN)

14

GND

Power Ground

15

RXE1-

Negative Transmission data of Pixel 1 (EVEN)

16

RXE1+

Positive Transmission data of Pixel 1 (EVEN)

17

GND

Power Ground

18

RXE2-

Negative Transmission data of Pixel 2 (EVEN)

19

RXE2+

Positive Transmission data of Pixel 2 (EVEN)

20

RXEC-

Negative Transmission Clock (EVEN)

21

RXEC+

Positive Transmission Clock (EVEN)

22

RXE3-

Negative Transmission data of Pixel 3 (EVEN)

23

RXE3+

Positive Transmission data of Pixel 3 (EVEN)

24

GND

Power Ground

Note 2

25

CTL

*Reserved for LCD manufacturer’s(CTL_DVR)

26

CE

*Reserved for LCD manufacturer’s(CE_DVR)

27

NC

28

VDD

Power Supply: +5V

29

VDD

30

VDD
