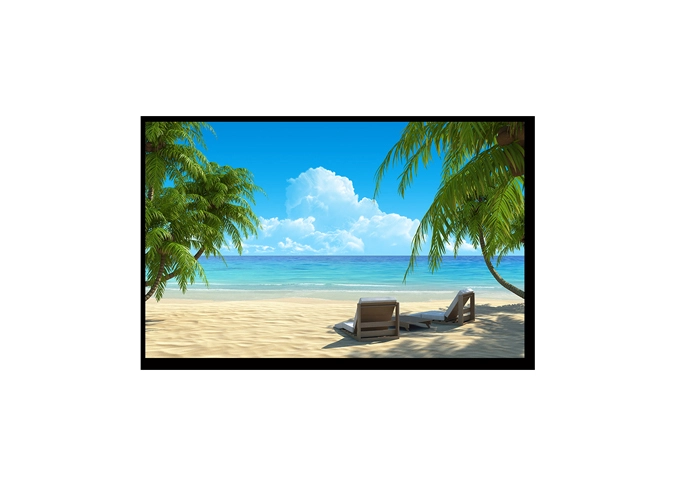

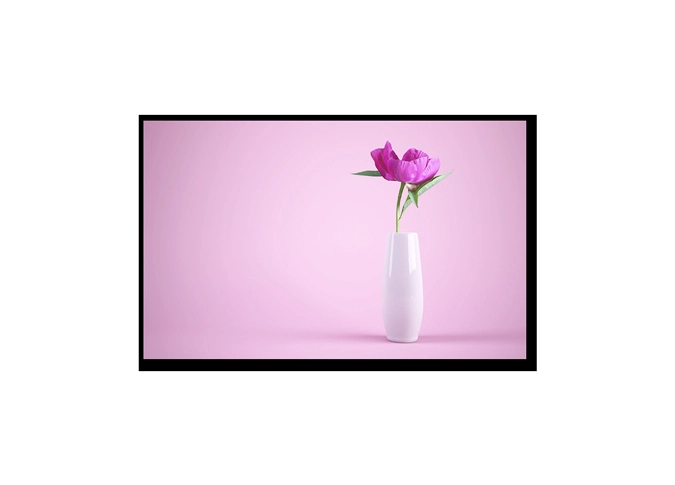

Z173001 Full HD LCD Modul 17,3 Zoll 1920x1080 LVDS Schnitts telle Flüssig kristall anzeige

Screen Diagonal

[mm]

17.3W (17.25)

Active Area

[mm]

381.888 (H) x 214.812 (V)

Pixels H x V

1920(x3) x 1080

Pixel Pitch

[mm]

0.1989 (per one triad) x 0.1989

Pixel Arrangement

R.G.B. Vertical Stripe

Display Mode

Normally White

White Luminance

[cd/m2]

400 (Typ.)

Contrast Ratio

600 : 1 (Typ)

Optical ResponseTime

[msec]

40 (Typ, on/off)

Nominal Input Voltage VDD

[Volt]

3.3 V

Power Consumption

[Watt]

17 (Typ)

Weight

[Grams]

1080 (Typ)

Physical Size (H x V x D)

[mm]

403 (H) x 240 (V) x 12.5 (D) (Typ)

Electrical Interface

Dual channel LVDS

Surface Treatment

Hard-coating (3H), Glare treatment

Support Color

16.7M colors (RGB 6-bit data + HiFRC data)

Temperature Range (Ta)

Operating

Storage (Non-Operating)

[oC]

[oC]

0 to +70

-20 to +70

RoHS Compliance

RoHS Compliance

1

RxOIN0-

Negative LVDS differential data input (Odd data)

2

RxOIN0+

Positive LVDS differential data input (Odd data)

3

RxOIN1-

Negative LVDS differential data input (Odd data)

4

RxOIN1+

Positive LVDS differential data input (Odd data)

5

RxOIN2-

Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)

6

RxOIN2+

Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)

7

VSS

Power Ground

8

RxOCLKIN-

Negative LVDS differential clock input (Odd clock)

9

RxOCLKIN+

Positive LVDS differential clock input (Odd clock)

10

RxOIN3-

Negative LVDS differential data input (Odd data)

11

RxOIN3+

Positive LVDS differential data input (Odd data)

12

RxEIN0-

Negative LVDS differential data input (Even data)

13

RxEIN0+

Positive LVDS differential data input (Even data)

14

VSS

Power Ground

15

RxEIN1-

Negative LVDS differential data input (Even data)

16

RxEIN1+

Positive LVDS differential data input (Even data)

17

VSS

Power Ground

18

RxEIN2-

Negative LVDS differential data input (Even data)

19

RxEIN2+

Positive LVDS differential data input (Even data)

20

RxECLKIN-

Negative LVDS differential clock input (Even clock)

21

RxECLKIN+

Positive LVDS differential clock input (Even clock)

22

RxEIN3-

Negative LVDS differential data input (Even data)

23

RxEIN3+

Positive LVDS differential data input (Even data)

24

VSS

Power Ground

25

VSS

Power Ground

26

VSS

Power Ground

27

VSS

Power Ground

28

VDD

+3.3V Power Supply

29

VDD

+3.3V Power Supply

30

VDD

+3.3V Power Supply
