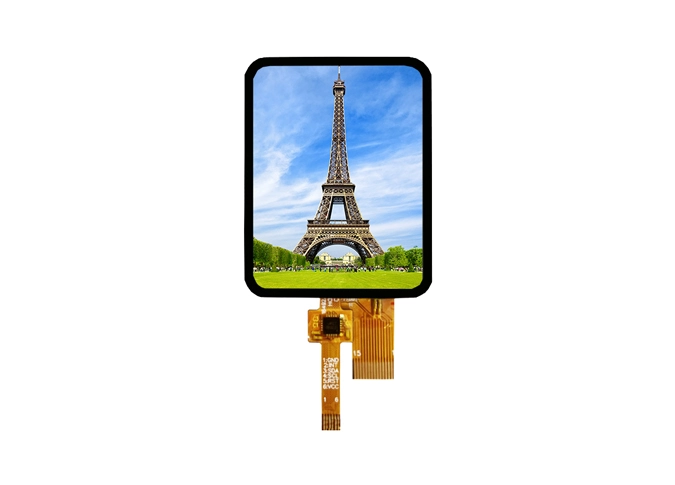

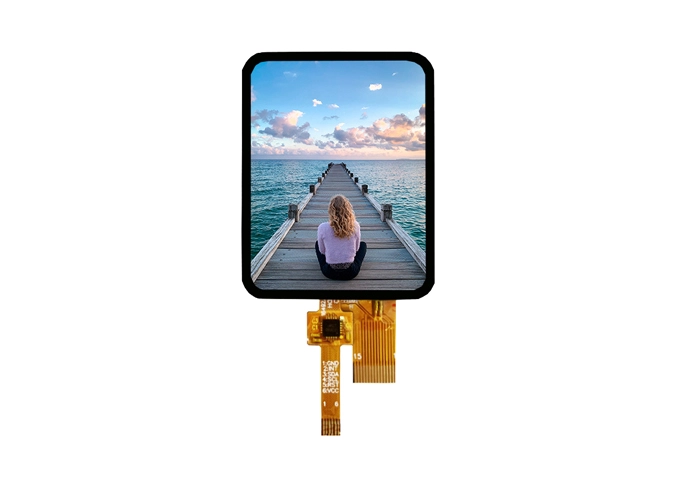

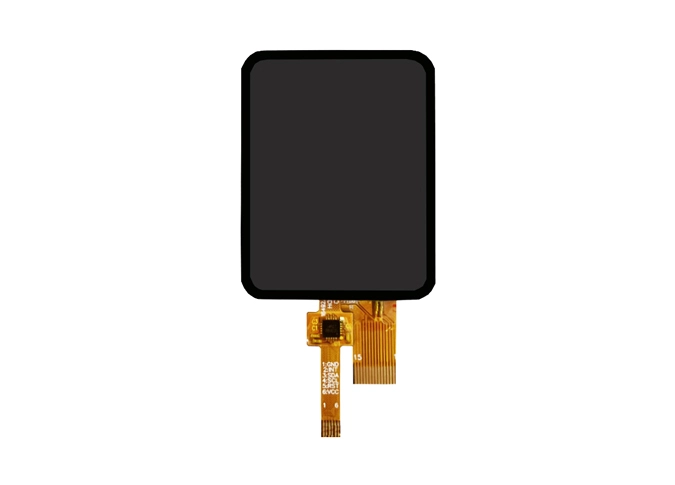

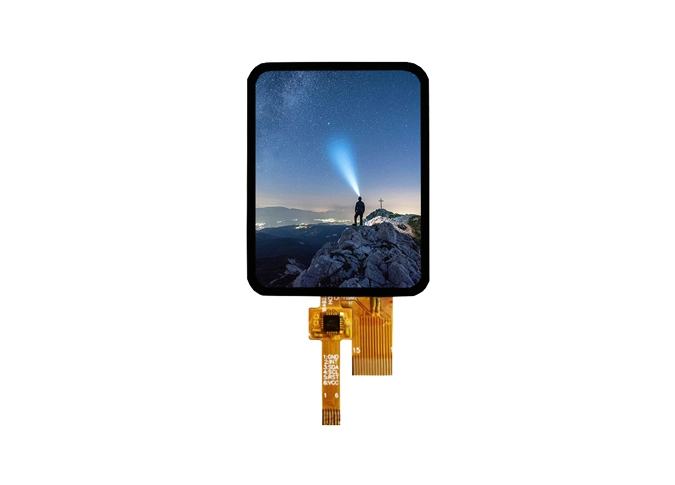

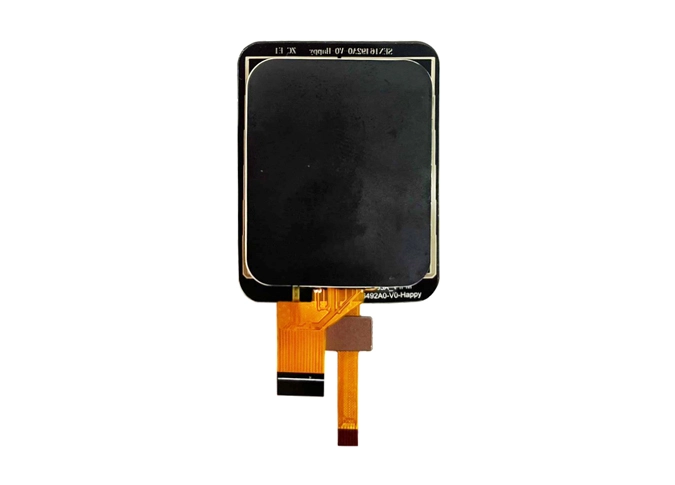

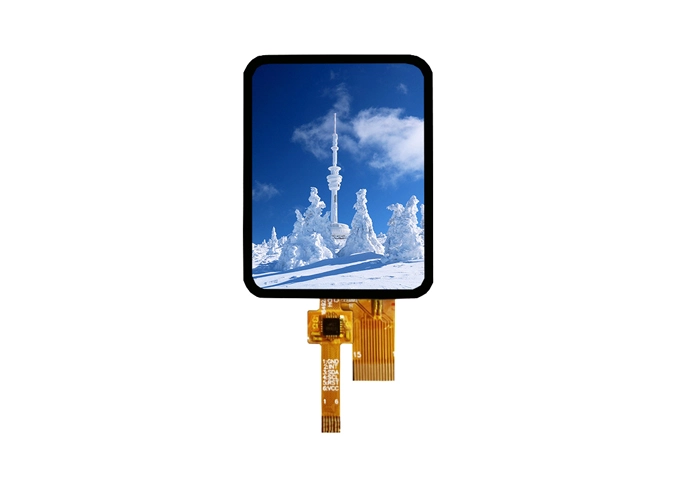

Z17001-ZC 1,69 Zoll Touchscreen-Display mit 240*280 Auflösung und kapazitivem Touch Panel für DIY-Projekte, Smartwatches und Wearable-Geräte

1

Display Size (Diagonal)

1.69

inch

2

Display Resolution

240(H)  × RGB × 280  (V)

pixels

3

Pixel Pitch

116.55(H) × 116.55  (V)

um

4

TLCM Outline Dimension (Without FPC)

33.23(W) ×43.65 (H) ×3.63 (T)

mm

5

LCM Outline Dimension (Without FPC)

30.07 (W) ×37.43 (H) ×1.6 (T)

mm

6

LCD Active Area

27.97  (W)  ×32.63  (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7789T3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.0%    Min:5.0%

-

13

LCD Contrast Ratio

Typ.: 1000

-

14

FPC Version

Z17001-P15 V1

-

15

Interface

SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/ 1 Series 3 Parallel (3 lights in total)

-

19

Luminance

500  (Typ)

nit

20

Weight

TBD

g

1

GND

Ground

2

LEDK

BL LED power-.

3

LEDA

BL LED power+

4

GND

Ground

5

VCC

Power supply: Scope of application  (3.3V)

6

GND

Ground

7

CS

Chip enable select pin. L: enable chip

8

SCL

Serial clock signal input pin

9

DC

Select “Data or Command” pin H data; L command

10

SDA

Serial signal input/output pin.Ground

11

RESET

System reset select pin.

12

FMARK(TE)

Tearing effect output pin. Tearing effect signal is used to synchronize MCU to frame memory, If not used, let this pin open

13- 15

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.

CTP interface

PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

INT

TP    Interrupt    PIN(3.3V)

3

SDA

TP    I2C data (SDA) data input (MOSI)(3.3V)

4

SCL

TP    I2C clock (SCL) clock (SCLK)(3.3V)

5

RESET

TP    RESET    PIN(3.3V)

6

CTP  VCI_

TP Input Power voltage(3.3V)
