Z13005 Hohe Helligkeit 700nits 360*360 1,3 Zoll TFT Display SPI Schnitts telle JD5858A Controller

  • Auflösung: 360*360

  • Schnitts telle: SPI

  • Blickwinkel: Alle Richtung

  • Helligkeit: 700 nits

  • Touch Panel: Unterstützung CTP/RTP

  • Versorgungs typ: Fabrik/Hersteller

  • Zertifizierung: ISO9001,IATF16949,ROHS,REACH

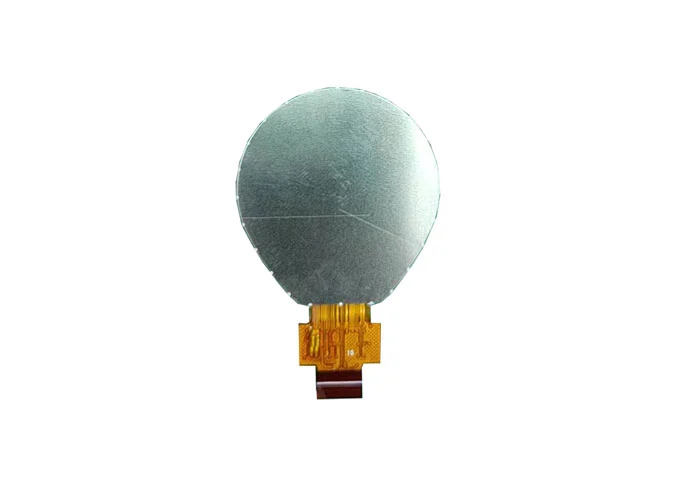

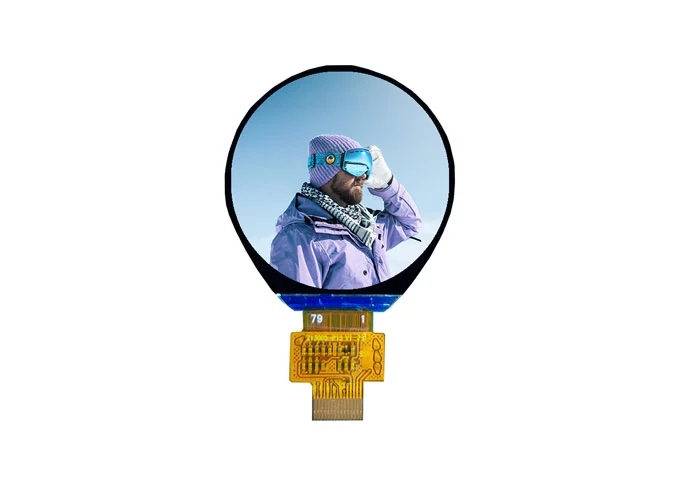

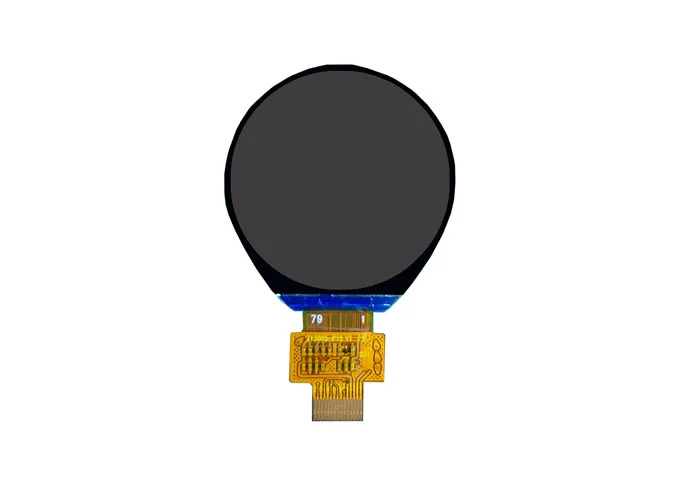

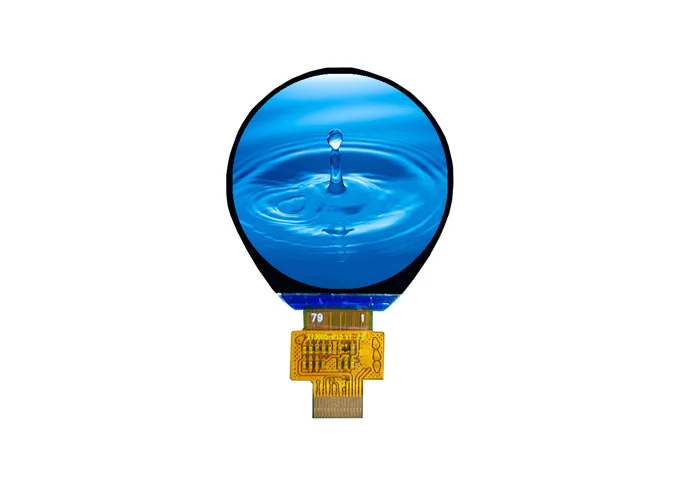

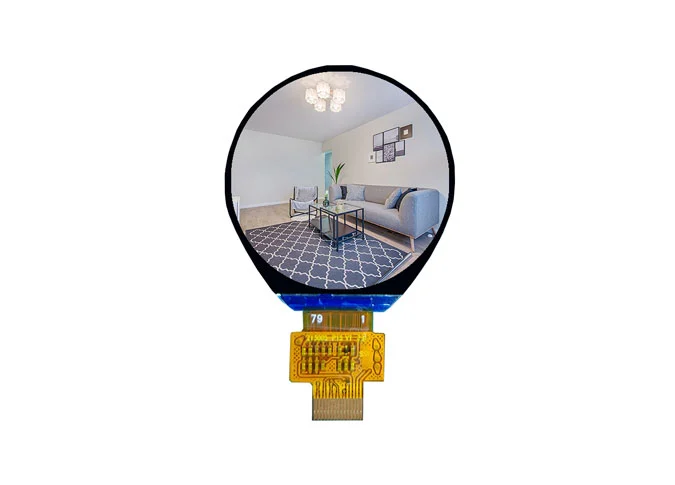

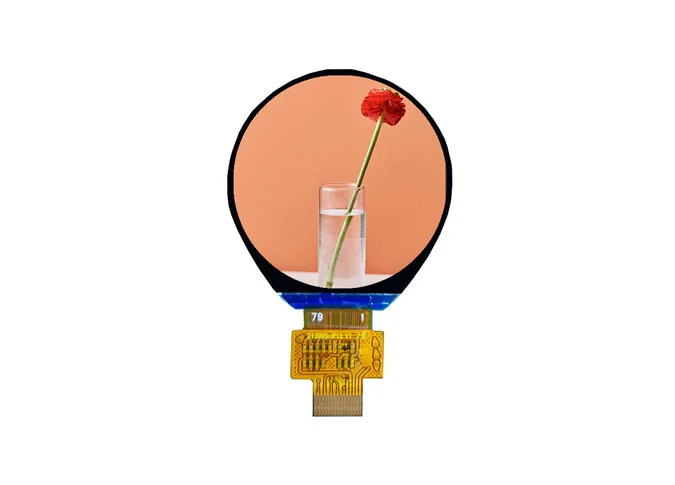

z13005 2
z13005 2
z13005 3
z13005 1
z13005 4
z13005 6
z13005 5

Übersicht über Z13005 Hohe Helligkeit 700nits 360*360 1,3-Zoll-TFT-Display SPI-Schnitts telle JD5858A Controller

1

Z13005 ist eine farbige aktive Matrix-Dünnschicht transistor (TFT) Flüssig kristall anzeige (LCD) mit einer Auflösung von 360*360. Durch die IPS-Technik (In-Plane Switching) hat dieses 1,3 "LCD-Modul einen größeren Blickwinkel. DiesHandheld-LCD-DisplayIst eingebauter JD5858A Treiber-IC. Dieses a-Si TFT LCD kommt mit SPI-Schnitts telle. Hohe Helligkeit.

2

Wenn Sie spezielle Anforderungen haben, wie Laufwerk IC, Schnitts telle, FPC, Touch panel, Helligkeit, Farbe, Hintergrund beleuchtung, Touch panel usw.Runde LCD-Panel-FabrikKann auch für Sie anpassen.

3

Als ProfiRunder LCD-Hersteller, Führen wir ISO 9001: 2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Anzeige bestanden ROHS, REACH-Zertifizierung.

4

Sowie unsere beliebten4,5-Zoll-LCD-Display, Das 1,3 "kleine LCD-Modul ist weit verbreitet auf Smart-Watch, Smart-Home-Bedienfeld, protable Gerät, medizinisches Instrument, Industrie ausrüstung, Power Bank, Smart-Armband, digitale Halskette ect

General Specifications of Z13005 High Brightness 700nits 360*360 1.3 inch TFT Display SPI Interface JD5858A Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.3

inch

2

Display Resolution

360(H) × RGB × 360(V)

pixels

3

Pixel Pitch

30.5(H)× 91.5(V)

um

4

LCM Outline Dimension

(Without FPC)

35.24 (W) ×37.67 (H) ×2.15 (T)

mm

5

LCD Outline Dimension

34.94 (W) × 37.37 (H) × 0.4 (T)

mm

6

LCD Active Area

32.94(W) ×32.94(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD5858A-GN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.41%  Min:3.86%

-

13

LCD Contrast Ratio

Typ.: 1500  Min:1200

-

14

FPC Version

Z13005-P15 V1

-

15

Interface

SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 2 Parallel (2 lights in total)

-

19

Luminance

Typ.:700

nit

20

Weight

0.003

kg


Interface Definition Description of Z13005 High Brightness 700nits 360*360 1.3 inch TFT Display SPI Interface JD5858A Controller


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

VCC

POWER SUPPLY

5

IOVCC

I/O  POWER SUPPLY

6

CS

LCM  SPI  Chip Select  PIN

7

GND

Ground

8

SDA

LCM  SPI data (SDA) data input (MOSI)

9

GND

Ground

10

SCK

LCM  SPI clock (SCL) clock (SCLK)

11

GND

Ground

12

RESET

LCM  RESET  PIN

13

GND

Ground

14

DC

LCM  Data/Command Control  PIN

15

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
