Z116001 Bar Typ 11,6 Zoll 1920*1080 IPS LCD Display LVDS-Schnitts telle TFT

  • Größe: 11,6 Zoll

  • Auflösung: 1920*1080

  • Aktiver Bereich: 256,32*144,18mm

  • Schnitts telle: LVDS

  • Ansicht winkel: IPS

  • Helligkeit: 500 cd/m²

  • Touch Panel: Unterstützung CTP/RTP

  • Versorgungs typ: Fabrik/Hersteller

  • Zertifizierung: ISO9001, IATF16949, ROHS, REACH

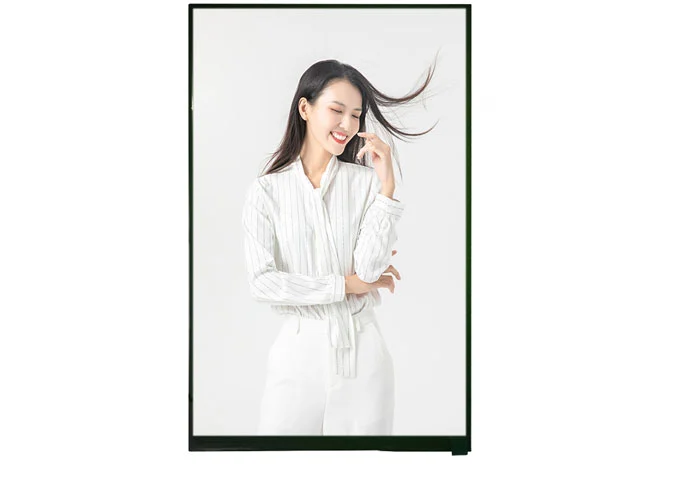

11.6 inch lcd manufacturer
11.6 inch lcd manufacturer

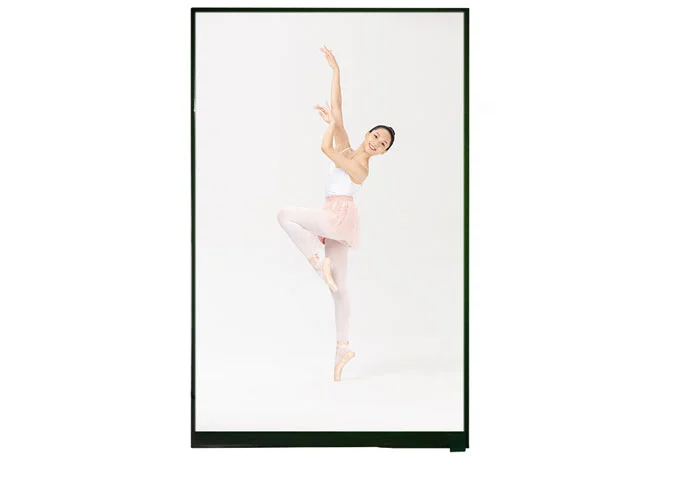

11.6 inch lcd wholesale

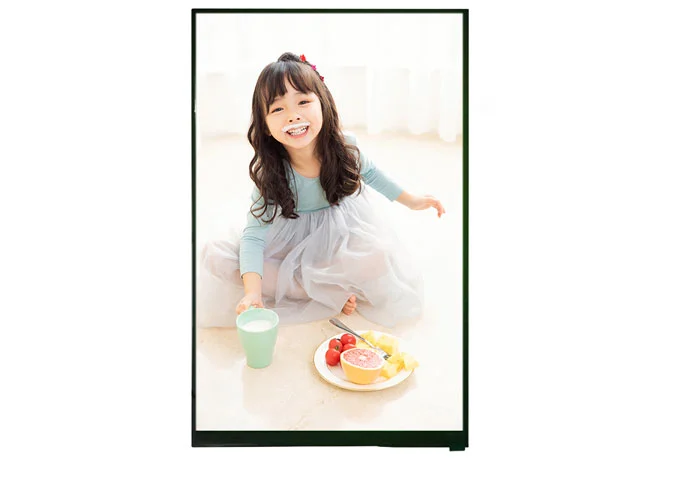

wholesale 11.6 inch lcd

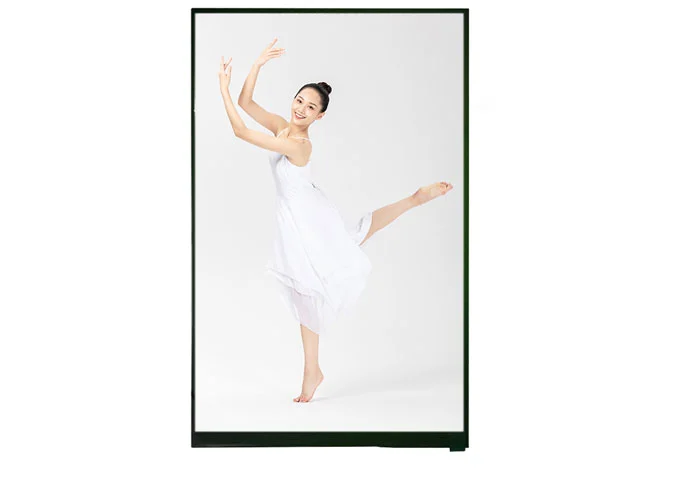

11.6 inch lcd

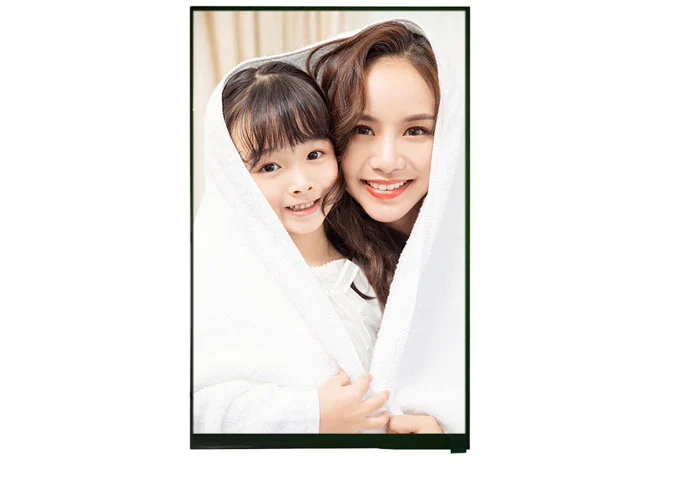

11.6 inch lcd bulk
bulk 11.6 inch lcd

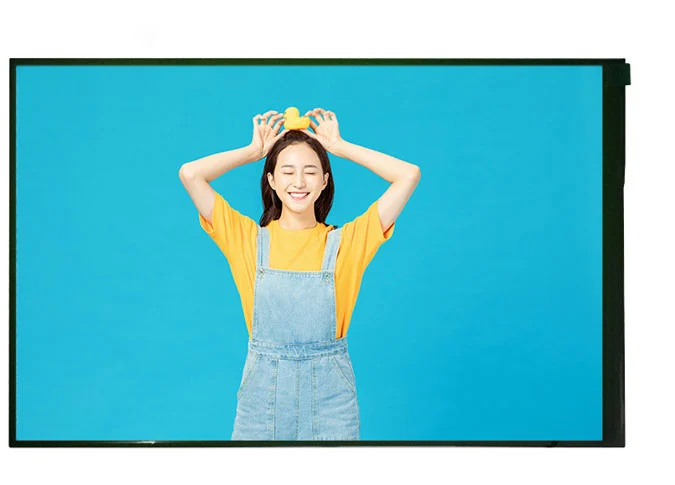

11.6 inch lcd company

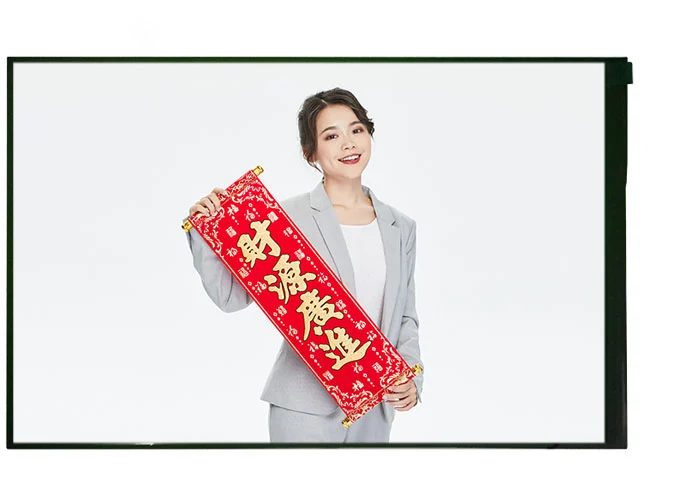

manufacturer 11.6 inch lcd
company a 11.6 inch lcd

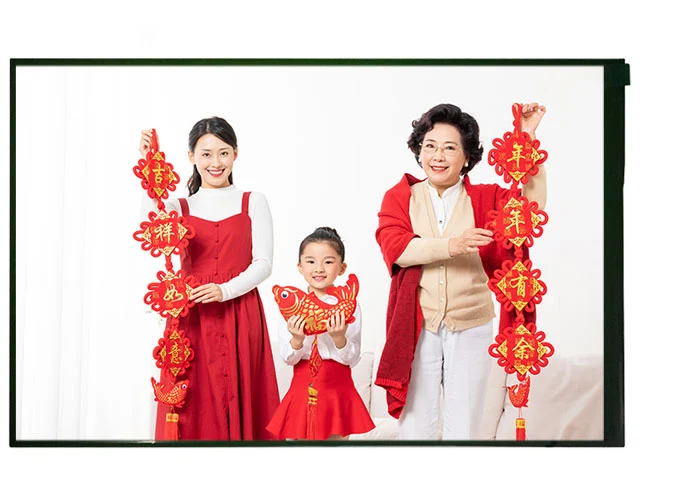

company 11.6 inch lcd

Übersicht über Z116001 Bar Typ 11,6 Zoll 1920*1080 IPS LCD Display LVDS-Schnitts telle TFT

1

Z116001 ist eine farbaktive Matrix-Dünnschicht transistor (TFT)-Flüssig kristall anzeige (LCD) mit 1920*1080 Auflösung. Durch die IPS-Technik (In-Plane Switching) hat dieses 11,6-Zoll-LCD-Modul einen größeren Blickwinkel. Dieses a-SiQuadratisches TFT-LCD-ModulKommen mit LVDS-Schnitts telle, 500cd/m² Helligkeit.

2

Wenn Sie spezielle Anforderungen haben, wie Laufwerk IC, Schnitts telle, FPC, Touch panel, Helligkeit, Farbe, Hintergrund beleuchtung, Touch panel usw., alsLieferant des TFT-LCD-Moduls, Wir können auch für Sie anpassen.

3

Als einQuadratischer LCD-Lieferant, Unsere Fabrik führen ISO 9001: 2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Display bestanden ROHS, REACH-Zertifizierung.

4

Der 10,1-Zoll-LCD-Bildschirm ist weit verbreitet in der medizinischen, visuellen Türklingel, Verkaufs automat, Lernmaschine, Ventilator, Oszilloskop, Küche, Haushalts gerät, Smart Home, Industrie, Handheld, Outdoor, E-Bike, Fahrzeug, Projektor, 3D-Drucker, Audio gerät, Roboter, elektrische Waage, Navigation, Armaturen brett, Aufzugs werbung, Laptop, HMI, Bildung usw.

Specifications of Bar Type 11.6 Inch 1920*1080 IPS LCD Display LVDS Interface TFT


No.

Item

Specification

Unit

1

Display Size (Diagonal)

11.6

inch

2

Display Resolution

1920 (H) × RGB × 1080 (V)

pixels

3

Pixel Pitch

0.1335 (H)× 0.1335 (V)

um

4

LCM Outline Dimension

(Without FPC)

263.6 (W) ×157.42 (H) ×3.1 (T)

mm

5

LCD Outline Dimension

-

mm

6

LCD Active Area

256.32 (W) ×144.18 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

-

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

Typ8 00

-

14

FPC Version

Z116001-P30 V1

-

15

Interface

2lane EDP

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

9 series 5 parallel

-

19

Luminance

400

nit

20

Weight

-

kg


Interface Definition Description of Bar Type 11.6 Inch 1920*1080 IPS LCD Display LVDS Interface TFT


PIN#

Symbol

Description Remark

PIN#

Symbol

Description Remark

1

CABC-EN

CABC-EN

16

GND

Power Ground

2

GND

Power Ground

17

HPD

Hot plug detect output

3

LANE1-N

eDP RX Channel 1 negative

18

BL-GND

Power Ground

4

LANE1-P

eDP RX Channel 1 Positive

19

BL-GND

Power Ground

5

GND

Power Ground

20

BL-GND

Power Ground

6

LANE0-N

eDP RX Channel 0 negative

21

BL-GND

Power Ground

7

LANE0-P

eDP RX Channel 0 Positive

22

BL-ENABLE

BL-ENABLE

8

GND

Power Ground

23

BL-PWM

Reset low active

9

AU-PH-P

eDP AUX CH positive

24

MSCL

FOR DEBUG

10

AU-PH-N

eDP AUX CH negative

25

MSDA

FOR DEBUG

11

GND

Power Ground

26

BL-POWER

BL-POWER

12

LDC-VCC

3.3V

27

BL-POWER

BL-POWER

13

LDC-VCC

3.3V

28

BL-POWER

BL-POWER

14

LCD-TEST

Panel self test enable

29

BL-POWER

BL-POWER

15

GND

Power Ground

30

NC

NC
