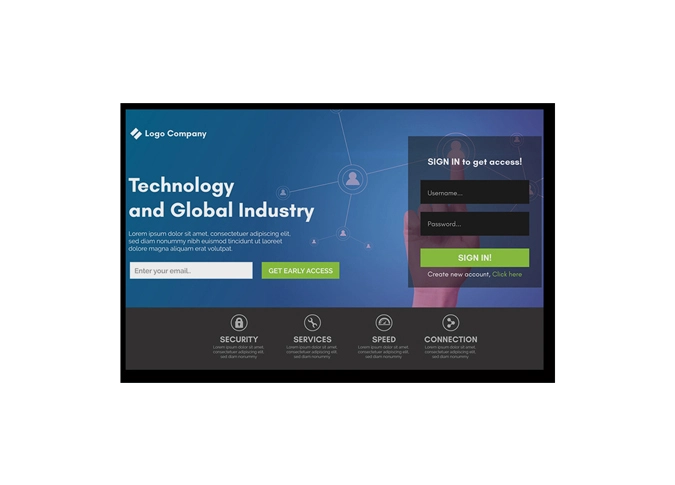

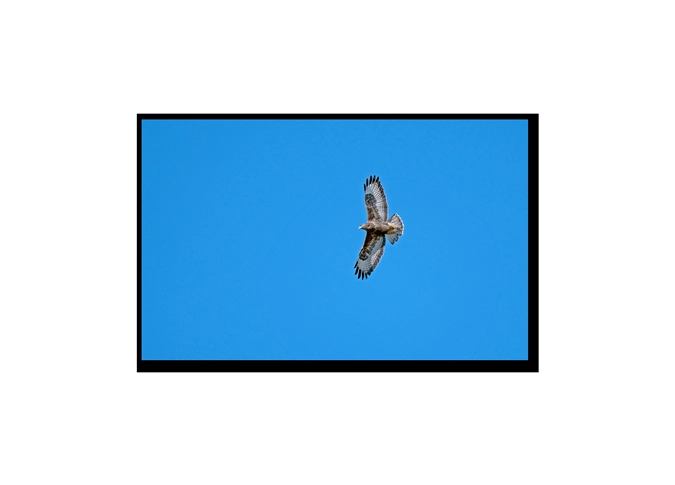

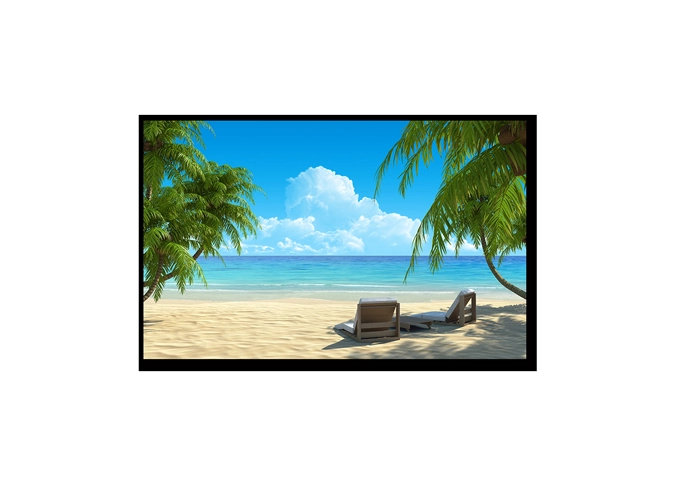

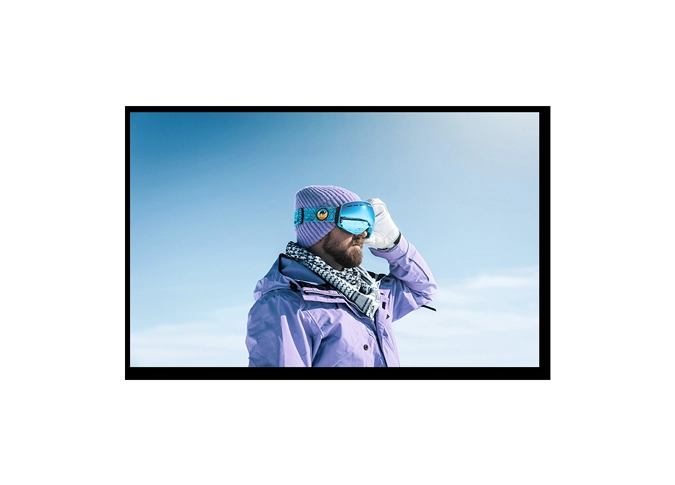

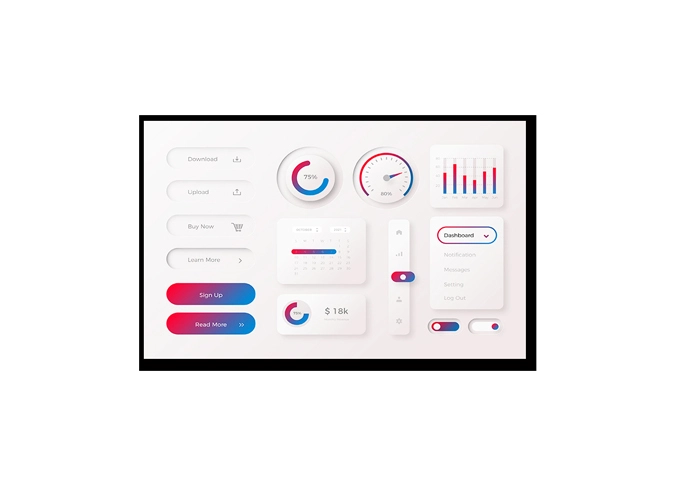

Z101044 Hohe Helligkeit 10,1 Zoll TFT Display Moudle LVDS-Schnitts telle 1280*800 1000nits LCD

1

Display Size (Diagonal)

10. 1

inch

2

Display Resolution

1280(H） × RGB × 800（V）

pixels

3

Pixel Pitch

56.5(H） × 169.5（V）

um

4

TLCMOutline Dimension

(Without FPC）

246.94(W) × 169.6(H) ×7.02 (T)

mm

5

LCM Outline Dimension

229.46(W) × 149. 10(H) × 4.82 (T)

mm

6

LCD Active Area

216.96（W） × 135.60（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

EK79202B+EK79202B

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.5%

-

13

LCD Contrast Ratio

Typ.: 1000

-

14

FPC Version

/

-

15

Interface

LVDS

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED

-

19

Luminance

Typ.:900

nit

20

Weight

TBD

kg

1

NC

No Connection

2-4

VDDIN

Power supply VDDIN=3.3V (Typ.)

5

NC

No Connection

6-7

GND

Ground

8

RIN0-

LVDS    Negative    data    signal(-)

9

RIN0+

LVDS    Positive    data    signal(+)

10

GND

Ground

11

RIN1-

LVDS    Negative    data    signal(-)

12

RIN1+

LVDS    Positive    data    signal(+)

13

GND

Ground

14

RIN2-

LVDS    Negative    data    signal(-)

15

RIN2+

LVDS    Positive    data    signal(+)

16

GND

Ground

17

LVDS_CLK-

LVDS    Negative    CLK    signal(-)

18

LVDS_CLK+

LVDS    Positive    CLK    signal(+)

19

GND

Ground

20

RIN3-

LVDS    Negative    data    signal(-)

21

RIN3+

LVDS    Positive    data    signal(+)

22

GND

Ground

23-24

NC

No Connection

25

GND

Ground

26-27

NC

No Connection

28

GND

Ground

29-30

NC

No Connection

31-33

LED-

POWER SUPPLY- FOR BACKLIGHT CATHODE

34-37

NC

No Connection

38-40

LED+

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
