Größe: 10,1 Zoll
Auflösung: 800*1280
LCD-Schnitts telle: MIPI
Touch-Schnitts telle: IIC
Touch Panel: Kapazitiv
Treiber IC: JD9365DA
Touch-Controller: GT9271
Ansicht winkel: IPS
Versorgungs typ: Fabrik/Hersteller
Zertifizierung: ISO9001, IATF16949, ROHS, REACH

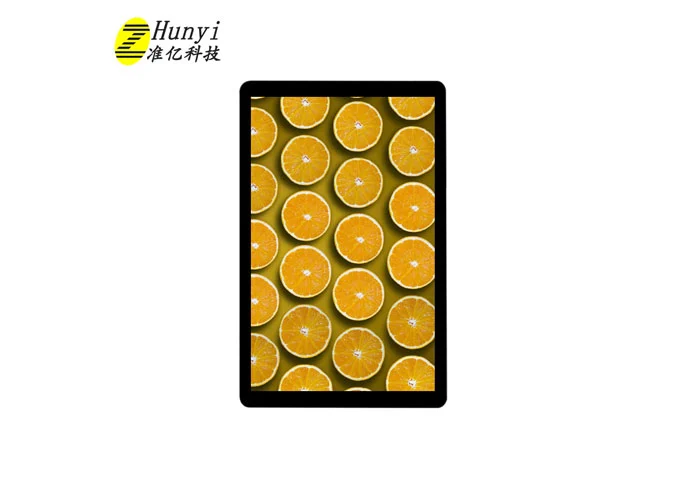

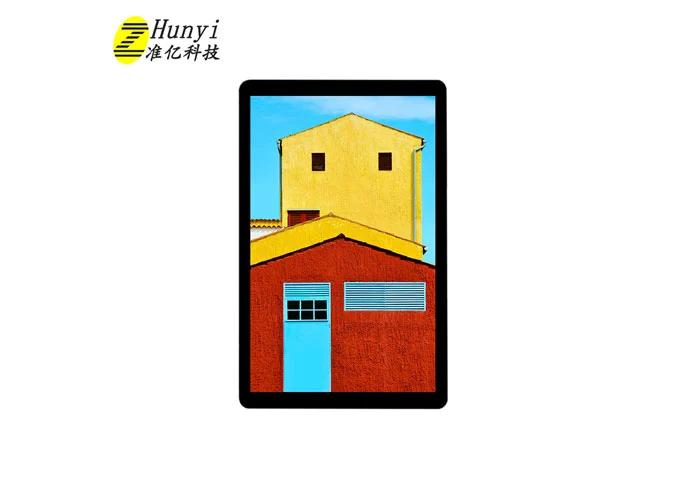

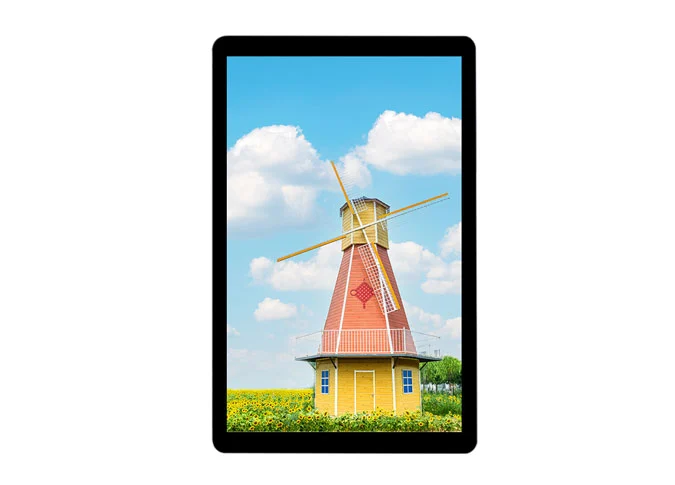

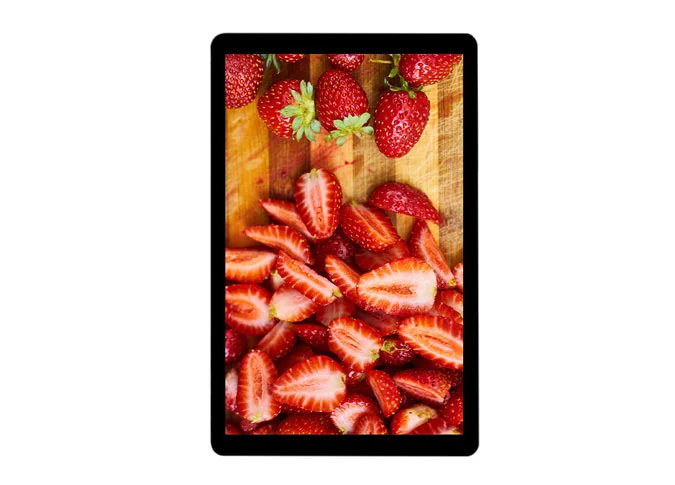

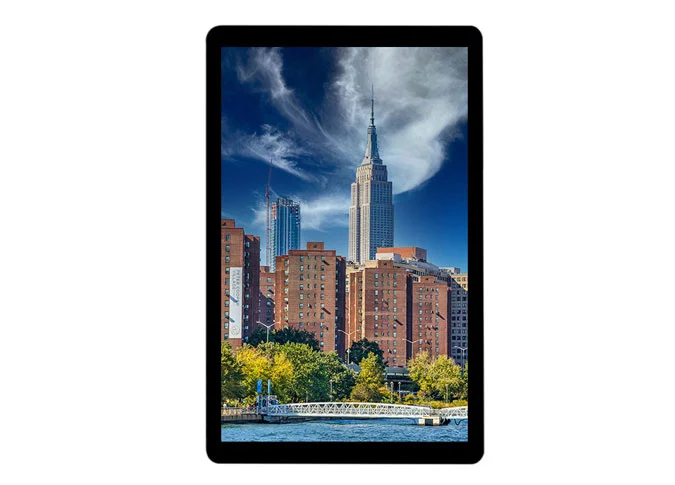

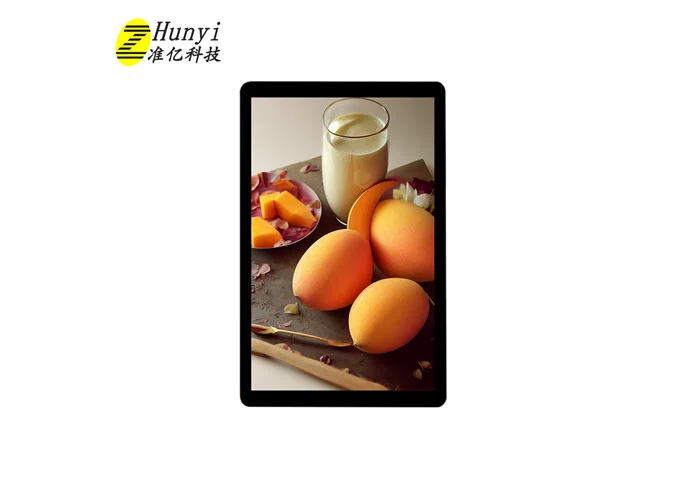

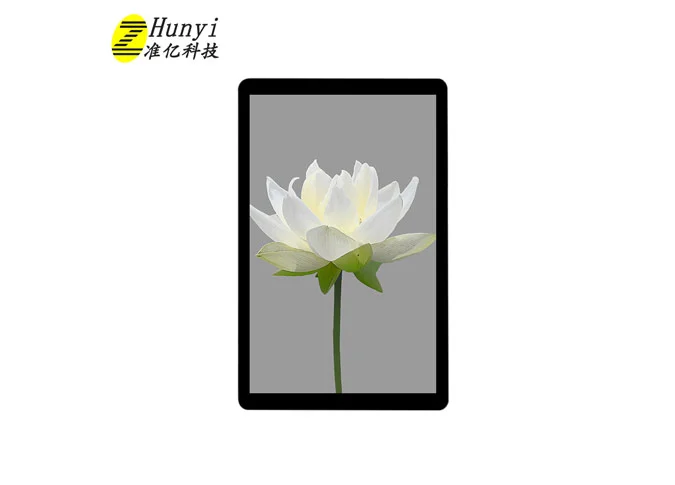

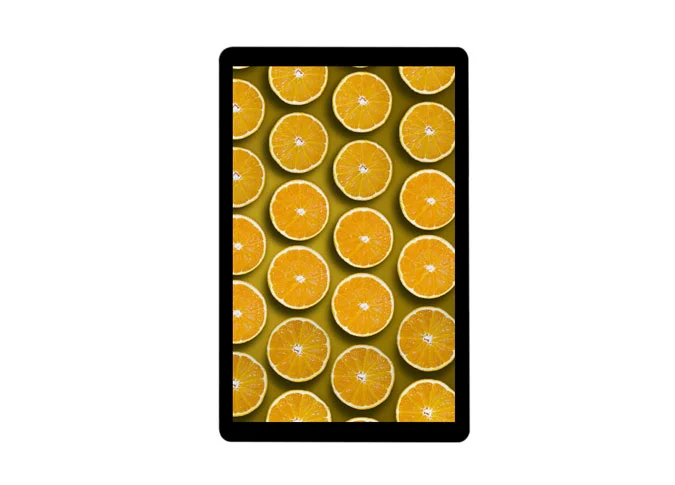

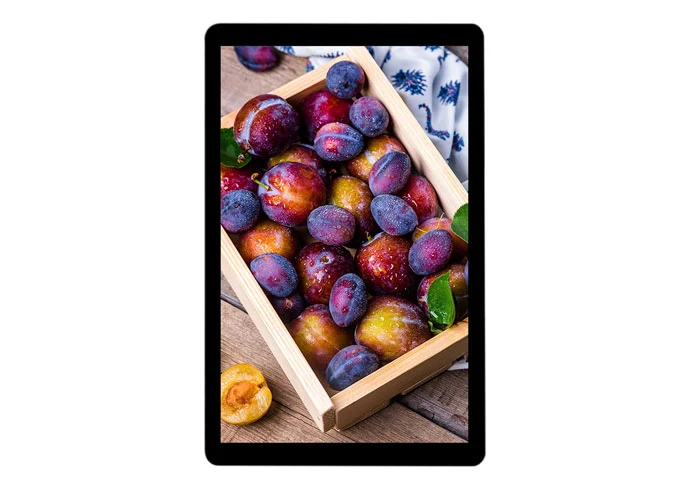

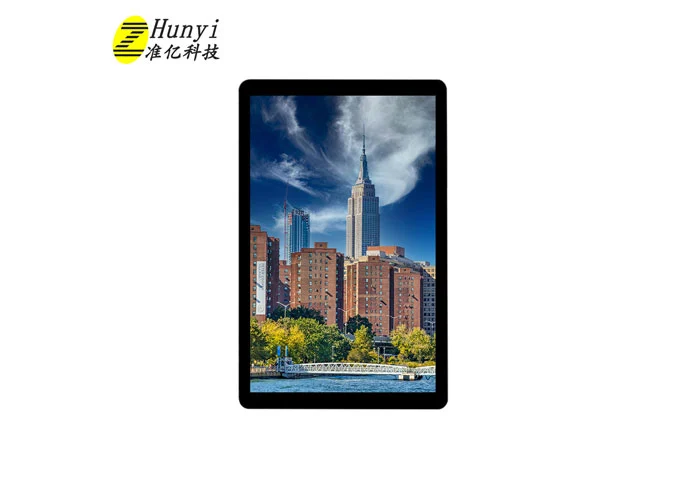

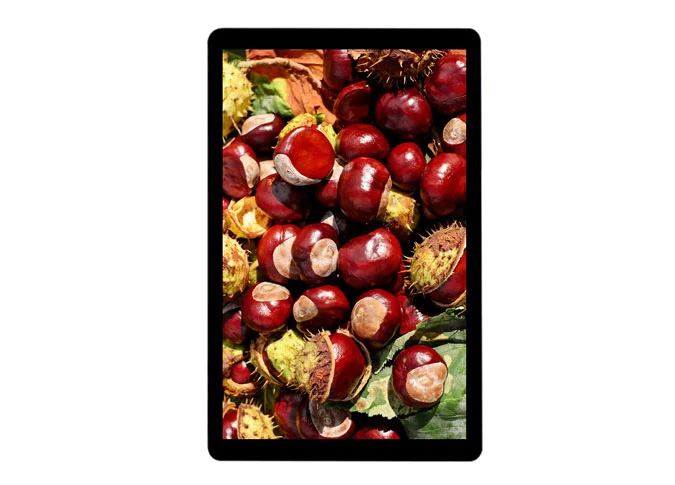

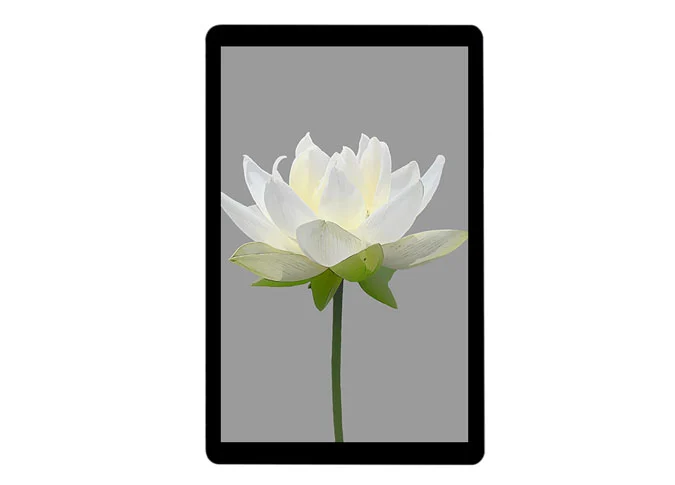

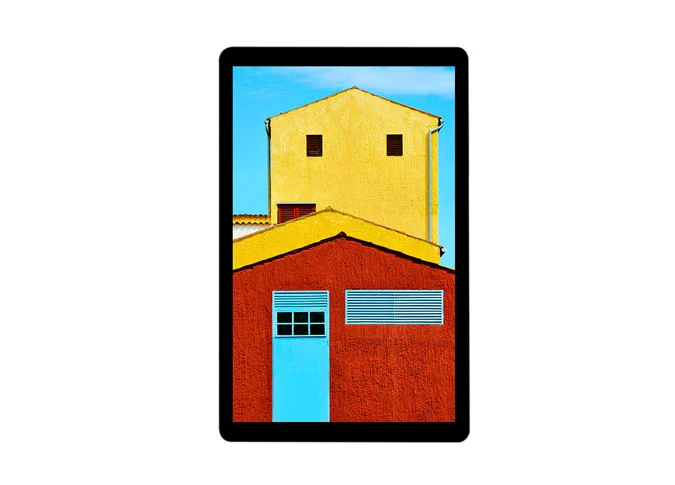

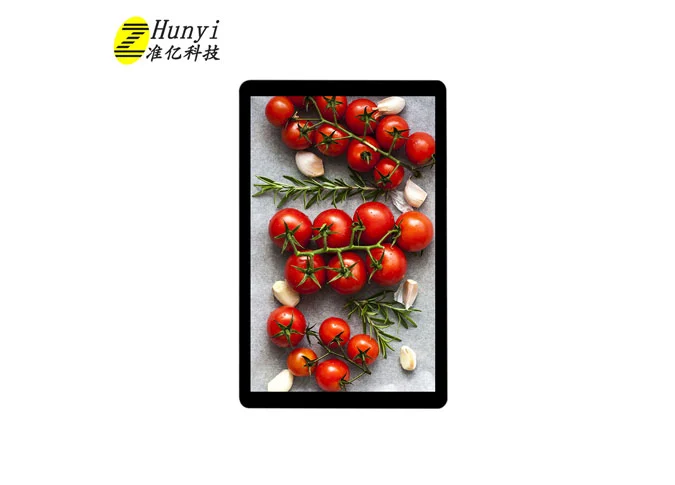

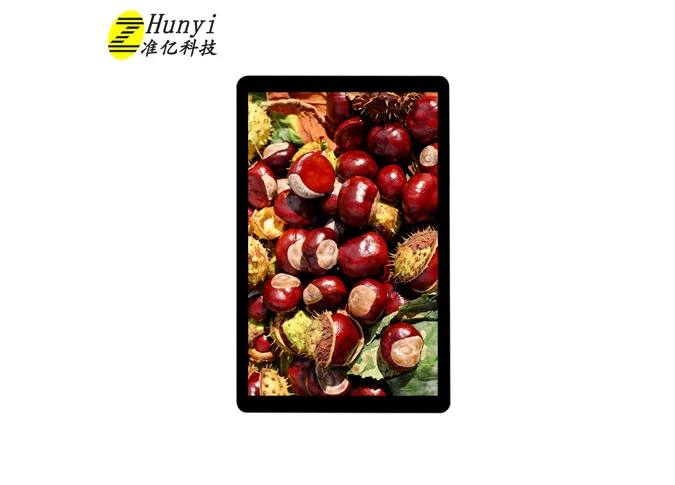

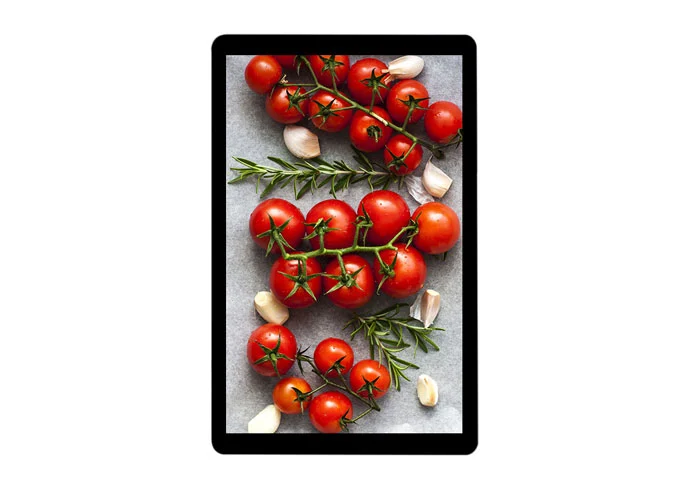

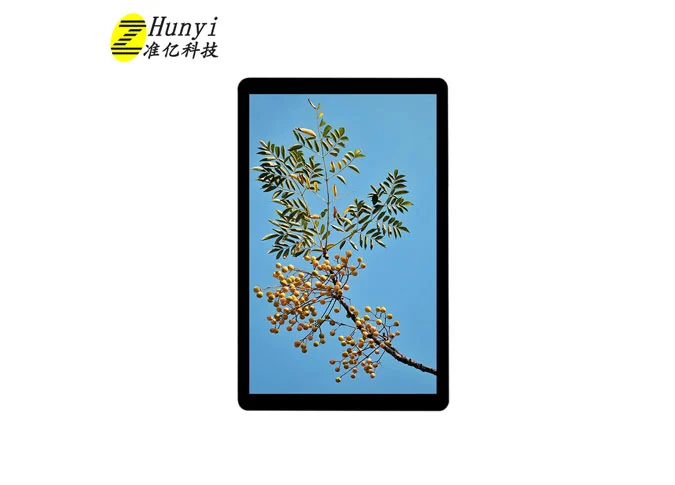

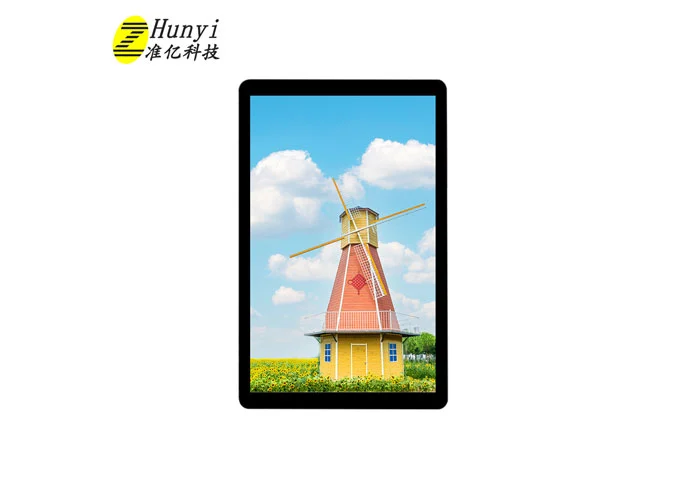

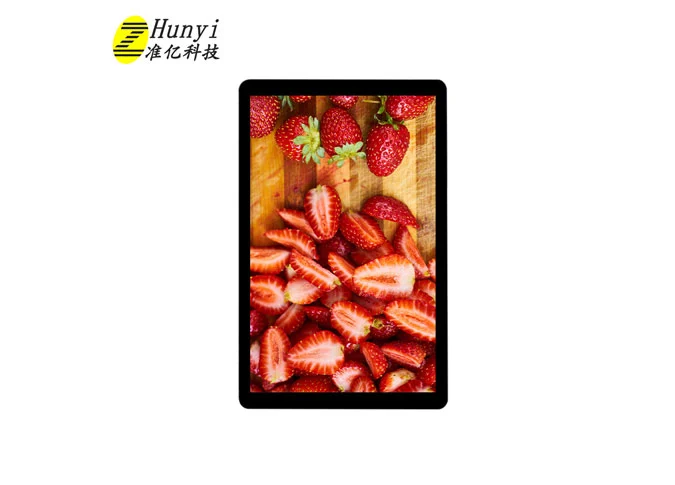

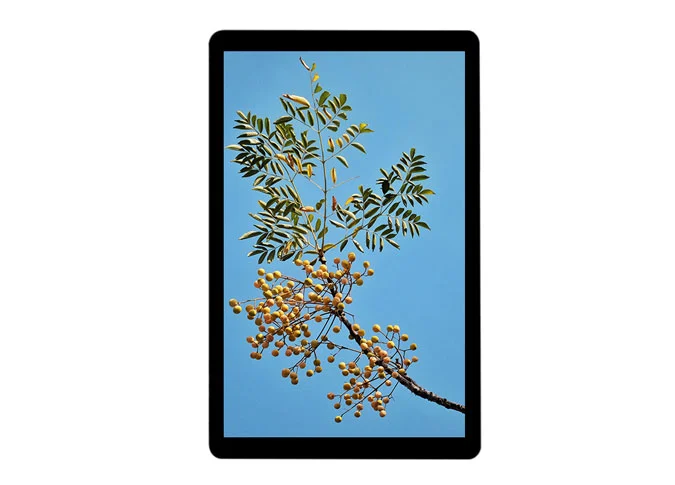

Z101029-ZC2 handelt sich um eine farbig aktive Matrix-Dünnschicht transistor (TFT)-Flüssig kristall anzeige (LCD) mit kapazitivem Touch panel, QVGA 800*1280. Dieses TFT-Touch-Display ist eingebauter JD9365DA LCD-Treiber-IC und GT9271 Touch-Controller. Dieser a-Si TFT LCD-TouchChina LCD-ModulKommen mit MIPI und I2C schnitts telle. Mehrpunkt-Touch.
Wenn Sie spezielle Anforderungen haben, wie Laufwerk IC, Schnitts telle, FPC, Touch panel, Hintergrund beleuchtung, Helligkeit, Farbe usw., können wir zur Verfügung stellenChina custom LCDFür dich.
Als einLCD-Modul Fabrik, Unsere Fabrik führen ISO 9001: 2015 und IATF16949: 2016 Qualitäts standards ystem streng, alle LCD-Display bestanden ROHS, REACH-Zertifizierung.
Dieser 10,1-Zoll-LCD-Touchscreen ist weit verbreitet in medizinischen, visuellen Türklingeln, Verkaufs automaten, Lern-Mechine, Ventilator, Oszilloskop, Küche, Haushalts gerät, Smart Home, Industrie, Handheld, Outdoor, E-Bike, Fahrzeug, Projektor, 3D-Drucker, Audio gerät, Roboter, elektrische Waage, Navigation, Armaturen brett, Aufzugs werbung, Laptop, HMI, Bildung usw.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 10.1 | inch |
2 | Display Resolution | 800 (H) × RGB × 1280 (V） | pixels |
3 | Pixel Pitch | 56.4 (H) × 169.2 (V） | um |
4 | LCM Outline Dimension (Without FPC） | 143.05 (W) × 228.55 (H) × 2.60 (T) | mm |
5 | LCD Outline Dimension | 139.36 (W) × 225.58 (H) × 0.8 (T) | mm |
6 | TLCM Outline Dimension (Without FPC） | 153.85 (W) × 243.85 (H) × 4.33 (T) | mm |
7 | LCD Active Area | 135.36 (W) × 216.58 (H) | mm |
8 | View Direction (Gray Inversion) | FULL VIEW | - |
9 | Driver IC | JD9365DA-H3 | - |
10 | Pixel Arrangement | RGB-Stripe | - |
11 | Display Mode | Normal Black | - |
12 | Pixel driving Element | a-Si TFT | - |
13 | LCD Transmittance | Typ.: 5.41% Min: 4.65% | - |
14 | LCD Contrast Ratio | Typ.: 1000 Min: 800 | - |
15 | FPC Version | Z101029-PR03H V1 | - |
16 | Interface | MIPI | - |
17 | TP Interface | I2C | |
18 | Operating Temperature | -20°C~ 70°C | - |
19 | Storage Temperature | -30°C~ 80°C | - |
20 | Backlight Arrangement | LED/9 Series 4 Parallel (36 lights in total) | - |
21 | Luminance | Typ.: 500 | nit |
22 | Weight | 0.306 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | NC | No Connection |
2-3 | VDDIN | POWER SUPPLY (3.3V） |
4 | NC | No Connection |
5 | NC(LCD-RST) | No Connection (LCM RESET PIN) |
6 | NC | No Connection |
7 | GND | Ground |
8 | MIPI_0N | Negative MIPI differential data input |
9 | MIPI_0P | Positive MIPI differential data input |
10 | GND | Ground |
11 | MIPI_1N | Negative MIPI differential data input |
12 | MIPI_1P | Positive MIPI differential data input |
13 | GND | Ground |
14 | MIPI_CKN | Negative MIPI differential CLOCK input |
15 | MIPI_CKP | Positive MIPI differential CLOCK input |
16 | GND | Ground |
17 | MIPI_2N | Negative MIPI differential data input |
18 | MIPI_2P | Positive MIPI differential data input |
19 | GND | Ground |
20 | MIPI_3N | Negative MIPI differential data input |
21 | MIPI_3P | Positive MIPI differential data input |
22 | GND | Ground |
23-24 | NC | No Connection |
25 | GND | Ground |
26-27 | NC | No Connection |
28 | ID0 | LCM ID PIN |
29 | ID1 | LCM ID PIN |
30 | GND | Ground |
31-32 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
33 | TP-GND | Ground |
34 | TP-SDA | TP I2C data (SDA) data input (MOSI) |
35 | TP-SCL | TP I2C clock (SCL) clock (SCLK) |
36 | TP-INT | TP Interrupt PIN |
37 | TP-RESET | TP Reset PIN |
38 | TP-VDD | TP POWER SUPPLY |
39-40 | LEDA | POWER SUPPLY- FOR BACKLIGHT ANODE |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | GND | Ground |
2 | SDA(1.8V) | TP I2C data (SDA) data input (MOSI)(1.8V) |
3 | SCL(1.8V) | TP I2C clock (SCL) clock (SCLK)(1.8V) |
4 | INT(1.8V) | TP Interrup PIN (1.8V) |
5 | RST(1.8V) | TP Reset PIN (1.8V) |
6 | VDD(2.8V) | TP POWER SUPPLY (2.8V) |

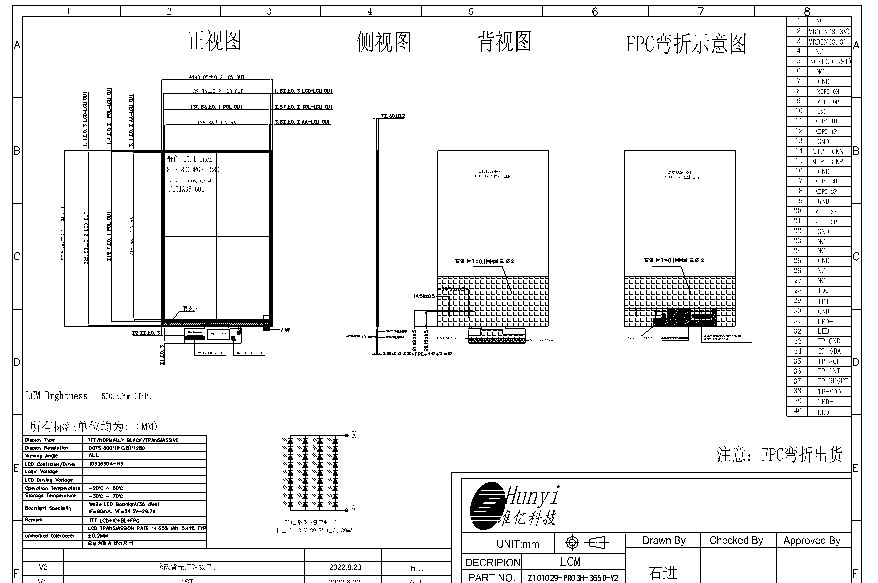

3.1 LCM
3.2 TLCM
