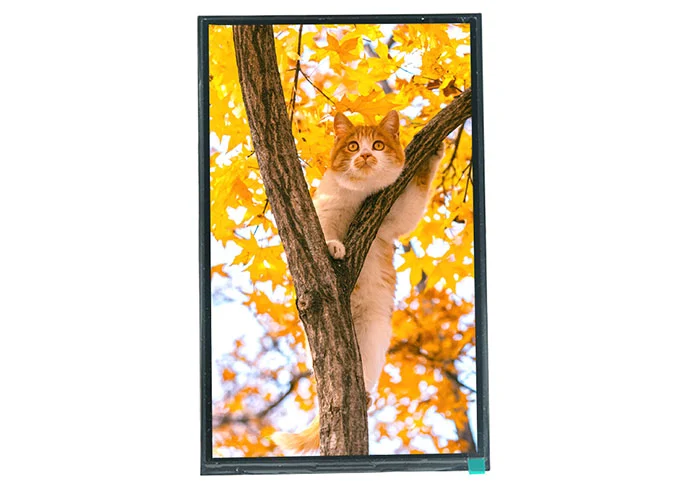

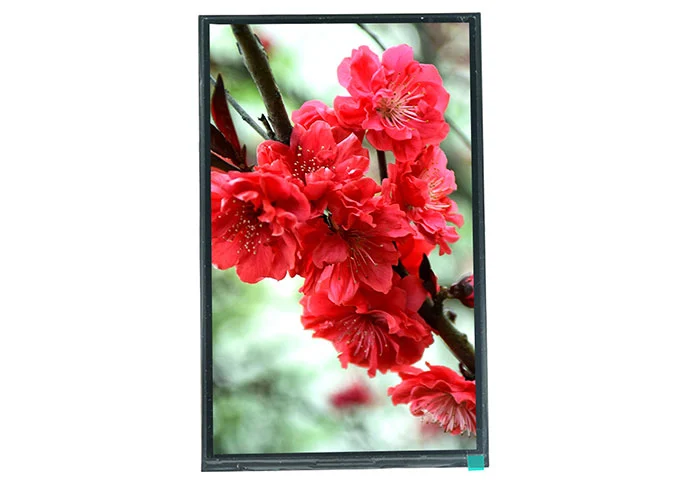

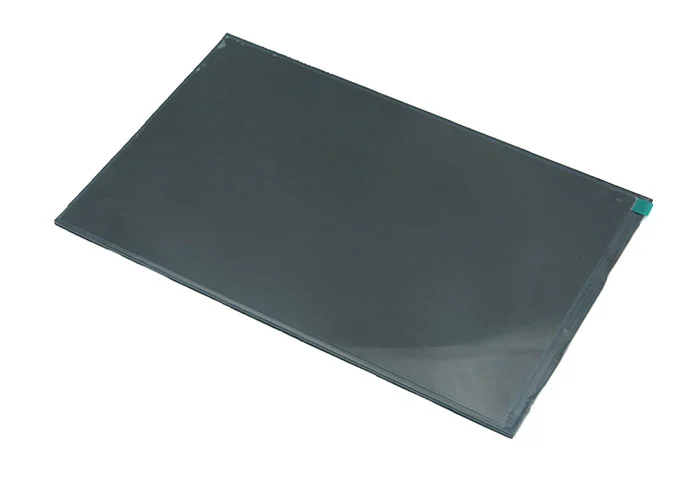

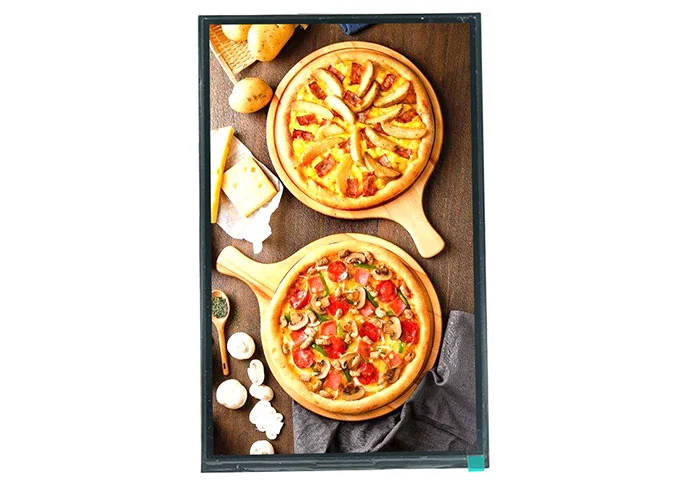

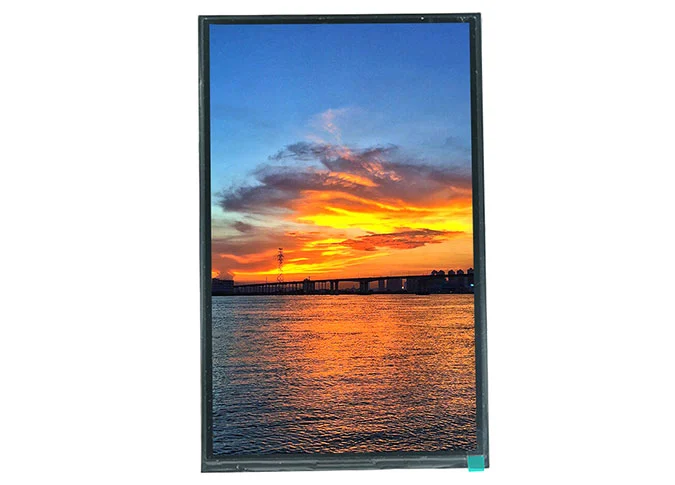

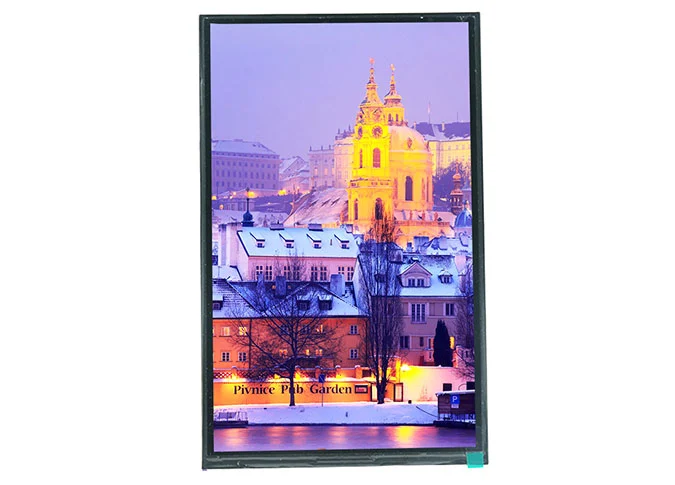

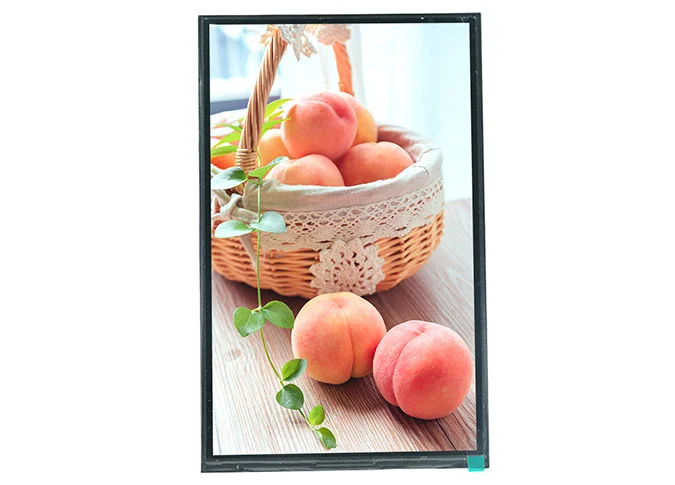

Z101027 800P 10,1 Zoll benutzer definierte LCD-Anzeige 800*1280 Auflösung MIPI-Schnitts telle

1

Display Size (Diagonal)

10.1

inch

2

Display Resolution

800 (H) × RGB × 1280 (V）

pixels

3

Pixel Pitch

56.4 (H)× 169.2 (V）

um

4

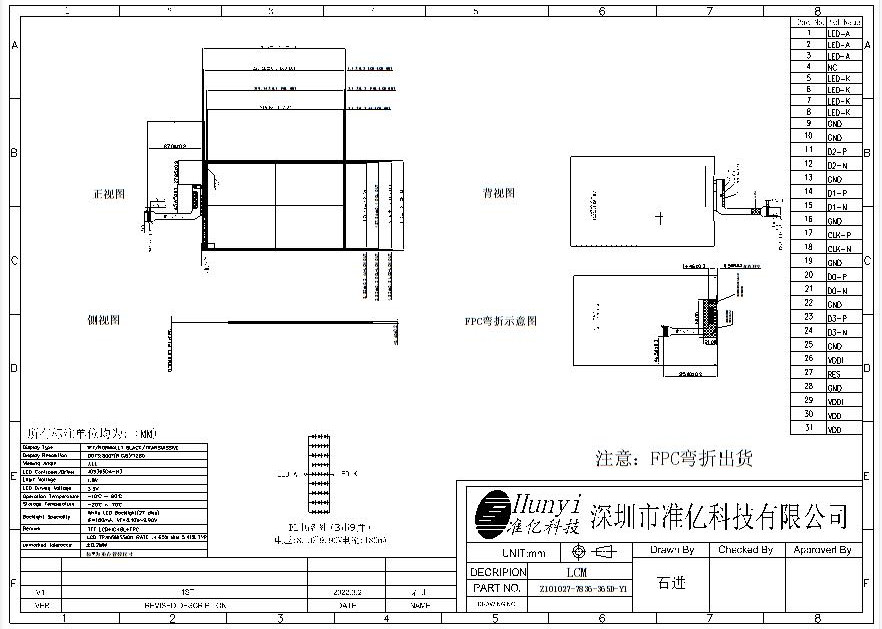

LCM Outline Dimension

(Without FPC）

143 (W) ×228.6 (H) ×2.63 (T)

mm

5

LCD Outline Dimension

139.36 (W) × 225.576 (H) × 0.8 (T)

mm

6

LCD Active Area

135.36 (W) ×216.58 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9365DA-H3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.41%; Min:4.65%

-

13

LCD Contrast Ratio

Typ.: 1000; Min:800

-

14

FPC Version

Z101027-7836 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-10°C~ 60°C

-

17

Storage Temperature

-20°C~ 70°C

-

18

Backlight Arrangement

LED/3 Series 9 Parallel (27 lights in total)

-

19

Luminance

330

nit

20

Weight

0.176

kg

1-3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4

NC

No Connection

5-8

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

9-10

GND

Ground

11

D2P

Positive MIPI differential data input

12

D2N

Negative MIPI differential data input

13

GND

Ground

14

D1P

Positive MIPI differential data input

15

D1N

Negative MIPI differential data input

16

GND

Ground

17

CLKP

Positive MIPI differential CLOCK input

18

CLKN

Negative MIPI differential CLOCK input

19

GND

Ground

20

D0P

Positive MIPI differential data input

21

D0N

Negative MIPI differential data input

22

GND

Ground

23

D3P

Positive MIPI differential data input

24

D3N

Negative MIPI differential data input

25

GND

Ground

26

VDDI

I/O POWER SUPPLY

27

RES

LCM RESET PIN

28

GND

Ground

29

VDDI

I/O POWER SUPPLY

30-31

VDD

POWER SUPPLY

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
