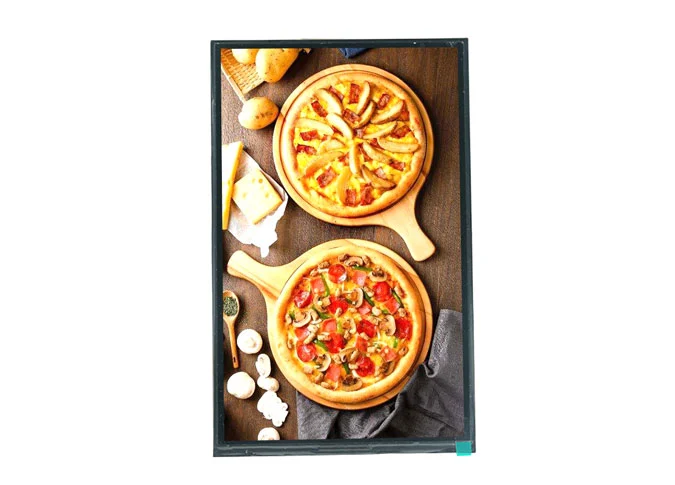

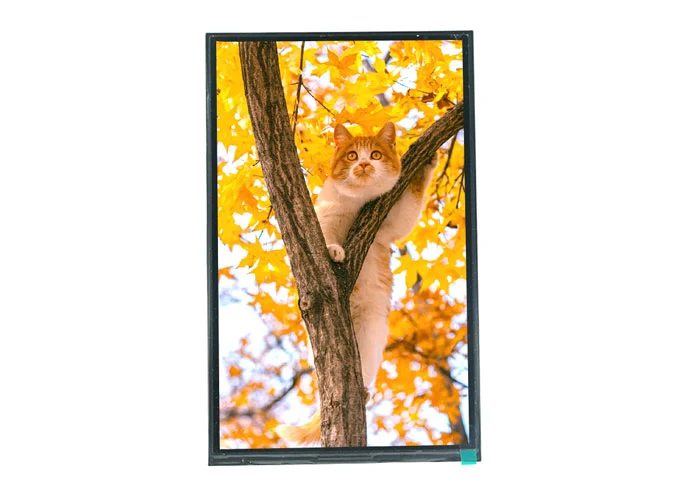

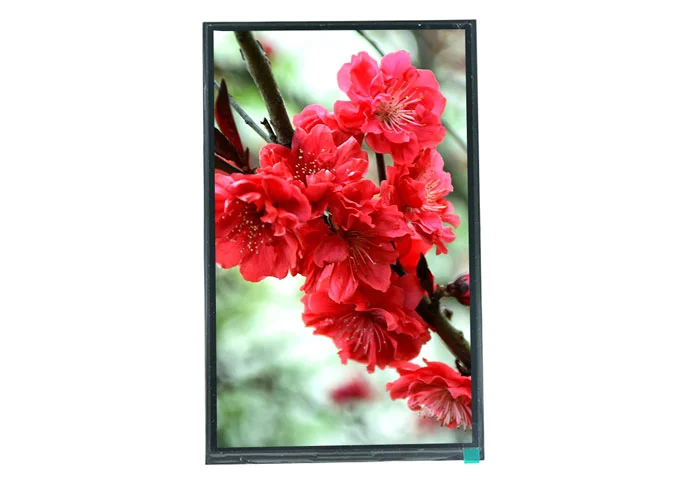

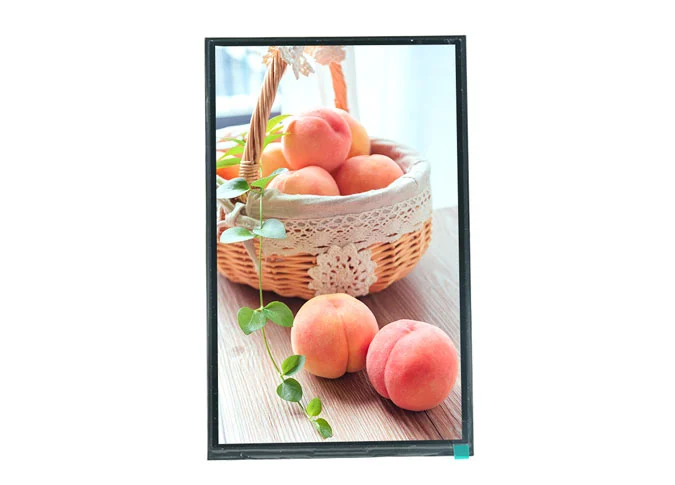

Z101024 10,1 Zoll IPS LCD-Display 800*1280 31PIN MIPI-Schnitts telle

1

Display Size (Diagonal)

10.1

inch

2

Display Resolution

800 (H） × RGB × 1280 (V）

pixels

3

Pixel Pitch

56.4 (H）× 169.2 (V）

um

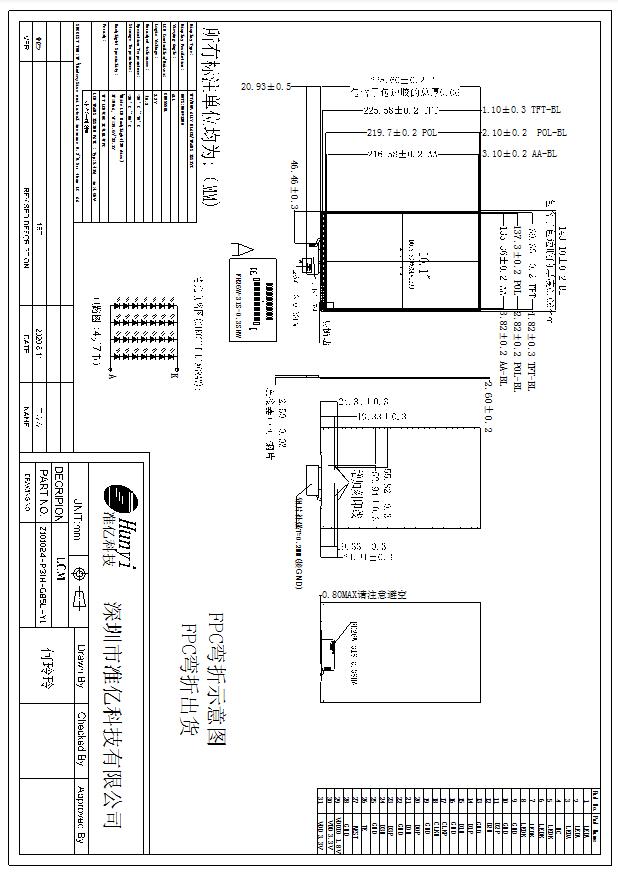

4

LCM Outline Dimension

(Without FPC）

143.10 (W) ×228.60 (H) ×2.6 (T)

mm

5

LCD Outline Dimension

139.36 (W) × 225.80 (H) × 0.8 (T)

mm

6

LCD Active Area

135.36 (W) ×216.58 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

GH8555BL

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.41% Min: 4.65%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z101024-P31H V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/7 Series 4 Parallel (28 lights in total)

-

19

Luminance

TBD

nit

20

Weight

TBD

kg

1-3

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

4

NC

No Connection

5-8

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

9-10

GND

Ground

11

D2P

Positive MIPI differential data input

12

D2N

Negative MIPI differential data input

13

GND

Ground

14

D1P

Positive MIPI differential data input

15

D1N

Negative MIPI differential data input

16

GND

Ground

17

CLKP

Positive MIPI differential CLOCK input

18

CLKN

Negative MIPI differential CLOCK input

19

GND

Ground

20

D0P

Positive MIPI differential data input

21

D0N

Negative MIPI differential data input

22

GND

Ground

23

D3P

Positive MIPI differential data input

24

D3N

Negative MIPI differential data input

25

GND

Ground

26

TE

Tearing Effect PIN

27

REST

LCM RESET PIN

28

GND

Ground

29

VDDIO

I/O POWER SUPPLY(1.8V)

30-31

VDD

POWER SUPPLY(3.3V)

RESET voltage should be consistent with VDDIO voltage, or there probably is black screen fault when power on.
