Größe: 0,96 "bis 15,6"
Schnitts telle: IIC, USB
Struktur: G G, G FF, P G
Oberflächen handwerk: AR, AF, AG, AS
Bonding: Luft oder OCA
Berührung: Mehrpunkt-Touch

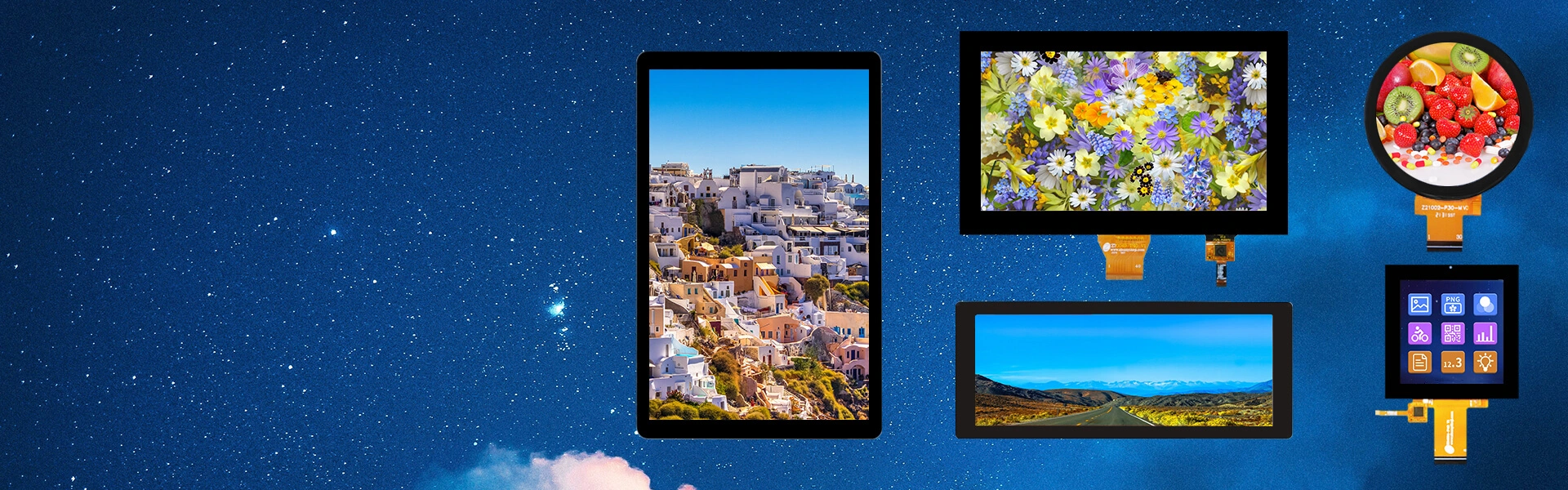

Das kapazitive Touchscreen-Panel von Zhunyi ist eine Art von Display, bei dem ein menschlicher Stroms ensor verwendet wird. Es gibt verschiedene Arten von kapazitiven Touch-Panel-Struktur, G G, G FF, P G. Je nach Anwendung des Touchscreens verwendet das kapazitive Touch panel AR-, AF-, AG-oder AS-Oberflächen fahrzeuge. IIC und USB sind zwei beliebte Schnitts telle. Es gibt zwei Verbindungs wege, Luft bindung und OCA-Bindung.
TFT LCD-kapazitiver Touchscreen ist weit verbreitet in Smartphone, Laptop, Smart Home, Industrie, Medizin, Bildung, Landwirtschaft, Flugzeug, POS, Verkaufs automat, Uhr, Fahrzeug, visuelle Türklingel, navigation und so weiter.
Size(inch) | Resolution | Model | Outline Dimension(mm) | Active Area(mm) | View Angle | Interface | Luminance(nits) | Touch Screen | OP(℃) |
| 1.28 | 240*240 | Z13006-ZC | 42*42*3.35 | 32.4*32.4 | IPS | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 1.3 | 240*240 | Z13002-ZC | 26.17*29.22*1.5 | 23.4*23.4 | IPS | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 1.3 | 240*240 | Z13008-ZC | 26.2 *9.22 *2.44 | 23.4*23.4 | IPS | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 1.3 | 240*240 | Z154001-ZC | 31.50 *35.0*1.91 | 27.72*27.72 | IPS | SPI/I2C | / | CTP | -20℃~70℃ |
| 1.7 | 240*280 | Z17001-ZC | 33.23*43.65*3.63 | 27.97*32.63 | IPS | SPI/I2C | 500 | CTP | -20℃~70℃ |
| 2.1 | 480*480 | Z21002ZC | 53.28*53.28 | IPS | MIPI/I2C | 300 | CTP | -20℃~70℃ | |
| 2.8 | 240*320 | Z28001-ZC | 49.94* 71* 3.65 | 43.2 * 57.6 | IPS | MCU/I2C | 350 | CTP | -20℃~70℃ |
| 2.8 | 240*320 | Z28003-ZC | 49.94*71*4.09 | 43.2*57.6 | TN | SPI/I2C | 300 | CTP | -20℃~70℃ |
| 2.8 | 480*480 | Z28008-ZC | 73.03*76.58*2.74 | 70.13*70.13 | IPS | MIPI/I2C | 300 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30010-ZC | 49.80*85.10*4.03 | 37.44*66.61 | IPS | SPI+RGB/I2C | 450 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30063-ZC | 43.50*90.5*3.14 | 37.44*66.61 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30070-ZC | 46.40*78.574*3.95 | 37.44*66.61 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3 | 480*854 | Z30071-ZC | 42.70*74.70*2.45 | 37.44*66.61 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3.4 | 480*480 | Z34004-ZC | 65.72*69.64*2.45 | 60.48*60.48 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3.5 | 320*240 | Z35008-ZC | 76.78*63.74*3.20 | 70.08*52.56 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 3.5 | 320*480 | Z35015-ZC | 69.36*87.30*3.70 | 48.96*73.44 | IPS | MIPI/I2C | 250 | CTP | -20℃~70℃ |
| 3.5 | 320*480 | Z35017-ZC | 55.46 *83.94*4.25 | 48.96*73.44 | IPS | MCU/SPI+RGB | 250 | CTP | -20℃~70℃ |
| 3.5 | 480*800 | Z35032-ZC | 51.12*86.41*3.38 | 45.36*75.60 | IPS | SPI+RGB/I2C | 350 | CTP | -20℃~70℃ |
| 4 | 720*720 | Z40050-ZC | 84.8*84.8*3.85 | 71.928*71.928 | IPS | MIPI/I2C | / | CTP | -20℃~70℃ |
| 4 | 480*480 | Z40053-ZC | 84.8*84.8*3.8 | 71.856*70.176 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 4.3 | 480*272 | Z43016-ZC1 | 105.5*67.2*4.7 | 95.04*53.86 | IPS | RGB/I2C | 450 | CTP | -30℃~85℃ |
| 4.3 | 480*272 | Z43016-ZC2 | 105.5*67.2*4.75 | 95.04*53.86 | IPS | RGB/I2C | 450 | CTP | -30℃~85℃ |
| 4.3 | 480*272 | Z43026-ZC | 126.04*84.86*6.75 | 95.04*53.86 | IPS | RGB/I2C | 450 | CTP | -20℃~70℃ |
| 5 | 720*1280 | Z49406-ZC | 67.56*122.35*3.29 | 62.10*110.40 | IPS | MIPI/I2C | 380 | CTP | -20℃~70℃ |
| 5 | 720*1280 | Z49420-ZC | 69.74*125.53*3.18 | 63.72*113.28 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 5 | 720*1280 | Z49421-ZC | 67.56*122.35*3.28 | 63.72*113.28 | IPS | MIPI/I2C | 380 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55236-ZC | 80*143*3.62 | 68.04*120.96 | IPS | MIPI/I2C | 450 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55240-ZC | 79.24*129.66*3.68 | 68.04*120.96 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55290-ZC | 80*143*3.62 | 68.04*120.96 | IPS | MIPI/I2C | 420 | CTP | -20℃~70℃ |
| 5.5 | 720*1280 | Z55292-ZC | 80*143*3.62 | 68.04*120.96 | IPS | MIPI/I2C | 1200 | CTP | -20℃~70℃ |
| 5.7 | 640*480 | Z57011-ZC | 127.03*98.5*7.95 | 115.2*86.4 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 6.86 | 480*1280 | Z686006-ZC | 65.82*171.79*2.60 | 60.22*160.59 | IPS | 350MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 6.9 | 720*1440 | Z69001-ZC | 85.80*171.80*3.97 | 78.02*156.04 | IPS | MIPI/I2C | 450 | CTP | -20℃~70℃ |
| 7 | 600*1024 | Z70069-ZC | 164 *99*4.34 | 154.21*85.92 | IPS | RGB/I2C | 480 | CTP | -20℃~70℃ |
| 7 | 1024*600 | Z70078-ZC | 177.1*108.8*4.7 | 154.21*85.92 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 7 | 800*480 | Z70082-ZC | 165.4*104.59*7.53 | 152.40*91.44 | IPS | RGB/I2C | 350 | CTP | -20℃~70℃ |
| 7 | 1280*800 | Z70083-ZC | 161.0*107.0*2.5 | 149.76*93.6 | IPS | LVDS/I2C | 1000 | CTP | -20℃~70℃ |
| 7 | 1024*600 | Z70103-ZC | 164.86*99.96*4.995 | 154.21*85.92 | IPS | RGB/I2C | 370 | CTP | -20℃~70℃ |
| 7 | 720*1280 | Z70085-ZC | 97.80*235.35*4.15 | 86.94*154.56 | IPS | MIPI/I2C | 330 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80015-ZC | 121.43*220.85*4.71 | 107.64*172.22 | IPS | MIPI/I2C | 280 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80017-ZC | 127*95*199.1*4.45 | 107.64*172.22 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80026-ZC2 | 137.47*198.20*4.66 | 107.64*172.22 | IPS | MIPI/I2C | 620 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80029-ZC | 121.84*198.34*3.87 | 107.64*172.224 | IPS | MIPI/I2C | 380 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80032-ZC | 137.47*198.*4.66 | 107.64*172.224 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 8 | 800*1280 | Z80033-ZC | 121.84*198.34*4.26 | 107.64*172.224 | IPS | MIPI/I2C | 400 | CTP | -20℃~70℃ |
| 8 | 1280*800 | Z80036-ZC | 132.6*193.6*3.8 | 172.22*107.64 | IPS | LVDS/I2C | 330 | CTP | -20℃~70℃ |
| 10.1 | 800*1280 | Z101020-ZC | 167.36*248.58*4.95 | 135.36*216.58 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 10.1 | 800*1280 | Z101028-ZC3 | 159.20*244.90*2.85 | 135.36*225.60 | IPS | MIPI/I2C | 350 | CTP | -20℃~70℃ |
| 10.1 | 800*1280 | Z101029-ZC2 | 143.05*228.55*2.60 | 135.36*216.58 | IPS | MIPI/I2C | 500 | CTP | -20℃~70℃ |
| 10.1 | 1280*800 | Z101033-ZC | 228.6*149.2*3.0 | 216.96*135.6 | IPS | LVDS/I2C | 400 | CTP | -20℃~70℃ |
Responsive Touch Sensing: TFT capacitive touch screens are highly responsive to touch, enabling smooth and accurate interactions. This feature enhances user experiences and ensures precise input recognition.
Multi-Touch Support: These multi-point touch panels support multi-touch gestures, allowing users to perform actions like pinch-to-zoom and swipe effortlessly. Multi-touch functionality enhances the versatility and functionality of the device.
Excellent Clarity and Color Accuracy: TFT (Thin-Film Transistor) technology provides vibrant colors and excellent clarity, making the display visually appealing. This is crucial for applications where color accuracy and image quality are paramount.
Durability: Capacitive touch screen panels are known for their durability. They are resistant to wear and tear, ensuring a longer lifespan, making them ideal for devices exposed to frequent use.
No Pressure Required: Unlike resistive touch screen, which require pressure for input recognition, LCD capacitive screens respond to the slightest touch. This light touch operation reduces user fatigue and provides a more natural interaction.
Widespread Application: Capacitive touchscreen displays are versatile and suitable for a wide range of applications, including smartphones, tablets, POS systems, industrial control panels, and interactive kiosks.
TFT-kapazitive Touchscreens sind die Standard auswahl für moderne Smartphones und Tablets, mit denen Benutzer nahtlos navigieren und mit ihren Geräten interagieren können.
In industriellen Umgebungen werden diese kapazitiven TFT-Touchscreens zur Steuerung und Überwachung von Maschinen verwendet und bieten eine robuste und zuverlässige Schnitts telle für Bediener.
TFT-kapazitive Bildschirme werden in verschiedenen medizinischen Geräten verwendet, einschl ießlich Patienten überwachungs systemen, Diagnose geräten und medizinischen Tabletten, um eine genaue Eingabe und Benutzer freundlich keit zu gewährleisten.
Smart-Home-Bedienfelder und-Geräte verwenden kapazitive Oberflächen-Touchscreens, damit Hausbesitzer Beleuchtung, Sicherheit und andere Hausa utomations systeme verwalten können.
Kapazitive Touchscreens werden in Spiel automaten verwendet, von Spiel automaten in Casinos bis hin zu interaktiven Arcade-Spielen.
Im Einzelhandel und im Gastgewerbe werden kapazitive Touchscreen-Displays in Kassen systeme integriert, um Transaktionen zu rationalisieren und den Kunden service zu verbessern.
Zhunyi Technologie achtet auf die Qualität und den Service. Willkommen, um uns zu besuchen und Hände für eine erfolgreiche Zukunft zu verbinden.
